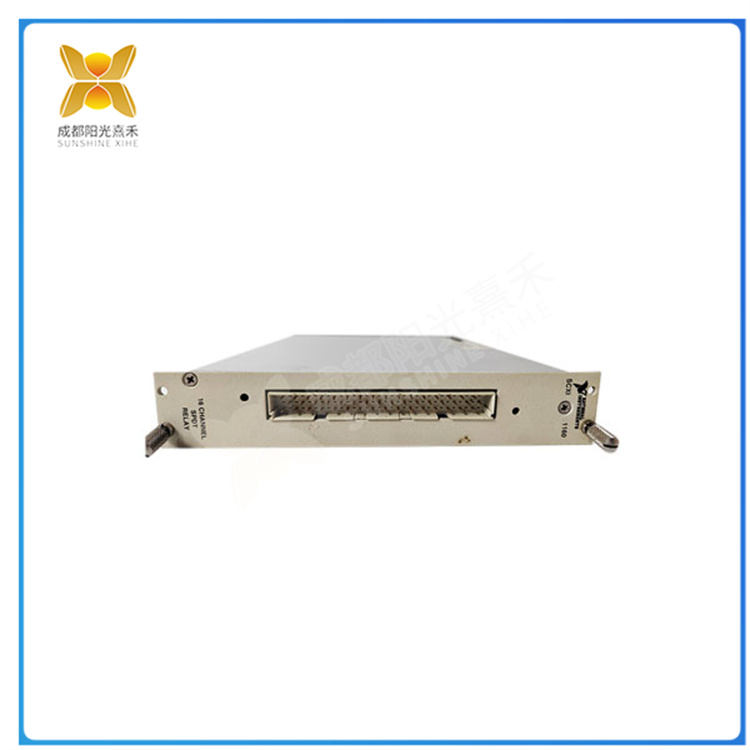

NI SCXI-1160 （部件号 ： 776572-60） 通用 开关 模 块 具有 16 个 独立 SPDT C 型 机电 锁存 继电器， 具有 极低 的 导通 电阻 和 热 偏移。该模块的继电器能够切换、路由和控制中级信号。SCXI 1160 开关模块的最大开关速率为每秒 50 次操作，完全可通过软件编程。该模块的开关容量在 2 VRMS 时为 250 A，在 2 VDC 时为 30 A。NI SCXI-1160 可 与 NI MIO-16 板 配合 使用;Lab-NB、Lab-PC、Lab-PC+、Lab-LC 和 PC-LPM-16 板，以及 DIO-24、DIO-32F 和 DIO-96 板。该器件的继电器工作时间为10 ms，失调电压为3 μV。使用SCXI-1160模块的一个优点是可以在一个或多个机箱中使用多个模块，从而能够控制和切换数千个信号。当 SCXI 1160 与 SCXI 机箱一起使用时，机箱可以在多种类型的应用中用作控制器或交换机，例如工业过程监控、生产测试和实验室测试。
SCXI-1160
该 设备 使用 NI- SWITCH 驱动 程序 软件 运行， 该 软件 与 LabVIEW 和 LabWindows/ CVI等 软件包 兼容。 NI SCXI-1160 继电器 开关 模 块 上 有 五 个 跳线。首先，跳线 W1 将上拉电阻连接到背面信号连接器上的 SERDATOUT 信号。跳线 W2、W3 和 W4 表示 SCXI-1160 是要连接到 DIO 板还是 MIO 板。如果 SCXI 1160 没有任何东西连接到背面信号连接器，则这些跳线的布置无关紧要。最后，跳线 W5 将 SCXI 总线 MISO 线路在缓冲后传输到背面信号连接器上的 SERDATOUT 信号。当继电器触点上存在高电压时，此继电器开关模块无法访问模拟背板，以保护背板免受故障影响。NI 仪器 的 尺寸： 1.2 x 6.8 x 8.0 英寸。
SCXI-1160
The NI SCXI-1160 (part number: 776572-60) universal switch module features 16 independent SPDT C-type electromechanical latch relays with extremely low conduction resistance and thermal offset. The relay of this module can switch, route, and control intermediate signals. The maximum switching rate of the SCXI 1160 switch module is 50 operations per second, which is fully programmable through software. The switch capacity of this module is 250 A at 2 VRMS and 30 A at 2 VDC. NI SCXI-1160 can be used in conjunction with NI MIO-16 boards; Lab-NB, Lab-PC, Lab-PC+, Lab-LC, and PC-LPM-16 boards, as well as DIO-24, DIO-32F, and DIO-96 boards. The relay of this device has a working time of 10 ms and an offset voltage of 3 μ V. One advantage of using the SCXI-1160 module is that multiple modules can be used in one or more chassis, enabling the control and switching of thousands of signals. When used together with SCXI chassis, the chassis can be used as a controller or switch in various types of applications, such as industrial process monitoring, production testing, and laboratory testing
SCXI-1160
This device runs using the NI – SWITCH driver software, which is compatible with software packages such as LabVIEW and LabWindows/CVI. There are five jumpers on the NI SCXI-1160 relay switch module. Firstly, jumper W1 connects the pull-up resistor to the SERDATOUT signal on the back signal connector. Jumpers W2, W3, and W4 indicate whether SCXI-1160 is to be connected to the DIO board or MIO board. If there is nothing connected to the back signal connector of SCXI 1160, the arrangement of these jumpers is irrelevant. Finally, jumper W5 buffers the SCXI bus MISO line and transmits it to the SERDATOUT signal on the back signal connector. When there is high voltage on the relay contacts, this relay switch module cannot access the analog backplane to protect it from faults. The size of the NI instrument is 1.2 x 6.8 x 8.0 inches.
SCXI-1160
