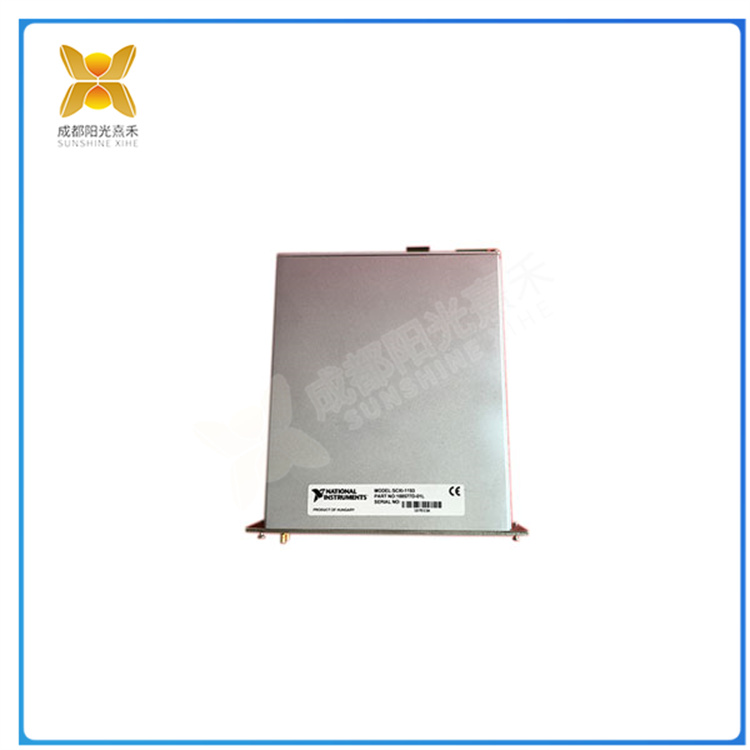

这镍SCXI1-1193(零件号:776572-93)是高密度的，32通道RF多路复用器开关模块，可安排为未端接多路复用器、外部端接多路复用器或维度通用的稀疏矩阵。每种配置都能承受从DC到500 MHz以上的信号频率。该模块有一个插槽，并利用高密度推进式MCX连接器进行离散但易于管理的布线。该模块不能将信号导向高压模拟总线。这SCX1-1193是为了与高频设备集成而创建的，包括PXI-5404频率发生器和PXI-5112高速数字化仪。SCXI1193可实现以下拓扑结构;四路8×1多路复用器、四路4×1端接多路复用器、双路16×1多路复用器、双路8×1端接多路复用器、32×1多路复用器、16×1端接多路复用器和独立模块。这射频多路复用器开关模块可用于多种不同的电缆。
SCXI-1193
这些电缆包括MCX-MCX电缆、MCX-BNC电缆、MCX-SMB电统或MCX-SMA电筑。每根电缆都有0.3米或1.0米长。还有一个50欧姆的MCX终端可用。当50欧姆MCX终端位于32个通道的一半时,用户可以将该模块用作端接多路复用器。该器件的DC功率要求为:50毫安时为+5伏直流电，170毫安时为+18.5伏至+25伏直流电，170毫安时为-18.5伏至-25伏直流电。这NI SCXI-1193模块有36个用于I/O连接器的MCX插孔，2个用于触发连接器的SMB插孔，由银钯和金制成的继电器，最大扫描速率为每秒100次操作。该装置为机电闭锁继电器类型。
SCXI-1193
This nickel SCXI1-1193 (part number: 776572-93) is a high-density, 32-bit RF multiplexer switch module that can be arranged as an unterminated multiplexer, an externally terminated multiplexer, or a dimensionally universal sparse matrix. Each configuration can withstand signal frequencies from DC to over 500 MHz. This module has a slot and utilizes high-density push on MCX connectors for discrete but easy to manage wiring. This module cannot direct signals to the high-voltage analog bus. This SCX1-1193 was created for integration with high-frequency devices, including the PXI-5404 frequency generator and PXI-5112 high-speed digitizer. SCXI1193 can achieve the following topology structures; Four way 8×1 multiplexer, four way 4×1 terminated multiplexer, dual 16 × 1 multiplexer, dual 8 × 1 terminal multiplexer, 32×1 multiplexer, 16 × 1. Terminate multiplexers and independent modules. This RF multiplexer switch module can be used for various types of cables.
SCXI-1193
These cables include MCX-MCX cables, MCX-BNC cables, MCX-SMB electrical systems, or MCX-SMA electrical buildings. Each cable has a length of 0.3 meters or 1.0 meters. There is also a 50 ohm MCX terminal available. When the 50 ohm MCX terminal is located in half of the 32 channels, users can use this module as a termination multiplexer. The DC power requirements for this device are:+5 V DC at 50 mA,+18.5 V to+25 V DC at 170 mA, and -18.5 V to -25 V DC at 170 mA. This NI SCXI-1193 module has 36 MCX sockets for I/O connectors, 2 SMB sockets for triggering connectors, and a relay made of silver palladium and gold, with a maximum scanning rate of 100 operations per second. This device is of the electromechanical locking relay type.
SCXI-1193
