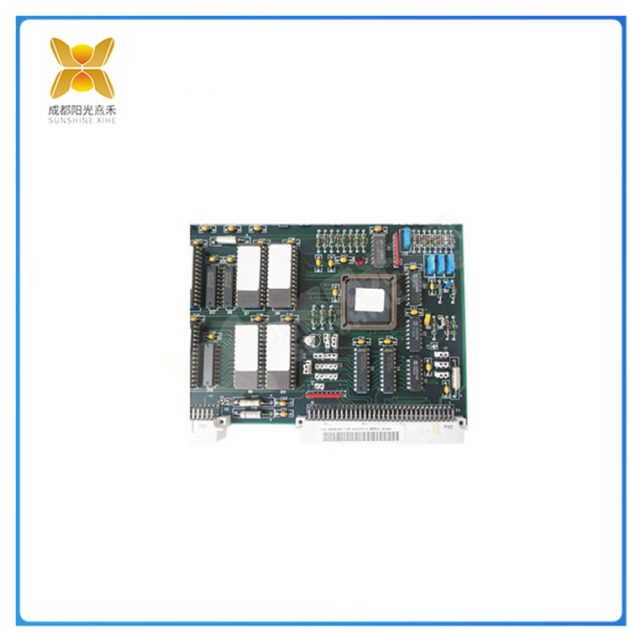

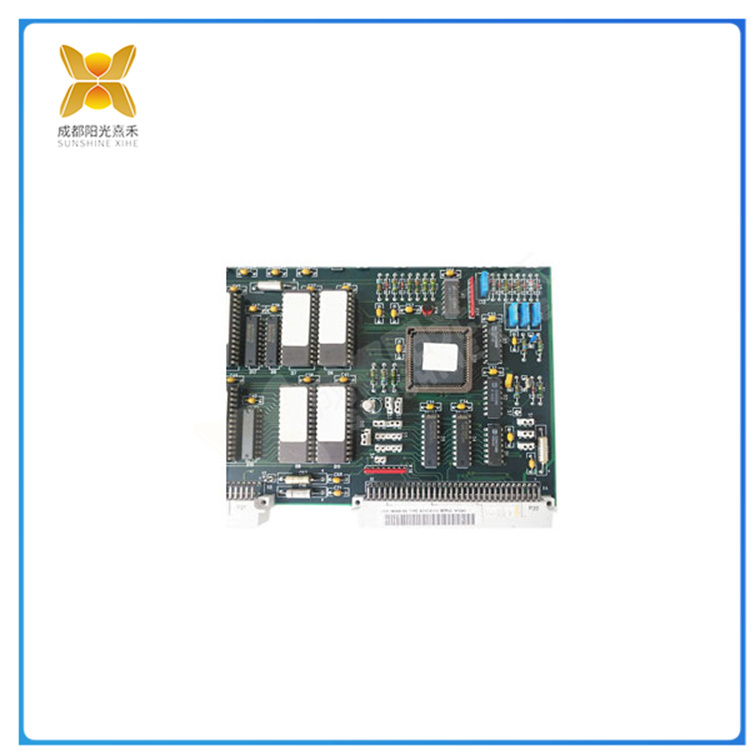

ABB SCYC51010 58052515G脉冲板一般是用在开关电源里的，他的作用其实和普通变压器是一样的，都是给交流电变压，不同的是普通变压器变压的是正弦波而脉冲变压器变压的是有一定或可调占空比的方波(可以理解为脉冲信号)，目前常用的PWM信号即脉宽调制信号。至于是不是变压锯齿波我似乎听说过但没有接触过。脉冲变压器变压的信号要比不同电源变压器的频率高的多，一般为10K–100kHZ,而普通电源变压器为50HZ。这样脉冲变压器的效率就要比普通变压器高得多，体积亦可以小很多，体积可以缩小–这就是开关电源比线性电源（普通电源变压器的电源）优越的特点之一。把正弦波变成脉冲波输出的不是脉冲变压器而是变压器前端的控制电路。他通过把PWM信号把被滤波整流成直流的市电调制成高频的脉宽电压，通过脉冲变压器变压，然后通过滤波整流把变压后的脉宽电压变成直流。
SCYC51010-58052515G
—些关于ABB SCYC5101058052515G电流变送器的可能用途:电力系统·监测:这种电流变送器可用于监测电力系统中的电流流向和负载情况，以确保电网的稳定性和可靠性。电机控制Q︰在工业自动化中，它可以用于监测电动机的电流，以确保电机运行正常并执行所需的任务。电能计量:在电能计量和电力监测应用中，它可以用于测量电流，以计算能耗和电费。电力分配:在电力分配设备中，它可以用于监测电流并确保电力分配过程的安全性和效率。故障检测:通过监测电流的变化，该电流变送器可以用于检测设备或电路中的故障和异常情况。控制系统:在自动化和控制系统中，它可以用作反馈装置，以实现电流相关的控制和调节。
SCYC51010-58052515G
ABB SCYC51010 58052515G pulse board is generally used in switching power supplies. Its function is actually the same as that of a regular transformer, which is to transform AC power. The difference is that a regular transformer transforms a sine wave, while a pulse transformer transforms a square wave with a certain or adjustable duty cycle (which can be understood as a pulse signal). Currently, the commonly used PWM signal is a pulse width modulation signal. As for whether it is a variable voltage sawtooth wave, I seem to have heard of it but have not been exposed to it. The frequency of the signal transformed by pulse transformers is much higher than that of different power transformers, generally ranging from 10K to 100kHz, while that of ordinary power transformers is 50Hz. In this way, the efficiency of pulse transformers is much higher than that of ordinary transformers, and their volume can also be much smaller, which is one of the advantages of switching power supplies over linear power supplies (power supplies of ordinary power transformers). The output of converting a sine wave into a pulse wave is not a pulse transformer, but a control circuit at the front end of the transformer. He adjusts the filtered and rectified PWM signal into a high-frequency pulse width voltage by converting it into direct current. The voltage is transformed through a pulse transformer, and then the transformed pulse width voltage is converted into direct current through filtering and rectification
SCYC51010-58052515G
Possible uses of ABB SCYC5101058052515G current transmitter: Power system monitoring: This current transmitter can be used to monitor the current flow and load situation in the power system to ensure the stability and reliability of the power grid. Motor control Q: In industrial automation, it can be used to monitor the current of the motor to ensure its normal operation and perform the required tasks. Electricity metering: In electricity metering and monitoring applications, it can be used to measure current, calculate energy consumption and electricity bills. Power distribution: In power distribution equipment, it can be used to monitor current and ensure the safety and efficiency of the power distribution process. Fault detection: By monitoring changes in current, this current transmitter can be used to detect faults and abnormal situations in equipment or circuits. Control system: In automation and control systems, it can be used as a feedback device to achieve current related control and regulation
