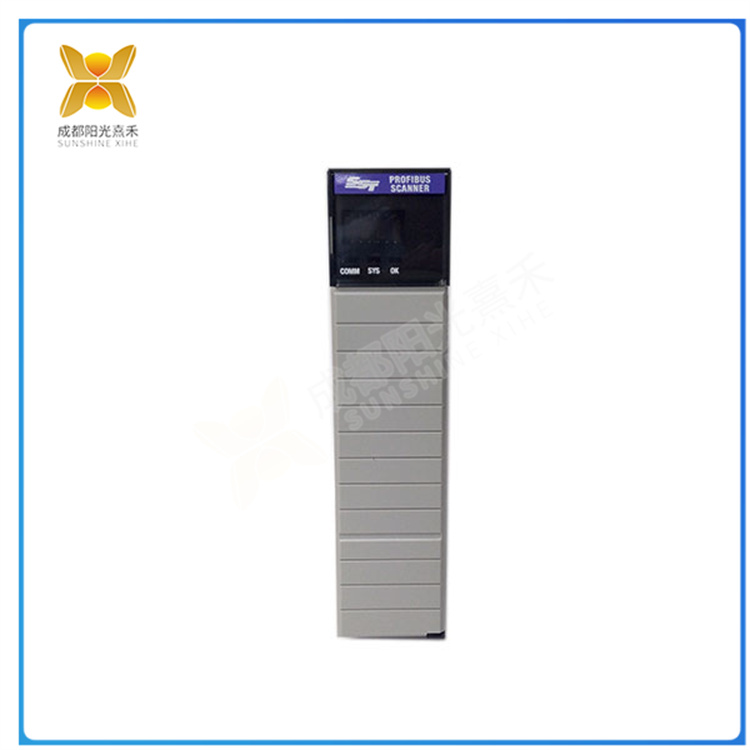

SST-PB3-CLX-RLL 模块是一种底盘模块，与 Allen-Bradley 的 ControlLogix 系列结合使用。该机箱模块由 Molex 设计和制造。为了进行通信，该模块配备了带有 9 个引脚的 PROFIBUS D-sub 母头模块。SST-PB3-CLX-RLL 模块重 430 克。该模块是用于Allen-Bradley 1756背板系统和霍尼韦尔PlantScape系统的PROFIBUS扫描仪。它有助于启用 CLX 处理器和位于 PROFIBUS 网络上的远程 I/O 设备之间的通信链路。该模块可以使用 SST PROFIBUS 配置工具进行配置和编程。此工具有助于配置网络上的 I/O。输入和输出数据映射到 ControlLogix 5550 控制器的 I/O 数据阵列中。它还显示连接状态以及模块正常运行期间可能发生的任何故障。LCD 面板下方是 3 个 LED 指示灯，显示模块的通信、SYS 和 OK 状态。COMM LED 指示网络健康状态，SYS LED 指示 PROFIBUS 主站的健康状态，它还扫描处于 RUN 模式的所有从设备，OK LED 指示模块初始化是否完成以及模块是否已准备好运行。SST-PB3-CLX-RLL 模块的工作温度范围在 0 到 60 摄氏度之间。
SST-PB3-CLX
SST-PB3-CLX-RLL 是一款 Profibus 扫描器模块，可与 1756 ControlLogix 自动化平台或霍尼韦尔 PlantScape 控制系统兼容。该模块由罗克韦尔自动化的合作伙伴公司 Molex 制造。SST-PB3-CLX-RLL 是一个单插槽模块，可直接安装到 1756 机箱的任何可用插槽。单个机架中最多可安装八 （8） 个模块，从而实现 Logix 处理器和 Profibus DP 从设备之间的通信。它具有一 （1） 个 9 针子 D 连接器，支持多达 125 个 DP 从设备通信。该模块支持9600、19200、31.25k、45.45k、93.75k、187.5k、500k、1.5M、3M、6M和12M波特等Profibus网络的标准传输速度。此外，该模块可以使用多个Profibus主站和从站操作，利用上述传输速度。
SST-PB3-CLX
The SST-PB3-CLX-RLL module is a chassis module used in conjunction with Allen Bradley’s ControlLogix series. The chassis module is designed and manufactured by Molex. For communication purposes, this module is equipped with a PROFIBUS D-sub female module with 9 pins. The SST-PB3-CLX-RLL module weighs 430 grams. This module is a PROFIBUS scanner for the Allen Bradley 1756 backplane system and the Honeywell PlantScape system. It helps to enable the communication link between the CLX processor and remote I/O devices located on the PROFIBUS network. This module can be configured and programmed using the SST PROFIBUS configuration tool. This task helps to configure I/O on the network. Input and output data are mapped to the I/O data array of the ControlLogix 5550 controller. It also displays the connection status and any faults that may occur during normal module operation. Below the LCD panel are three LED indicators that display the communication, SYS, and OK status of the module. The COMM LED indicates the network health status, the SYS LED indicates the health status of the PROFIBUS master station, and it also scans all slave devices in RUN mode. The OK LED indicates whether the module initialization is complete and whether the module is ready to run. The operating temperature range of the SST-PB3-CLX-RLL module is between 0 and 60 degrees Celsius
SST-PB3-CLX
SST-PB3-CLX-RLL is a Profibus scanner module that is compatible with the 1756 ControlLogix automation platform or Honeywell PlantScape control system. This module is manufactured by Molex, a partner company of Rockwell Automation. The SST-PB3-CLX-RLL is a single slot module that can be directly installed into any available slot in the 1756 chassis. A maximum of eight (8) modules can be installed in a single rack to enable communication between Logix processors and Profibus DP slaves. It has one (1) 9-pin sub D connector that supports communication with up to 125 DP slave devices. This module supports standard transmission speeds for Profibus networks such as 9600, 19200, 31.25k, 45.45k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, and 12M baud. In addition, the module can operate using multiple Profibus master and slave stations, utilizing the aforementioned transmission speeds.
SST-PB3-CLX
