T8800C系列应用扩展器处理器三重冗余ICS系统控制模块位于扩展器机箱左边的处理器插槽，并提供接口在扩展器和控制器机箱之间。该模块具有容错性具有HIFT TMR架构。诊断、监控和测试提供了快速的故障识别。备用模块配置为支持，允许自动和手动修复策略。扩展器处理器模块连接到扩展器接口模块通过扩展器接口热链路电缆TC-301通过扩展器接口适配器单元T8312。数据传输速率为250Mbps。扩展器处理器模块的内部电压来自通过模块连接器从扩展机箱背板。扩展器处理器模块状态LED状态及其含义如下：LED指示三个LED，三个切片各一个，指示整个每个切片的健康状况。

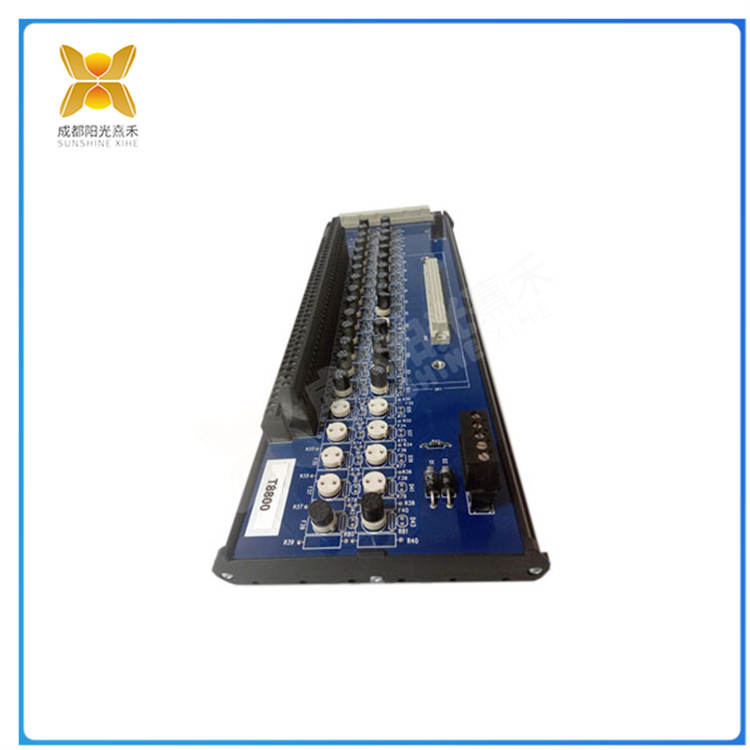

T8800
稳定的绿色-健康的切片。闪烁红色-对应切片中的故障。当模块处于模式时，待机当模块处于待机模式时，保持绿色。TxRx公司三个LED，三个通道各一个，指示每个处理器通道上的通信活动。当模块处于活动状态时：绿色-接收活动红色-传输活动（当两者同时出现时，LED将显示为琥珀色正在进行接收和发送活动）关闭-无活动或失败当模块处于待机状态时，不会有传输活动（红色LED）被观察到。通信电缆用于连接控制器和扩展器组件。显示了TC-301通信电缆。左侧的大引擎盖连接器是金属的，双宽，连接到扩展器机箱及其扩展器处理器（T8310）的背面。右侧的小连接器连接到扩展器接口适配器（T8312），该适配器是连接到扩展器接口（T8311）的后部
T8800
The T8800C series application extender processor triple redundant ICS system control module is located in the processor slot on the left side of the extender chassis and provides an interface between the extender and controller chassis. This module has fault tolerance and HIFT TMR architecture. Diagnosis, monitoring, and testing provide fast fault identification. The backup module is configured to support automatic and manual repair strategies. The expander processor module is connected to the expander interface module through the expander interface hot chain cable TC-301 and the expander interface adapter unit T8312. The data transmission rate is 250Mbps. The internal voltage of the expander processor module comes from the expansion chassis backplane through the module connector. The status LED of the expander processor module and its meaning are as follows: LED indicates three LEDs, one for each of the three slices, indicating the health status of each slice as a whole
T8800
Stable green – healthy slices. Flashing red – corresponds to the fault in the slice. When the module is in standby mode, it remains green. TxRx has three LEDs, one for each of the three channels, indicating communication activity on each processor channel. When the module is in an active state: green – receive activity red – transmit activity (when both appear at the same time, the LED will display amber for receive and send activity) off – no activity or failure When the module is in standby mode, no transmit activity (red LED) will be observed. The communication cable is used to connect the controller and expander components. The TC-301 communication cable is shown. The large hood connector on the left is metal, double wide, and connects to the back of the expander chassis and its expander processor (T8310). The small connector on the right is connected to the extender interface adapter (T8312), which is connected to the rear of the extender interface (T8311)
