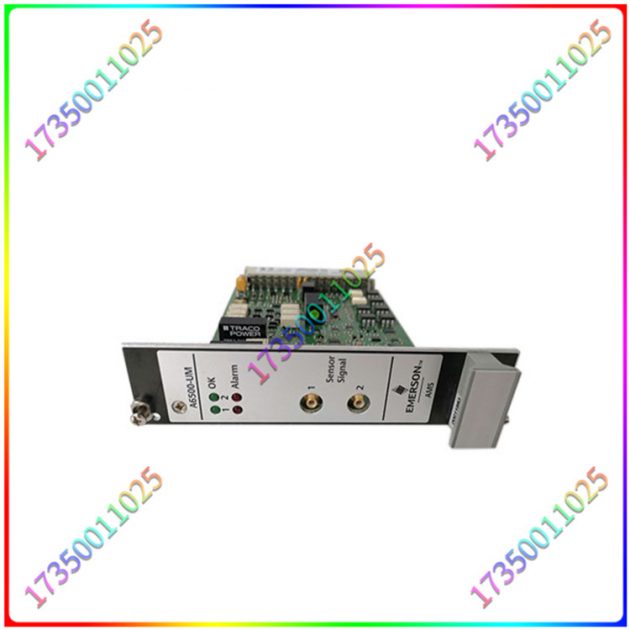

EMERSON A6500-UM 通用型监测模块可以对其所在框架内任意一个测量

EMERSON A6500-UM通用型监测模块A6500-UM框架A6500-SR继电器A6500-RC通讯A6500-CC组成系统通用型监测模块A6500-UM一种卡件可以进行轴振/瓦振/轴位移/胀差/偏心/转速/键相等监测A6500-UM模块配置灵活，2个通道可以接入不同类型的传感器，分别监测，例如: 1通道测轴振，2通道测轴位移；1通道测胀差，2通道测偏心将原有MMS6000监测模块升级为CSI6500ATG系统监测卡件单一化，配置灵活,可以大大降低备品备件数量，节约成本。将原有框架替换为最新的系统框架A6500-SR，该框架为背板式框架，接线简单明了，日常维护极其方便升级后的ATG框架专门设计了A6500-RC继电器模块。

A6500-UM

EMERSON A6500-UM 通用型监测模块，该模块可以对其所在框架内任意一个测量模块的监测参量进行“与”、“或”、非”、“与与或”、“三取二”等多重逻辑运算并发出一组开关量信号，该继电器模块有16路开关量输出。逻辑上的修改更方便，简洁。用户只需要通过软件操作即可升级后的A6500-SR框架内配有A6500-CC通讯模块，该模块通过485方式和系统内所有模块进行通讯，只需通过软件就可以通过该通讯模块对TSI系统内任意一个测量模块进行组态，修改报警危险值，解除保护等操作。用户操作更方便，简单。不再需要单独连接每一个测量模块进行组态。

A6500-UM

EMERSON A6500-UM Universal Monitoring Module A6500-UM Framework A6500-SR Relay A6500-RC Communication A6500-CC Composition System Universal Monitoring Module A6500-UM One type of card can be used for shaft vibration/bearing vibration/shaft displacement/differential expansion/eccentricity/speed/key equality monitoring A6500-UM module configuration is flexible, and two channels can be connected to different types of sensors for monitoring, such as 1 channel for measuring shaft vibration and 2 channels for measuring shaft displacement; One channel for differential expansion measurement and two channels for eccentricity measurement have upgraded the original MMS6000 monitoring module to a single CSI6500ATG system monitoring card with flexible configuration, which can greatly reduce the number of spare parts and save costs. Replace the original framework with the latest system framework A6500-SR, which is a backplane type framework with simple and clear wiring, and extremely convenient daily maintenance. The upgraded ATG framework has specially designed the A6500-RC relay module.

A6500-UM

EMERSON A6500-UM universal monitoring module, which can perform multiple logical operations such as “AND”, “OR”, “NOT”, “AND AND OR”, and “2 out of 3” on the monitoring parameters of any measurement module within its framework, and send out a set of switching signals. The relay module has 16 switching outputs. The logical modifications are more convenient and concise. Users only need to operate the software to upgrade the A6500-SR framework, which is equipped with an A6500-CC communication module. This module communicates with all modules in the system through 485 mode. With this communication module, users can configure any measurement module in the TSI system, modify alarm danger values, and release protection through the software. User operation is more convenient and simple. There is no longer a need to connect each measurement module separately for configuration.
