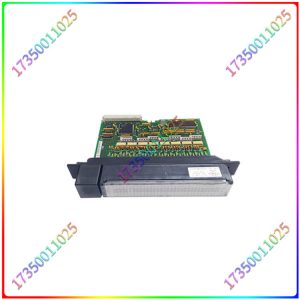

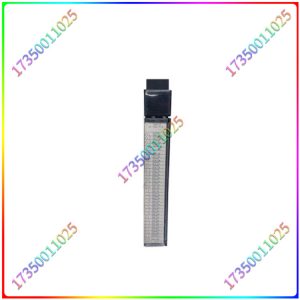

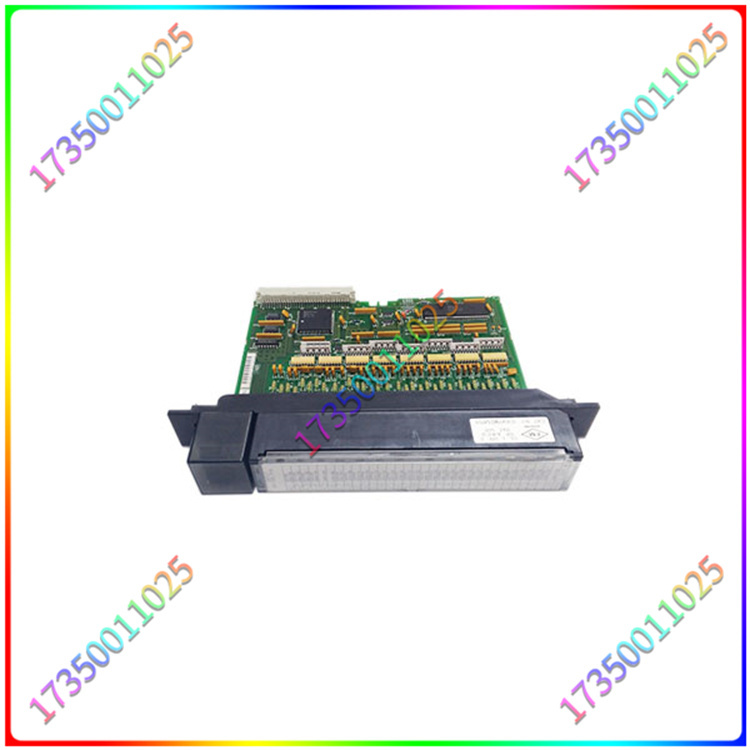

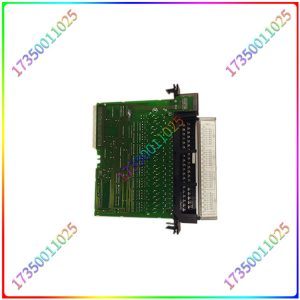

IC697MDL653 是 Serie 90-70 可编程逻辑控制器 系列的一部分。该模块以前由 GE Fanuc Automation 制造，但最近被 Emerson Automation 收购。它具有高密度输入通道，特别是三十二个离散输入通道，分为四 组，每组八 个通道，提供组隔离。该模块设计用于在 -3 至 +3 VDC 的输入电压范围内工作，额定电压为 24 VDV，24 VDC 时的输入电流为 10 mA，典型输入阻抗为 2.6 KOhm。该IC697MDL653具有 13.5 V 至 30 V 和 6mA 至 15mA 的导通电压和导通电流。相反，关断状态电压和关断状态电流分别为 0 V 至 5 V 和 0 至 2mA。该模块的每个输入通道的输入延迟时间为 1 ms 或 10 ms，可通过软件进行配置。该模块从 5VDC 总线汲取电流，电流为 300 mA，并且设计符合 VME 标准 C.1。该模块与背板的单个通道隔离为 1500 V，组间隔离为 500 VDC。该IC697MDL653支持正负逻辑接线。由于每个输入组都配有专用的公共端子，因此组级别的接线配置可能有所不同。
IC697MDL653
IC697MDL653正/负逻辑输入模块由 GE Fanuc 制造，旨在与 90-70 系列的可编程逻辑控制器一起使用。该模块具有正负逻辑特性，如果系统需要对其接近开关、按钮和类似控制部件进行更多控制，则该模块是一个不错的选择。IC697MDL653模块具有 32 个输入点，这些输入点格式化为 4 组，每组 8 个输入。该模块具有一个可选的输入滤波器，其延迟时间为 1 毫秒或 10 毫秒。该 VME 指定的输入模块具有单个输入，如果该模块与 GE IC696 产品线中的可编程逻辑控制器结合使用，则该模块可以作为中断运行。该模块可以与其他类型的 PLC 一起使用，但某些包含的功能功能有限。使用负逻辑时，正极线端接到公共端子，负极线将电压信号传递到输入通道。正极逻辑接线与负极接线方法相反。
IC697MDL653
IC697MDL653 is part of the Series 90-70 programmable logic controller series. This module was previously manufactured by GE Fanuc Automation, but has recently been acquired by Emerson Automation. It has high-density input channels, especially 32 discrete input channels, divided into four groups of eight channels each, providing group isolation. This module is designed to operate within the input voltage range of -3 to+3 VDC, with a rated voltage of 24 VDV, an input current of 10 mA at 24 VDC, and a typical input impedance of 2.6 KOhm. The IC697MDL653 has a conduction voltage and current of 13.5 V to 30 V and 6 mA to 15 mA. On the contrary, the voltage and current in the off state are 0 V to 5 V and 0 to 2 mA, respectively. The input delay time of each input channel of this module is 1 ms or 10 ms, which can be configured through software. This module draws a current of 300 mA from the 5VDC bus and is designed to comply with VME standard C.1. The module is isolated from a single channel of the backplane at 1500 V, and the inter group isolation is 500 VDC. The IC697MDL653 supports positive and negative logical wiring. Due to the fact that each input group is equipped with dedicated common terminals, the wiring configuration at the group level may vary.
IC697MDL653
The IC697MDL653 positive/negative logic input module is manufactured by GE Fanuc and is designed for use with programmable logic controllers in the 90-70 series. This module has positive and negative logic characteristics, and if the system needs more control over its proximity switches, buttons, and similar control components, then this module is a good choice. The IC697MDL653 module has 32 input points, which are formatted into 4 groups with 8 inputs per group. This module has an optional input filter with a delay time of 1 or 10 milliseconds. The input module specified by this VME has a single input, and if used in conjunction with the programmable logic controller in the GE IC696 product line, this module can operate as an interrupt. This module can be used with other types of PLCs, but some of the functionalities included are limited. When using negative logic, the positive terminal is connected to the common terminal, and the negative terminal transmits the voltage signal to the input channel. The positive logic wiring is the opposite of the negative wiring method.
IC697MDL653
