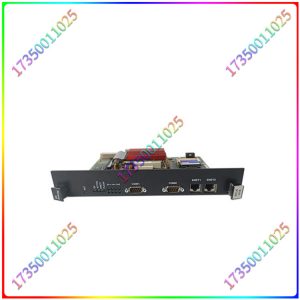

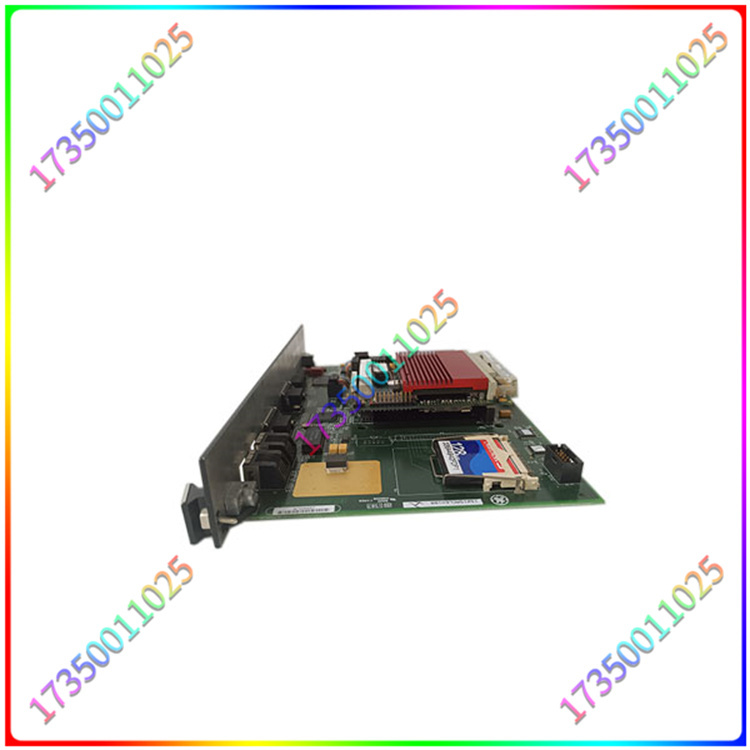

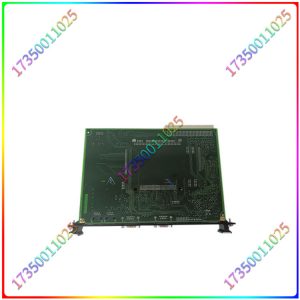

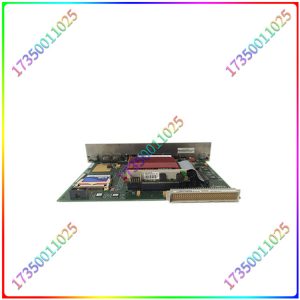

GE IS215ACLEH1B 控制层模块产品描述：应用控制层模块IS215ACLEH1B与EX2100系列模块一起使用。此模块具有来自BIOS设置的4 MB闪存。只要连接了键盘接口，该型号就可以与键盘一起使用。IS215ACLEH1B型号是EX2100e系列的一部分，作为应用控制层模块，通常是基于微处理器的控制器。该板的主要用途是通过ISBus和以太网等通信网络执行多种不同的任务。安装板后，它将占据EX2100励磁机板机架或创新系列驱动器中的两个半插槽。ACLE板也将位于控制柜内。有许多不同的软件功能，包括但不限于以下功能：I/O点和内部布尔强制创新系列驱动器的应用程序控制非易失性闪存在线应用程序配置加载控制块。
IS215ACLEH1B
IS215ACLEH1B板使用以太网连接，该连接使用由板上BIOS功能初始化的IRQ 5。ACLE板上的以太网连接是一个10baseT或RJ45插座，位于ACL板的前面板上。作为一种基于微处理器的控制，该板具有一个外围组件互连（PCI）控制器，该控制器将管理不同的输入和输出、与PCI总线的配置传输以及管理各种存储器功能。IS215ACLEH1B型号还有一个128 KB的L2高速缓存，与PCI控制器一起使用并由PCI控制器控制，该高速缓存设置在152 NC高速缓存行，该行将填充L1和L2高速缓存之间的行。ACLE板的另一个功能是闪存设备，该存储设备位于目标接口的本地总线侧，被称为设备1，该设备只能在字节模式下访问。
IS215ACLEH1B
GE IS215ACLEH1B Control Layer Module Product Description: The application control layer module IS215ACLEH1B is used together with the EX2100 series module. This module has 4 MB flash memory from BIOS settings. As long as the keyboard interface is connected, this model can be used with the keyboard. The IS215ACLEH1B model is part of the EX2100e series and serves as an application control layer module, typically a microprocessor based controller. The main purpose of this board is to perform various tasks through communication networks such as ISBus and Ethernet. After installing the board, it will occupy two and a half slots in the EX2100 exciter board rack or innovative series drives. The ACLE board will also be located inside the control cabinet. There are many different software features, including but not limited to the following: application control for I/O points and internal Boolean forced innovation series drives, non volatile flash online application configuration loading control block.
IS215ACLEH1B
The IS215ACLEH1B board uses an Ethernet connection, which uses IRQ 5 initialized by the BIOS function on the board. The Ethernet connection on the ACL board is a 10baseT or RJ45 socket located on the front panel of the ACL board. As a microprocessor based control, the board has a Peripheral Component Interconnection (PCI) controller that manages different inputs and outputs, configuration transfers with the PCI bus, and various memory functions. The IS215ACLEH1B model also has a 128 KB L2 cache, which is used in conjunction with and controlled by the PCI controller. The cache is set at 152 NC cache rows, which will fill the rows between the L1 and L2 caches. Another function of the ACLE board is the flash device, which is located on the local bus side of the target interface and is called device 1. This device can only be accessed in byte mode.
IS215ACLEH1B
