IS420ESWBH3A燃机模块SPC操作模式状态栏的此部分显示SPC的当前操作模式。需要配置： 尚未配置SPC。 未主动控制执行器位置。 执行器电流强制为0 mA。已配置；需要校准 SPC已配置但未校准。 未主动控制执行器位置。 执行器电流强制为0 mA。已配置 SPC已配置和校准。未主动控制执行器位置。 致动器电流强制为0 mA。校准 SPC正在根据特定致动器的位置反馈进行校准。 执行器位置因强制不同的固定电流而改变除了在校准程序的验证部分期间，当使用新位置主动控制位置时反馈信息。忽略正常位置要求输入。
IS420ESWBH3A
工业以太网交换机S420ESWBH3A是通用电气公司设计的Mark Vle安全控制系统的一部分。该交换机没有任何光纤端口，但有16个铜质端口，这些铜质端口是10/100Base-TX R45端口。该交换机的主要功能是作为一级以太网交换机，其核心功能是缓冲组播和广播数据包。应该有足够的空间来允许每个端口缓冲一个分组;如果有多个传入流被发送到交换机，它只能接受多个流中的一个传入流，并将缓冲其余的流以供以后传输。
IS420ESWBH3A
IS42OESWBH3A开关上有LED指示灯。有一个电源指示灯，其余指示灯是活动和链接功能指示灯。当链路指示灯呈稳定黄色时，表示正在使用10MB的链路;当呈稳定绿色时，表示正在使用10O MB的链路;如果没有指示灯亮起，则表示没有链路。活动LED的颜色也是绿色和黄色，但它们会闪烁，当LED闪烁绿色时，表示活动处于全双工状态，当闪烁黄色时，表示活动处于半双工状态。
IS420ESWBH3A
This section of the SPC operation mode status bar of the IS420ESWBH3A gas turbine module displays the current operation mode of the SPC. Configuration required: SPC has not been configured yet. Not actively controlling the actuator position. The actuator current is forced to 0 mA. Configured; Need to calibrate SPC configured but not calibrated. Not actively controlling the actuator position. The actuator current is forced to 0 mA. SPC has been configured and calibrated. Not actively controlling the actuator position. The actuator current is forced to 0 mA. The calibration SPC is being calibrated based on the position feedback of a specific actuator. The actuator position changes due to forcing different fixed currents, except for feedback information during the validation section of the calibration program when using a new position to actively control the position. Ignore normal position requirements for input.
IS420ESWBH3A

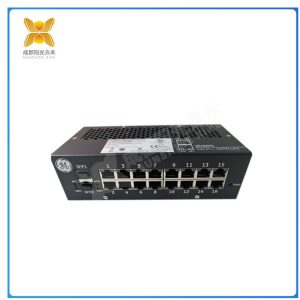

The industrial Ethernet switch S420ESWBH3A is part of the Mark Vle security control system designed by General Electric Company. This switch does not have any fiber optic ports, but has 16 copper ports, which are 10/100Base-TX R45 ports. The main function of this switch is to serve as a primary Ethernet switch, with its core function being to buffer multicast and broadcast data packets. There should be enough space to allow each port to buffer one packet; If multiple incoming streams are sent to the switch, it can only accept one of the multiple streams and buffer the remaining streams for future transmission.
IS420ESWBH3A

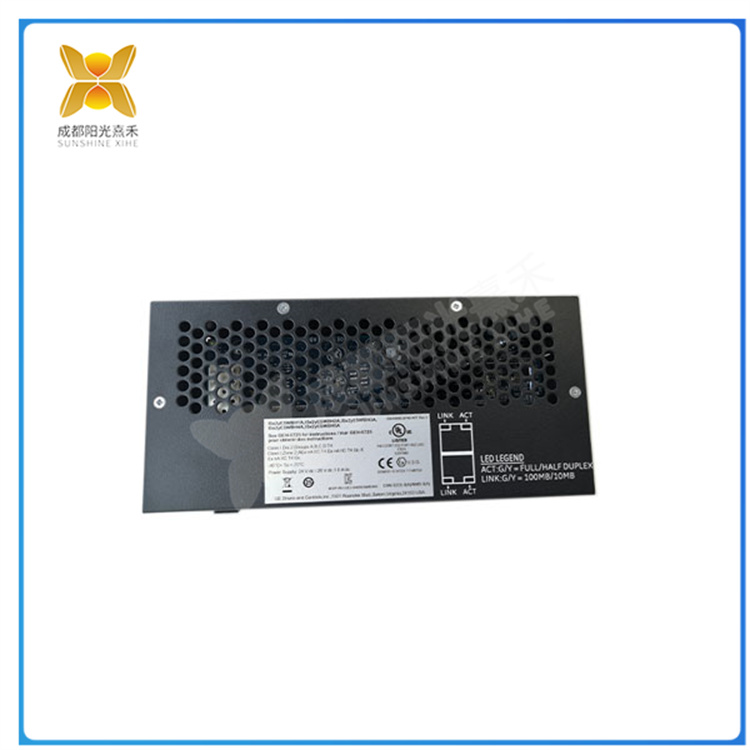

There is an LED indicator light on the IS42OESWBH3A switch. There is one power indicator, while the other indicators are activity and link function indicators. When the link indicator light is stable yellow, it indicates that a 10MB link is being used; When it appears stable green, it indicates that a 10O MB link is being used; If no indicator lights up, it means there is no link. The colors of the activity LED are also green and yellow, but they will flash. When the LED flashes green, it indicates that the activity is in full duplex state, and when it flashes yellow, it indicates that the activity is in half duplex state.
