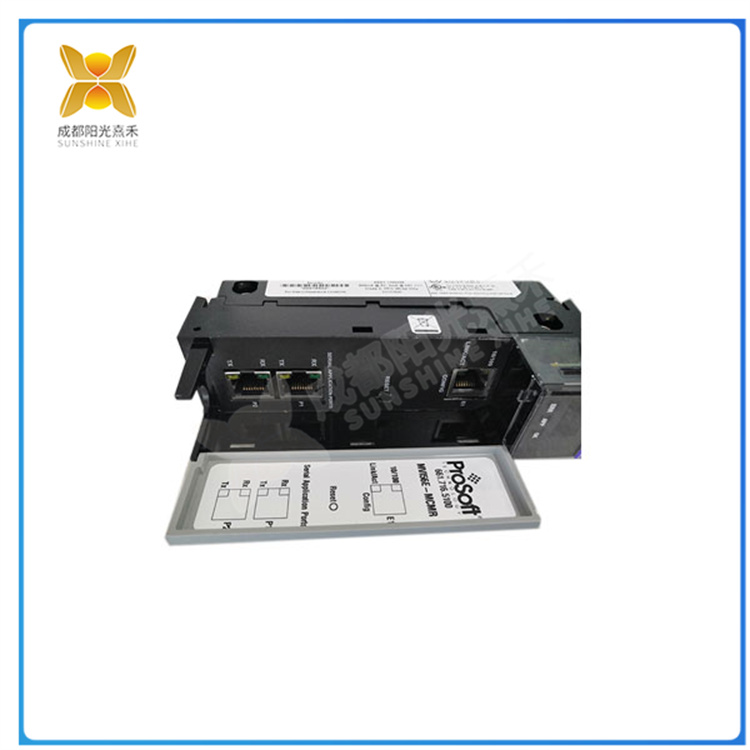

MVI56E-MCMR是一个ProSoft技术通信模块，该模块支持MODBUS串行/ ASCII通信，并配有双RS232串行应用端口。这些端口支持RS232 / RS485和RS422电气标准，波特率可配置为110波特至115.2 kbps。可接受的串行设置包括无、奇数或偶数奇偶校验、数据位5、6、7和8；停止位为1或2，RTS开/关延迟为0-65535毫秒。该模块还带有一个RJ45以太网端口形式的调试/配置端口。该端口支持10/100 base-T传输速度，具有链路和活动LED指示灯以及自动交叉电缆检测。MVI56E-MCMR是一个单槽模块，可直接安装到任何1756机箱上。要配置模块操作和参数，可以使用PCB和产品发现服务PDS。随着数据块的减少，MVI56E-MCMR需要更少的背板/网络带宽，并支持更简单的调度和通过控制网络的传输。此外，当与ControlNet通信适配器和冗余控制器一起使用时，简化的数据块实际上用于远程机箱安装。
MVI56E-MCMR
MVI56-MCMR模块是一个数据块减少的Modbus通信模块。它由Allen-Bradley和ProSoft Technology设计和制造，作为工业ControlLogix平台的一个组件。MVI56-MCMR Modbus通信模块的底板电流等级在5伏DC电压下为800毫安，在24伏DC电压下为3毫安。它可以在相对湿度为5%至95%的环境中安全运行或储存，不会发生冷凝。MVI56-MCMR模块的工作温度范围为0至60摄氏度或32至140华氏度，其存储温度范围为-40至85摄氏度或-40至185华氏度。此外，MVI56-MCMR Modbus通信模块可以承受30克的最大工作冲击、50克的最大非工作冲击和5克10至150赫兹的振动 。
MVI56E-MCMR
MVI56E-MCMR is a ProSoft technology communication module that supports MODBUS serial/ASCII communication and is equipped with dual RS232 serial application ports. These ports support RS232/RS485 and RS422 electrical standards, with baud rates configurable from 110 baud to 115.2 kbps. Acceptable serial settings include none, odd or even parity, data bits 5, 6, 7, and 8; The stop bit is 1 or 2, and the RTS on/off delay is 0-65535 milliseconds. This module also comes with a debugging/configuration port in the form of an RJ45 Ethernet port. This port supports 10/100 base-T transmission speed, with link and activity LED indicators, as well as automatic cross cable detection. The MVI56E-MCMR is a single slot module that can be directly installed on any 1756 chassis. To configure module operations and parameters, you can use PCB and product discovery service PDS. With the reduction of data blocks, MVI56E-MCMR requires less backplane/network bandwidth and supports simpler scheduling and transmission through control networks. In addition, when used with ControlNet communication adapters and redundant controllers, simplified data blocks are actually used for remote chassis installation.
MVI56E-MCMR
The MVI56-MCMR module is a Modbus communication module with reduced data blocks. It is designed and manufactured by Allen Bradley and ProSoft Technology as a component of the Industrial ControlLogix platform. The motherboard current level of the MVI56-MCMR Modbus communication module is 800 mA at 5 V DC and 3 mA at 24 V DC. It can operate or store safely in an environment with a relative humidity of 5% to 95% without condensation. The operating temperature range of the MVI56-MCMR module is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit, and its storage temperature range is -40 to 85 degrees Celsius or -40 to 185 degrees Fahrenheit. In addition, the MVI56-MCMR Modbus communication module can withstand a maximum working shock of 30 grams, a maximum non working shock of 50 grams, and a vibration of 5 grams from 10 to 150 Hz.
MVI56E-MCMR
PLC内的I/O模板，除一般的DI/DO、AD/DA模板外，还发展了一系列特殊功能的I/O模板，这为PLC用于各行各业打开了出路，如用于条形码识别的ASCII/BASIC模板，用于反馈控制的PID模板，用于运行控制、机械加工的高速计数模板、单轴位置控制模板、双轴位置控制模板、凸轮定位器模板、射频识别接口模板等，这在以后还会有很大发展。另外在输入、输出的相关元件、强干扰场合的输入、输出电隔离、地隔离等方面也会更加完善。
