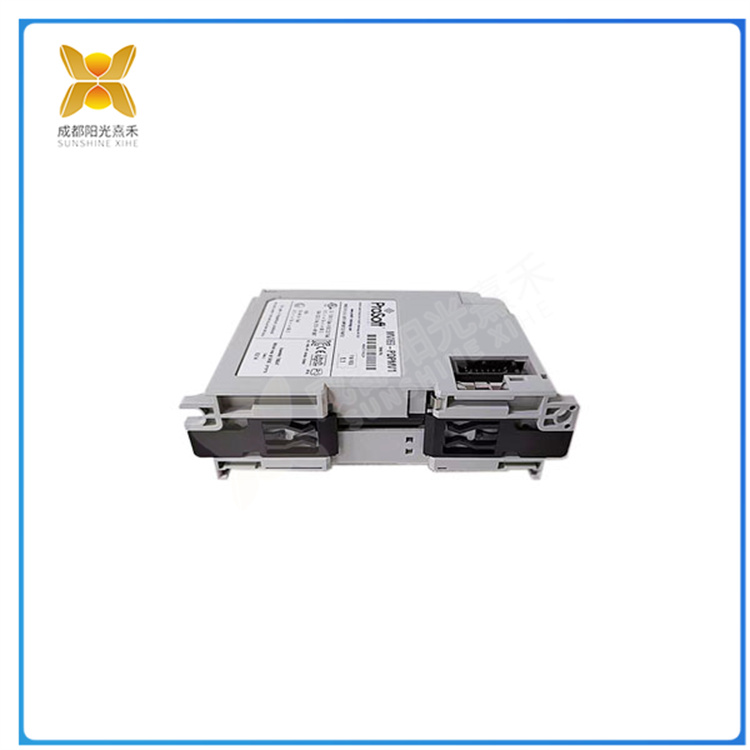

DP-V69系列MVI1-PDPMV1主站通信模块带CFG端口，由Prosoft Technology设计，其子品牌为inRAx。该模块使用 CFG 端口作为其主接口，它具有明亮的 LED 指示灯，用于显示模块状态、电源状态、应用状态、端动和错误状态等操作元素。与此模块一起使用的连接电缆是 RJ45 到 DB-9 M 和 6 英尺 RS-232 电缆。该模块的背板额定电流为 800 mA，最大电压为 5 V DC。MVI69-PDPMV1 与单插槽 1769 背板兼容，并被处理器识别为输入/输出模块。MVI69-PDPMV1 模块可用于访问处理器的内存，以在处理器和模块之间传输数据。这两个组件之间的数据传输是使用 Ladder Logic 执行的，该模块附带了一个可以使用的示例梯形图文件。
MVI69-PDPMV1

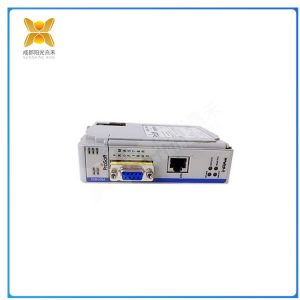

MVI69-PDPMV1 是 Prosoft Technology 模块，用作 Profibus 主站网络模块。该模块特别兼容 Profibus 分散式外设 DP工业网络。它是一个单插槽模块，可直接安装到 1769 背板上，供 1769 CompactLogix 控制器使用。此外，该模块还与 MicroLogix 1500 LRP 控制器兼容。MVI69-PDPMV1 支持通信多达 125 个从设备，带或不带 ProfiBus 中继器。它能够处理多达 1536 个循环字节的输入以及 1536 字节的输出数据。此外，此模块还支持配置为提供扩展的诊断数据。MVI69-PDPMV1 配有一 个 9 针 Sub-D 母头连接器，带有就绪、运行、错误和令牌 LED 指示灯。该端口支持高达 12 Mbps 的标准 Profibus 传输，可在单个插槽中安装多个 Profibus 主站;因此，允许主机控制器与各种 ProfiBus 网段通信。此外，制造商提供的附件工具可用于帮助简化硬件配置并定义该模块的数据传输。
MVI69-PDPMV1
The DP-V69 series MVI1-PDPMV1 master station communication module comes with a CFG port, designed by Prosoft Technology and its sub brand is inRAx. This module uses the CFG port as its main interface, which has bright LED indicators for displaying operational elements such as module status, power status, application status, termination, and error status. The connecting cables used with this module are RJ45 to DB-9 M and 6-foot RS-232 cables. The backplane of this module has a rated current of 800 mA and a maximum voltage of 5 V DC. MVI69-PDPMV1 is compatible with a single slot 1769 backplane and is recognized by the processor as an input/output module. The MVI69-PDPMV1 module can be used to access the memory of the processor to transfer data between the processor and the module. The data transfer between these two components is performed using Ladder Logic, which comes with a sample ladder file that can be used.
MVI69-PDPMV1
MVI69-PDPMV1 is a Prosoft Technology module used as a Profibus master network module. This module is particularly compatible with Profibus distributed peripheral DP industrial networks. It is a single slot module that can be directly installed on the 1769 backplane for use by 1769 CompactLogix controllers. In addition, the module is also compatible with the MicroLogix 1500 LRP controller. MVI69-PDPMV1 supports communication with up to 125 slave devices, with or without ProfiBus relays. It can handle up to 1536 loop bytes of input and 1536 bytes of output data. In addition, this module also supports configuration to provide extended diagnostic data. MVI69-PDPMV1 is equipped with a 9-pin Sub-D female connector with ready, running, error, and token LED indicators. This port supports up to 12 Mbps of standard Profibus transmission and can install multiple Profibus master stations in a single slot; Therefore, it allows the host controller to communicate with various ProfiBus network segments. In addition, the accessory tools provided by the manufacturer can be used to help simplify hardware configuration and define data transmission for the module
