MVME2100系列VME处理器模块是一系列高度模块化的单 板计算机，适用于VME应用。MVME2100的核心是MPC8240,度集成的PowerPC架构微处理器，MPC60x类核心、高级内存控制器和外围组件互连(PCI)接口。 与MPC8240和PCI夹层 卡(PMC)的组合和pcmip夹层插槽，MVME2100为客户提供了业自动化I/O扩展的高性能构建模块，电信、医疗科学或成像应用。MPC8240 32位微处理器，L1高速缓存16KB/16KB MPC60x级，32MB板载SDRAM,带可选ECC保护，两个用于闪存的32针PLCC/CLCC插座;起来高达1 MB的板载固件容量或用户指定的要求。
MVME2100
用户指定的4MB板载闪存要求，1个符合IEE P1386.1的32位PMC插槽，带有前面板和P2 I/O，三个32位PC MIP扩展槽，兼容带有VITA 29草案标准:一个型槽，带后部面板I/O和两个带前面板I/O的1型插槽，32位PCI扩展夹层连接器，以太网收发器接口，带32位PCI本地接口总线DMA, 10/ 100Mb/s,具有自动协商速度挑选，8K x 8 NVRAM和日历时钟，带可更换备用电池 。
MVME2100

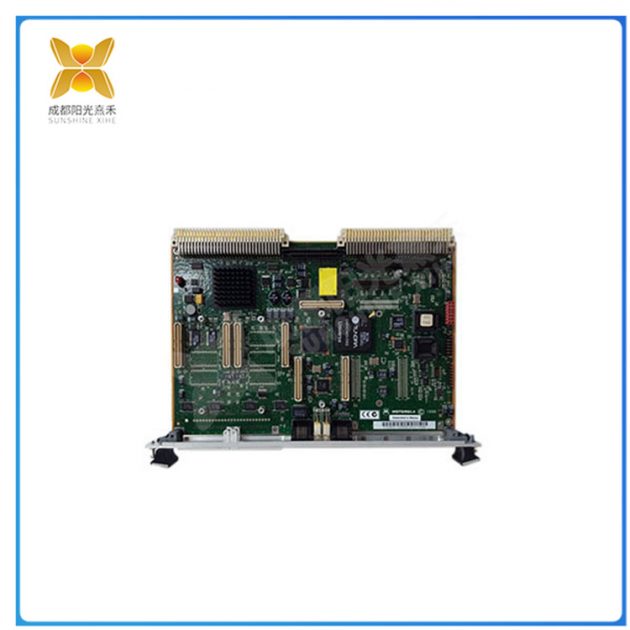

The MVME2100 series VME processor module is a series of highly modular single board computers suitable for VME applications. The core of MVME2100 is the MPC8240, an integrated PowerPC architecture microprocessor, an MPC60x class core, advanced memory controller, and peripheral component interconnect (PCI) interface. With the combination of MPC8240 and PCI mezzanine card (PMC) and pcmip mezzanine slot, MVME2100 provides customers with high-performance building blocks for industrial automation I/O expansion, telecommunications, medical science, or imaging applications. MPC8240 32-bit microprocessor, L1 cache 16KB/16KB MPC60x-level, 32MB on-board SDRAM, with optional ECC protection, two 32-bit PLC C/CLCC sockets for flash memory; Up to 1 MB of onboard firmware capacity or user specified requirements.
MVME2100
User specified 4MB onboard flash memory requirement, 1 32-bit PMC slot in accordance with IEE P1386.1, with front panel and P2 I/O, three 32-bit PC MIP expansion slots, compatible with VITA 29 draft standard: one slot with rear panel I/O and two Type 1 slots with front panel I/O, 32-bit PCI expansion mezzanine connector, Ethernet transceiver interface, with 32-bit PCI local interface bus DMA, 10/100Mb/s, with automatic negotiation speed selection, 8K x 8 NVRAM and calendar clock with replaceable backup battery.
