NTAC-02速度编码器模块DC/DC变换器将一个固定的直流电压变换为可变的直流电压,这种技术被广泛应用于无轨电车、地铁列车、电动车的无级变速和控制,同时使上述控制获得加速平稳、快速响应的性能,并同时收到节约电能的效果。用直流斩波器代替变阻器可节约电能(20~30)%。直流斩波器不仅能起调压的作用开关电源,同时还能起到有效地抑制电网侧谐波电流噪声的作用。通信电源的二次电源DC/DC变换器已商品化,模块采用高频PWM技术,开关频率在50OkHz左右,功率密度为5W~20W/in3。随着大规模集成电路的发展,要求电源模块实现小型化,因此就要不断提高开关频率和采用新的电路拓扑结构当前已有一些公司研制生产了采用零电流开关和零电压开关技术的二次电源模块,功率密度有较大幅度的提高。

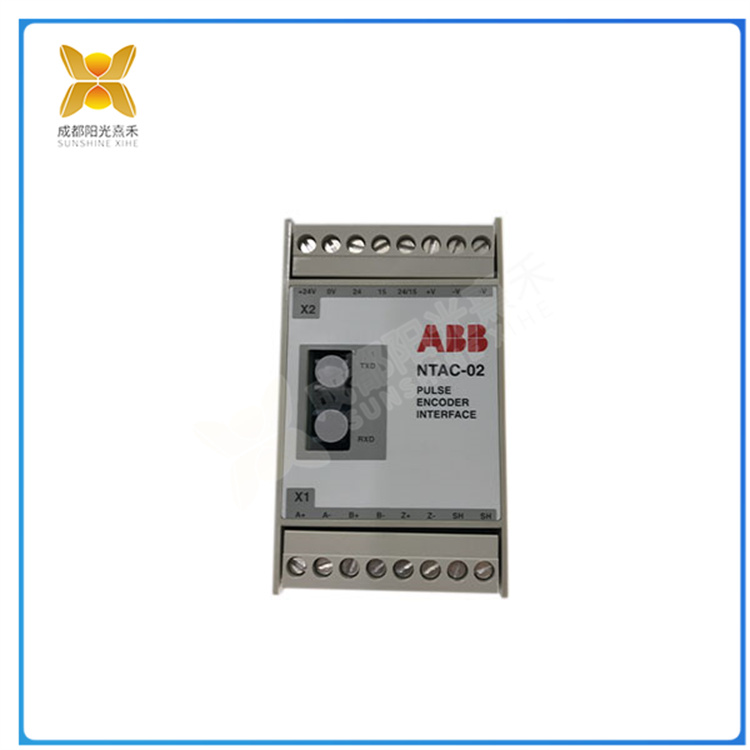

NTAC-02
NTAC-O2速度编码器模块间断电源(UPS)是计算机、通信系统以及要求提供不能中断场合所的一种高可靠、的电源。交流市电输入经整流器变成直流一部分能量给蓄电池组充电,另一部分能量经逆变器变成交流;经转换开关送到负载。为了在逆变器故障时仍能向负载提供能量,另一路备用电源通过电源转换开关来实现。现代UPS普遍了采用脉宽调制技术和功率MOSFET、IGBT等现代电力电子器件电源的噪声得以降低,而效率和可靠性得以提高。微处理器软硬件技术的引入,可以实现对UPS的智能化管理,进行远程维护和远程诊断。
NTAC-02
NTAC-02速度编码器模块变频器电源：变频器电源主要用于交流电机的变频调速,其在电气传动系统中占据的地位日趋重要,已获得的节能效果。变频器电源主电路均采用交流-直流-交流方案。工频电源通过整流器变成固定的直流电压,然后由大功率晶体管或lGBT组成的PWM高频变换器,将直流电压逆变成电压、频率可变的交流输出,电源输出波形近似于正弦波,用于驱动交流异步电动机实现无级调速。
NTAC-02
The NTAC-02 speed encoder module DC/DC converter converts a fixed DC voltage into a variable DC voltage. This technology is widely used in the continuously variable transmission and control of trolleybuses, subway trains, and electric vehicles, while achieving stable acceleration and fast response performance, while also achieving the effect of energy conservation. Replacing a rheostat with a DC chopper can save (20-30)% of electrical energy. The DC chopper can not only regulate the voltage of the switching power supply, but also effectively suppress the harmonic current noise on the power grid side. The secondary power supply DC/DC converter for communication power has been commercialized, and the module adopts high-frequency PWM technology. The switching frequency is around 50OkHz, and the power density is 5W~20W/in3. With the development of large-scale integrated circuits, miniaturization of power modules is required. Therefore, it is necessary to continuously increase the switching frequency and adopt new circuit topologies. Currently, some companies have developed and produced secondary power modules that use zero current switching and zero voltage switching technology, with a significant increase in power density
NTAC-02
The NTAC-O2 speed encoder module intermittent power supply (UPS) is a highly reliable and reliable power supply for computers, communication systems, and applications that require uninterrupted power supply. The AC mains power input is converted into DC through a rectifier, with a portion of the energy used to charge the battery pack, and another portion of the energy converted into AC through an inverter; Sent to the load through a transfer switch. In order to still provide energy to the load in the event of inverter failure, another backup power supply is achieved through a power conversion switch. Modern UPS generally adopts pulse width modulation technology and modern power electronic devices such as MOSFETs and IGBTs to reduce noise, while improving efficiency and reliability. The introduction of microprocessor software and hardware technology can achieve intelligent management, remote maintenance, and remote diagnosis of UPS
NTAC-02
NTAC-02 speed encoder module frequency converter power supply: The frequency converter power supply is mainly used for frequency conversion and speed regulation of AC motors, and its position in the electrical transmission system is becoming increasingly important, achieving energy-saving effects. The main circuit of the frequency converter power supply adopts an AC DC AC scheme. The power supply is converted into a fixed DC voltage through a rectifier, and then a PWM high-frequency converter composed of high-power transistors or lGBT inverts the DC voltage into a variable voltage and frequency AC output. The output waveform of the power supply is similar to a sine wave, used to drive AC asynchronous electric motors to achieve stepless speed regulation.
