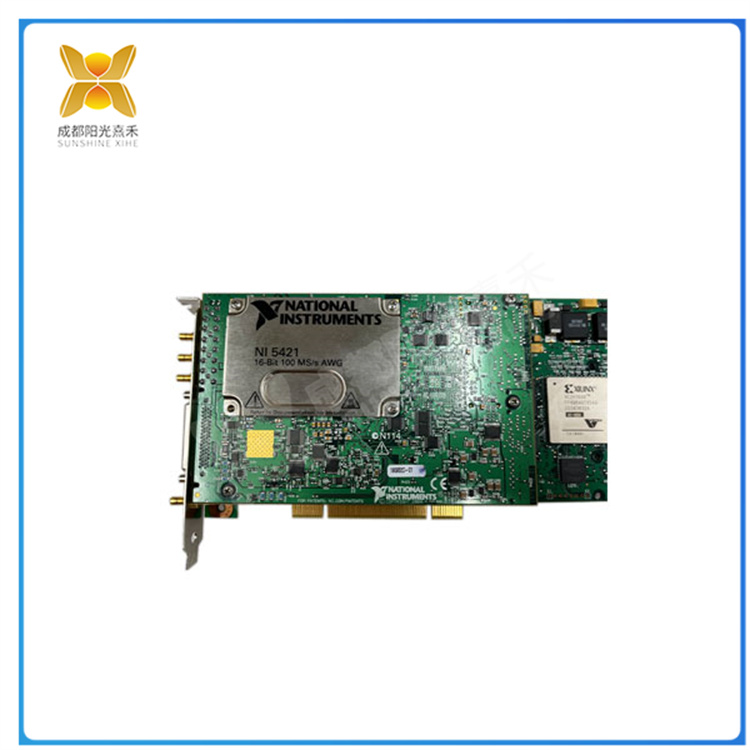

PCI-5421 NI任意波形发生器是一种用于生成任意波形的设备，具有高精度和灵活性。特征：支持生成高分辨率和高精度的复杂波形，提供广泛的波形调制选项，为同时生成波形提供多个输出通道，配有波形创建和控制软件，PCI-5421 NI任意波形发生器是一种可靠且通用的设备，允许用户为各种应用生成复杂的波形。它提供对波形参数的精确控制，并提供卓越的信号质量。PCI-5421 器件提供三种版本，板载存储器大小有三个选项。部件号 778692-01 具有 8 MB 板载内存，部件号 778692-02 具有 32 MB 板载内存， 部件号 778692-03 具有 256 MB 板载内存。 该设备用于生成用户定义的任意波形。PCI-5421 器件 还 可以 生成 标准的正弦、斜坡、 三角和方信号。
PCI-5421
该设备还可用于流式传输数据和高级同步。PCI-5421 带有一个模拟输出通道，该通道有一个 SMB插孔连接器。输出通道的DAC分辨率为16位。它是直流耦合型。PCI-5421 设备输出端的通道可以组合相似路径中的波形。这意味着设备支持波形求和。因此，可以连接不同模块的输出端子。PCI-5421 波形发生器设备的最大带宽为 43 MHz。该器件具有 7 极椭圆滤波器。PCI-5421 波形发生 器 设备 带有 两个 双向 通道。用户可以对这些进行编程。这些通道具有 SMB插孔型连接器。这些通道的频率范围为 DC 至 105 MHz。作为输入，这些通道用作触发通道。最大输入过载为-2至+7 V电压。这些通道也可以用作事件生成器的输出。
PCI-5421
The PCI-5421 NI arbitrary waveform generator is a device used to generate arbitrary waveforms, with high accuracy and flexibility. Features: Supports the generation of high-resolution and high-precision complex waveforms, provides a wide range of waveform modulation options, provides multiple output channels for simultaneous waveform generation, and is equipped with waveform creation and control software. The PCI-5421 NI arbitrary waveform generator is a reliable and universal device that allows users to generate complex waveforms for various applications. It provides precise control of waveform parameters and excellent signal quality. The PCI-5421 device is available in three versions, with three options for onboard memory size. Part number 778692-01 has 8 MB of onboard memory, part number 778692-02 has 32 MB of onboard memory, and part number 778692-03 has 256 MB of onboard memory. This device is used to generate any user-defined waveform. The PCI-5421 device can also generate standard sine, slope, triangular, and square signals.
PCI-5421
This device can also be used for streaming data and advanced synchronization. PCI-5421 comes with an analog output channel that has an SMB jack connector. The DAC resolution of the output channel is 16 bits. It is a DC coupled type. The channels at the output end of the PCI-5421 device can combine waveforms in similar paths. This means that the device supports waveform summation. Therefore, it is possible to connect the output terminals of different modules. The maximum bandwidth of the PCI-5421 waveform generator device is 43 MHz. This device has a 7-pole elliptical filter. The PCI-5421 waveform generator device comes with two bidirectional channels. Users can program these. These channels have SMB jack type connectors. The frequency range of these channels is DC to 105 MHz. As inputs, these channels are used as trigger channels. The maximum input overload is -2 to+7 V voltage. These channels can also be used as outputs for event generators.
PCI-5421
