NI PXIE-8135 控制器模块用于处理器密集型模块化仪器和数据获取应用

PXIe-8135 是一款用于 PXI Express 框架的英特尔酷睿 i7 插入控制器。它用于处理器密集型、模块化仪器和数据获取应用。PXIe-8135 集成了两个 10/ 100/1000BASE-TX（千兆）以太网口、两个高速 USB 口和四个高速 USB 口，以及一个集成式硬盘、串口和其他 I/ O。设备的最大控制器带宽为每秒 8 GB。该型号还提供了三种配置： PXIe-8135 采用 Windows 32 和 LabVIEW 实时。NI PXIe-8135 前板上的 SMB 连接器可与任何 PXI Express 背板触发线连接或连接。预计触发器分配过程将阻止两个资产与类似的触发线接口，从而导致触发器被双重驱动，并可能损害模块。

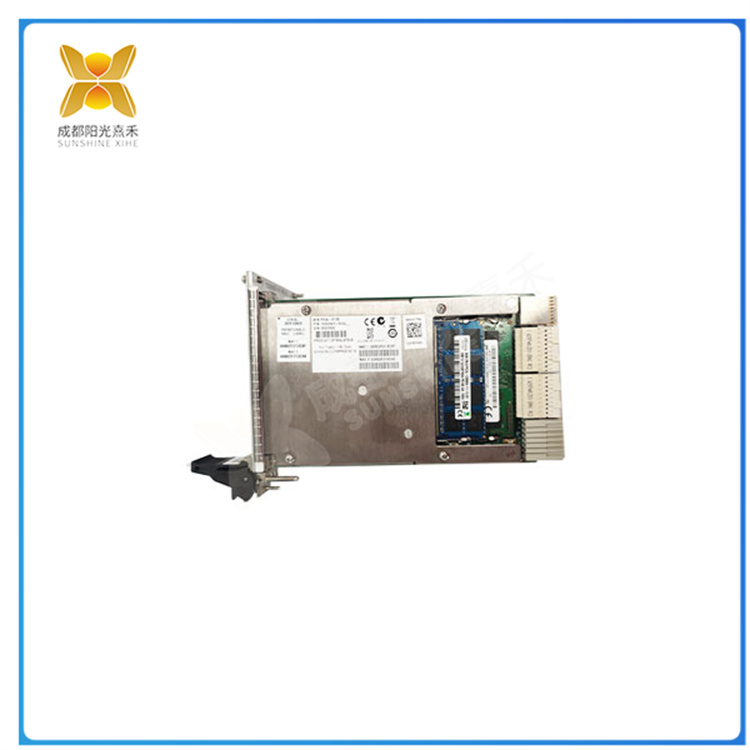

PXIE-8135

NI PXIe-8135 使用驱动软件运行，兼容了软件包应用程序开发环境，该设备可以使用测量和自动化浏览器（MAX）工具进行配置。NI PXIe-8135 控制器集成了两种方法来重建用户硬盘的原始出厂状态。基于硬盘驱动器的回收存储硬盘驱动器的单独部分，使用户无需额外介质即可重新建立其控制器。NI PXIe 8135 控制器还附带了一张操作系统恢复 CD，使用户能够通过外部 USB CD/ DVD-ROM，将工作框架重新安装到硬盘上。

PXIE-8135

PXIe-8135 is an Intel Core i7 plug-in controller for the PXI Express framework. It is used for processor intensive, modular instruments and data acquisition applications. PXIe-8135 integrates two 10/100/1000BASE-TX (Gigabit) Ethernet ports, two high-speed USB ports, and four high-speed USB ports, as well as an integrated hard drive, serial port, and other I/O. The maximum controller bandwidth of the device is 8 GB per second. This model also offers three configurations: PXIe-8135 uses Windows 32 and LabVIEW real-time. The SMB connector on the NI PXIe-8135 front panel can be connected or connected to any PXI Express backplane trigger wire. It is expected that the trigger allocation process will prevent two assets from interacting with similar trigger lines, resulting in the trigger being doubly driven and potentially damaging the module.

PXIE-8135

NI PXIE-8135 runs with driver software and is compatible with the software package application development environment. The device can be configured using Measurement and Automation Browser (MAX) tools. The NI PXIe-8135 controller integrates two methods to reconstruct the original factory state of a user’s hard drive. The recycling storage of individual parts of hard drives based on hard drives allows users to rebuild their controllers without the need for additional media. The NI PXIE 8135 controller also comes with an operating system recovery CD, allowing users to reinstall the working framework onto their hard drive through an external USB CD/DVD-ROM.
