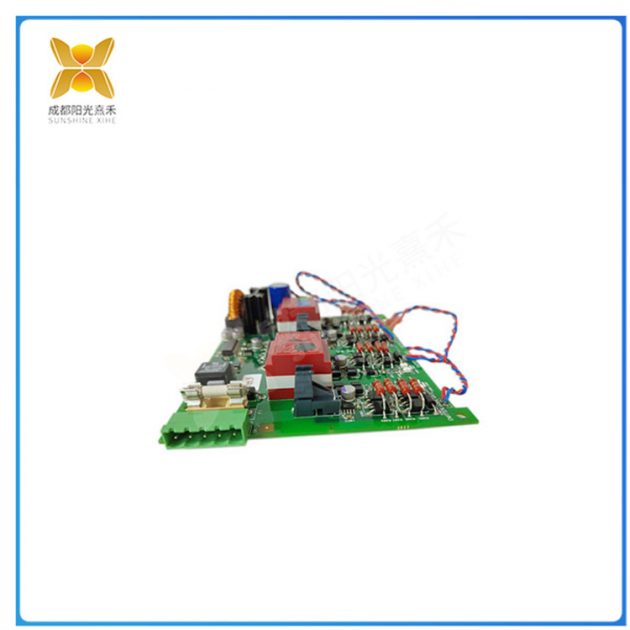

ALSTOM V4561983-0100 电路板控制卡模块可称为印刷线路板或印刷电路板，英文名称为PCB、FPC线路板FPC线路板又称柔性线路板柔性电路板是以聚酰亚胺或聚酯薄膜为基材制成的一种具有高度可靠性,绝佳的可挠性印刷电路板。具有配线密度高、重量轻、厚度薄、弯折性好的特点。和软硬结合板 FPC与PCB的诞生与发展，催生了软硬结合板这一新产品。因此，软硬结合板，就是柔性线路板与硬性线路板，经过压合等工序，按相关工艺要求组合在一起，形成的具有FPC特性与PCB特性的线路板。
V4561983-0100
电路板的分类线路板按层数来分的话分为单面板，双面板，和多层线路板三个大的分类。首先是单面板，在基本的PCB上,零件集中在其中一面，导线则集中在另-面上。因为导线只出现在其中-面，ALSTOM V4561983-0100 电路板控制卡模块所以就称这种PCB叫作单面线路板。单面板通常制作简单，造价低，但是缺点是无法应用于太复杂的产品上。双面板是单面板的延伸，当单层布线不能满足电子产品的需要时，就要使用双面板了。
V4561983-0100
The ALSTOM V4561983-0100 circuit board control card module can be referred to as a printed circuit board or printed circuit board, also known as PCB or FPC circuit board in English. FPC circuit board, also known as flexible circuit board, is a highly reliable and excellent flexible printed circuit board made of polyimide or polyester film as the substrate. It has the characteristics of high wiring density, light weight, thin thickness, and good bending performance. The birth and development of FPC and PCB, as well as the combination of soft and hard boards, have given birth to the new product of soft and hard boards. Therefore, a soft hard combination board refers to a circuit board with FPC and PCB characteristics formed by combining flexible circuit boards and hard circuit boards through pressing and other processes according to relevant process requirements.
V4561983-0100
The classification of circuit boards can be divided into three major categories based on the number of layers: single panel, double-sided board, and multi-layer circuit board. Firstly, there is a single panel, where on a basic PCB, the parts are concentrated on one side and the wires are concentrated on the other side. Because the wires only appear on one side, the ALSTOM V4561983-0100 circuit board control card module is called a single sided circuit board. Single panel production is usually simple and cost-effective, but the disadvantage is that it cannot be applied to products that are too complex. Double panel is an extension of a single panel, and when single-layer wiring cannot meet the needs of electronic products, double-sided boards are used.
V4561983-0100
