总线模块是计算机系统中的一种基本的硬件设备，它充当着数据通信的桥梁，负责连接许多设备和系统组件。总线模块可以是内部总线，也可以是外部总线，内部总线是指系统内部连接的总线，如CPU与内存之间的数据传输总线，而外部总线则是指系统与外部设备之间的数据传输总线。总线模块按其传输的数据类型不同，分为地址总线、数据总线和控制总线。地址总线负责将CPU内部计算所需要访问内存或外设的地址传输到总线模块中，数据总线负责传输计算所需的数据，控制总线则用于传输控制信息，如查询外设状态、控制设备执行特定的操作以及启动或停止数据传输等。总线模块通过总线管理协议进行操作，控制总线上的总线管理器决定了总线的分配和优先级顺序。

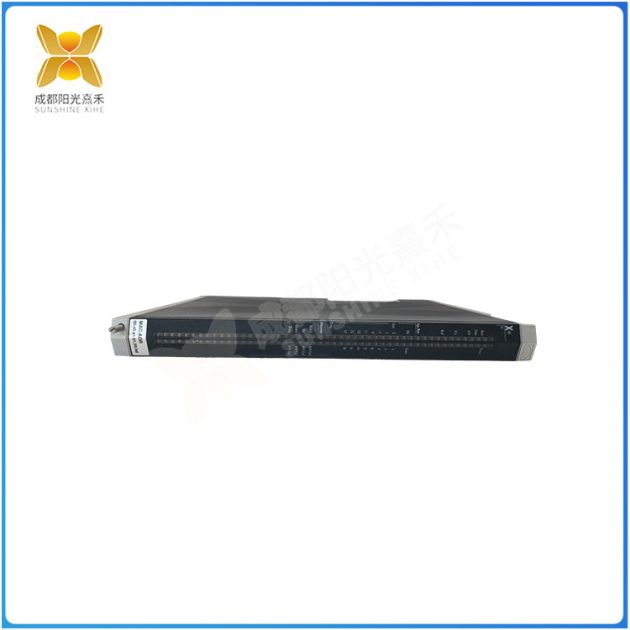

X-SB01-985210207
总线模块的工作原理如下：当CPU需要读取或写入数据时，它会向总线发送一个地址。地址总线将地址传送到内存或外设，外设或内存在搜索到该地址后返回数据。一旦数据就绪，数据总线便会传输它。同时，控制总线会发送一个信号，通知CPU数据已经就绪，可以开始数据传输。除了连接内存和外设以外，总线模块也可以连接多个CPU，这意味着CPU可以共享数据和任务。在现代计算机领域，总线模块已经成为计算机中一个必要的组成部分，且很多计算机的性能和速度都与所使用的总线模块的质量有着密切的关系。总的来说，总线模块是一种重要的硬件设备，在计算机系统中起着不可替代的作用。通过地址总线、数据总线和控制总线的传输，可以满足计算机计算与数据存储之间的连接需求，并提升计算机系统的整体性能和速度。
X-SB01-985210207
A bus module is a basic hardware device in a computer system that serves as a bridge for data communication, responsible for connecting many devices and system components. The bus module can be an internal bus or an external bus. The internal bus refers to the bus connected within the system, such as the data transmission bus between the CPU and memory, while the external bus refers to the data transmission bus between the system and external devices. Bus modules are divided into address bus, data bus, and control bus according to the type of data they transmit. The address bus is responsible for transmitting the addresses of memory or peripherals required for internal CPU calculations to the bus module, the data bus is responsible for transmitting the data required for calculations, and the control bus is used for transmitting control information, such as querying the status of peripherals, controlling devices to perform specific operations, and starting or stopping data transmission. The bus module operates through the bus management protocol, and the bus managers on the control bus determine the allocation and priority order of the bus.
X-SB01-985210207
The working principle of the bus module is as follows: when the CPU needs to read or write data, it will send an address to the bus. The address bus transfers an address to memory or peripherals, which return data after searching for the address. Once the data is ready, the data bus will transmit it. At the same time, the control bus will send a signal to notify the CPU that the data is ready and data transmission can begin. In addition to connecting memory and peripherals, bus modules can also connect multiple CPUs, which means that CPUs can share data and tasks. In the field of modern computers, bus modules have become an essential component, and the performance and speed of many computers are closely related to the quality of the bus modules used. Overall, bus modules are an important hardware device that plays an irreplaceable role in computer systems. The transmission through address bus, data bus, and control bus can meet the connection requirements between computer computing and data storage, and improve the overall performance and speed of computer systems.
