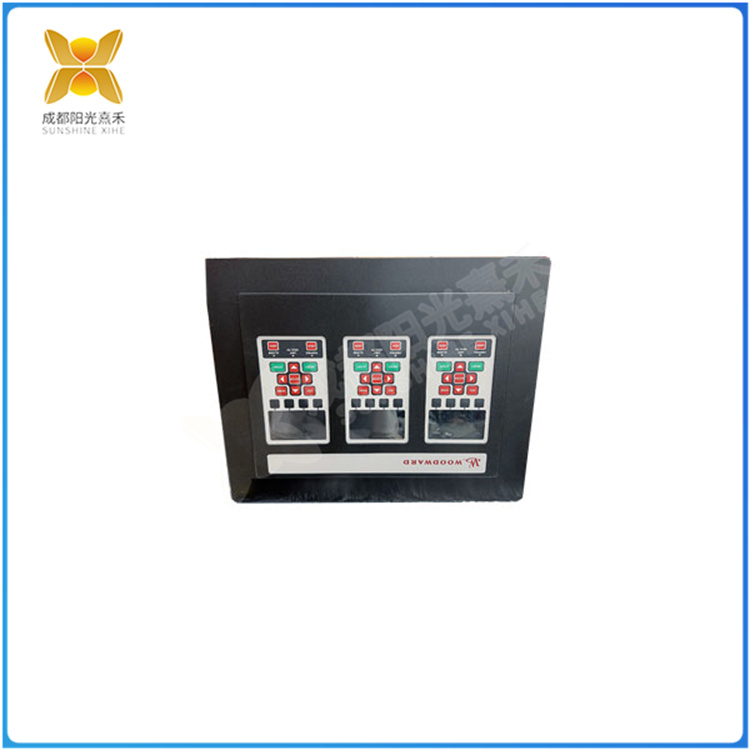

ProTech-GII是一种超速安全装置，旨在在检测到超速或过加速事件时安全关闭各种尺寸的蒸汽、燃气和水力涡轮机。特征：加速度检测：ProTech-GII还可以配置为保护涡轮机免受高加速事件的影响。速度信号的导数用于检测涡轮机加速度并发出相关的跳闸命令。主控板检测：每个模块的速度传感器输入都使用特殊的MPU明线检测电路来验证MPU在涡轮机运行之前是否正确连接，并使用特殊的失速检测逻辑来验证涡轮机运行期间的MPU功能。自动超速测试程序：或者，可以将ProTech-GII配置为定期对每个模块执行超速测试，然后记录并报告测试结果。通过此测试例程，每个模块都会使用内部频率发生器来模拟超速情况，从而完成其测试序列。ProTech-GII采用特殊的保形涂层材料，该材料对H2S和SO2气体具有出色的长期防护能力，其级别符合国际标准IEC 721-3-3 1994-环境等级3C2。ProTech-GII的三重模块设计使用户能够在涡轮机在线并正常运行时轻松更换其中一个模块（A、B、C）。
8237-1600
该装置的背板即插即用结构及其模块间学习功能增强了更换的便利性。ProTech-GII是一种可配置的超速检测系统，旨在在感测到超速或过加速事件时安全关闭各种尺寸的蒸汽、燃气和水力涡轮机。提供两个双冗余跳闸继电器输出，采用3选2投票架构，或三个独立的非投票跳闸继电器输出，带有单独的报警继电器、4–20 mA速度读数和Modbus®通信，使这款超速设备成为可能易于集成到任何涡轮机安全系统中。该ProTech GII型号是一款面板安装、高压/低压电源输入、投票继电器/投票输入安全装置，用于蒸汽轮机超速保护。8237-1600型可配置为与任何尺寸的涡轮机配合使用，只要它由蒸汽、天然气或水提供动力。该过加速装置的速度读数在4至20 mA之间。如果任何尺寸的涡轮机开始危险地加速，该模型将安全地关闭它。
8237-1600
面板安装具有背板结构，易于维修和更换。8237-1600型可以轻松集成到任何涡轮机系统中，并且配备Modbus通信功能。除了加速度检测之外，它还配备了MPU检测。该产品的涂层使其能够抵抗硫污染，可在3C2级环境中使用。它具有IEC 721-3-3 1994国际标准。它使用三个独立的跳闸继电器以及低压和高压电源输入。型号8237-1600还使用三分之二投票架构。该超速检测装置采用三模块设计，可以在系统在线的情况下进行修复。一个模块可以在另外两个模块运行的同时运行。产品8237-1600还可以使用内部发电机和频率执行常规速度测试。
8237-1600
ProTech-GII is an overspeed safety device designed to safely shut down steam, gas, and hydraulic turbines of various sizes when an overspeed or over acceleration event is detected. Feature: Acceleration detection: ProTech-GII can also be configured to protect the turbine from high acceleration events. The derivative of the speed signal is used to detect turbine acceleration and issue relevant trip commands. Main control board detection: Each module’s speed sensor input uses a special MPU open line detection circuit to verify whether the MPU is correctly connected before turbine operation, and uses a special stall detection logic to verify the MPU function during turbine operation. Automatic overspeed testing program: Alternatively, ProTech-GII can be configured to perform periodic overspeed testing on each module, and then record and report the test results. Through this testing routine, each module will use an internal frequency generator to simulate overspeed conditions and complete its testing sequence. ProTech-GII uses a special conformal coating material, which has excellent long-term protection against H2S and SO2 gases, and its level complies with the international standard IEC 721-3-3 1994-environmental level 3C2. The triple module design of ProTech-GII allows users to easily replace one of the modules (A, B, C) while the turbine is online and running normally.
8237-1600
The plug and play structure of the device’s backplane and its inter module learning function enhance the convenience of replacement. ProTech-GII is a configurable overspeed detection system designed to safely shut down steam, gas, and hydraulic turbines of various sizes when an overspeed or over acceleration event is detected. Provide two dual redundant trip relay outputs using a 3-to-2 voting architecture, or three independent non voting trip relay outputs with separate alarm relays, 4-20 mA speed readings, and Modbus ® Communication makes it possible for this overspeed device to be easily integrated into any turbine safety system. This ProTech GII model is a panel mounted, high/low voltage power input, voting relay/voting input safety device used for steam turbine overspeed protection. The 8237-1600 model can be configured for use with turbines of any size, as long as it is powered by steam, natural gas, or water. The speed reading of the over acceleration device is between 4 and 20 mA. If a turbine of any size begins to accelerate dangerously, the model will safely shut it down.
8237-1600
The panel installation has a backboard structure, which is easy to maintain and replace. The 8237-1600 model can be easily integrated into any turbine system and is equipped with Modbus communication function. In addition to acceleration detection, it is also equipped with MPU detection. The coating of this product enables it to resist sulfur pollution and can be used in 3C2 level environments. It has the IEC 721-3-3 1994 international standard. It uses three independent trip relays as well as low-voltage and high-voltage power inputs. Models 8237-1600 also use a two-thirds voting architecture. The overspeed detection device adopts a three module design, which can be repaired when the system is online. A module can run simultaneously with two other modules. Products 8237-1600 can also perform routine speed tests using an internal generator and frequency.
