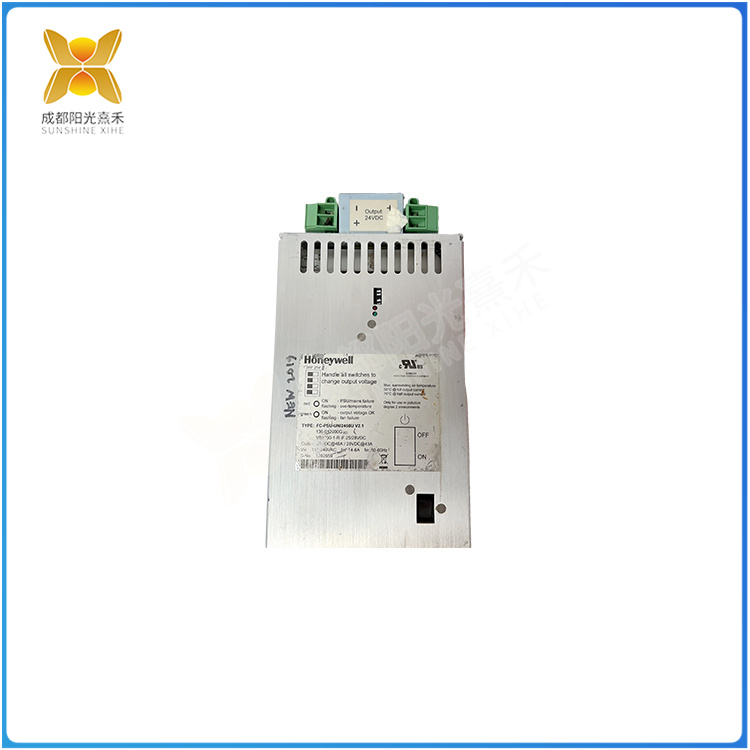

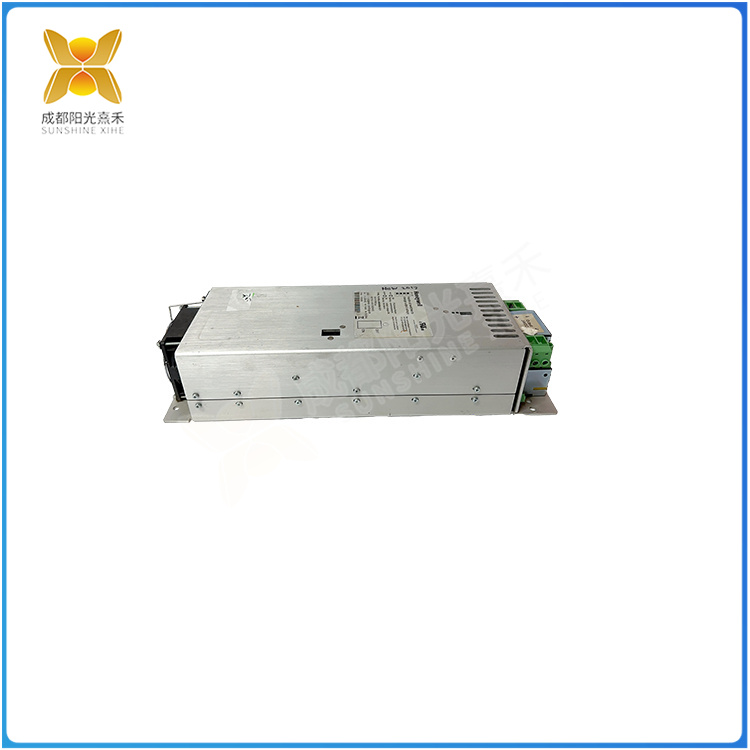

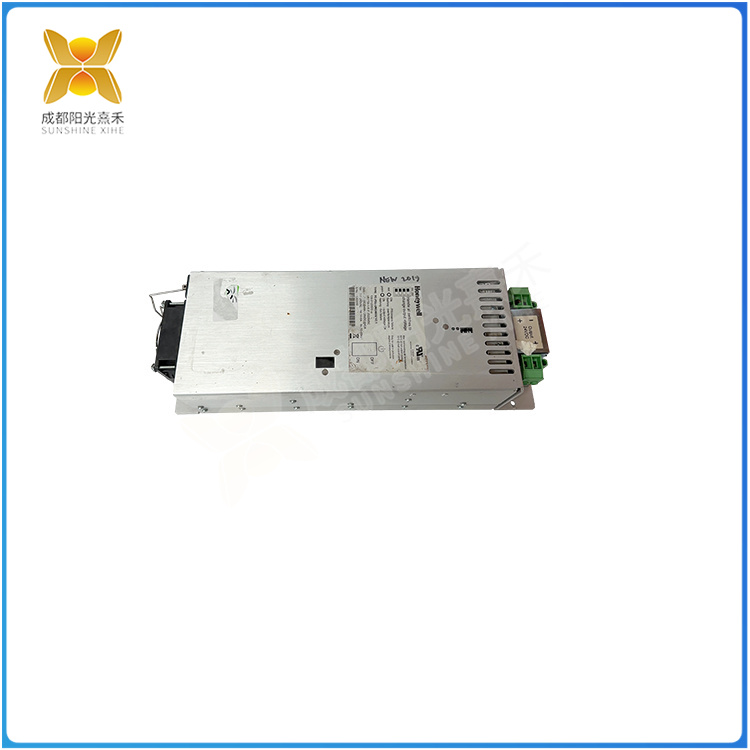

FCPSU-UNI2450U V2.1是一款专为各种电子设备提供稳定可靠电源的电源模块(PSU)。它的输出功率为2450瓦，工作电压为110-240V，适用于不同地区、不同功率标准的使用。V2.1是指电源模块型号的版本号或修订版本。FCPSU-UNI2450U V2.1良好的接地是保证PLC可靠工作的重要条件，可以避免偶然发生的电压冲击危害。PLC的接地线与机器的接地端相接，接地线的截面积应不小于2mm2，接地电阻小于100Ω；如果要用扩展单元，其接地点应与基本单元的接地点接在一起。为了抑制加在电源及输入端、输出端的干扰，应给PLC接上专用地线，接地点应与动力设备（如电机）的接地点分开；若达不到这种要求，也必须做到与其它设备公共接地，禁止与其它设备串连接地。接地点应尽可能靠近PLC。
FC-PSU-UNI2450U V2.1
一般来说，这类模块称为负载 (POL) 电源供应系统或使用点电源供应系统 (PUPS)。由于模块式结构的优点甚多，因此模块电源广泛用于交换设备、接入设备、移动通讯、微波通讯以及光传输、路由器等通信领域和汽车电子、航空航天等。尤其近几年由于数据业务的飞速发展和分布式供电系统的不断推广,模块电源的增幅已经超出了一次电源。模块电源具有隔离作用，抗干扰能力强，自带保护功能，便于集成。随着半导体工艺、封装技术和高频软开关的大量使用,模块电源功率密度越来越大,转换效率越来越高,应用也越来越简单。
FC-PSU-UNI2450U V2.1
FCPSU-UNI2450U V2.1 is a power module (PSU) designed to provide stable and reliable power supply for various electronic devices. Its output power is 2450 watts, with a working voltage of 110-240V, suitable for use in different regions and power standards. V2.1 refers to the version number or revised version of the power module model. A good grounding of FCPSU-UNI2450U V2.1 is an important condition to ensure the reliable operation of PLC, which can avoid accidental voltage surge hazards. The grounding wire of the PLC should be connected to the grounding terminal of the machine, with a cross-sectional area of no less than 2mm2 and a grounding resistance of less than 100 Ω; If an expansion unit is to be used, its grounding point should be connected to the grounding point of the basic unit. In order to suppress interference on the power supply, input and output terminals, a dedicated ground wire should be connected to the PLC, and the grounding point should be separated from the grounding point of power equipment (such as motors); If this requirement cannot be met, it is also necessary to achieve common grounding with other devices and prohibit serial grounding with other devices. The grounding point should be as close as possible to the PLC.
FC-PSU-UNI2450U V2.1
Generally speaking, these types of modules are referred to as load (POL) power supply systems or point of use power supply systems (PUPS). Due to the many advantages of modular structures, modular power supplies are widely used in communication fields such as switching devices, access devices, mobile communication, microwave communication, optical transmission, routers, and automotive electronics, aerospace, etc. Especially in recent years, due to the rapid development of data services and the continuous promotion of distributed power supply systems, the growth rate of modular power supplies has exceeded that of primary power supplies. The modular power supply has isolation function, strong anti-interference ability, built-in protection function, and is easy to integrate. With the widespread use of semiconductor technology, packaging technology, and high-frequency soft switching, the power density of modular power supplies is increasing, the conversion efficiency is getting higher, and applications are becoming simpler.
FC-PSU-UNI2450U V2.1
