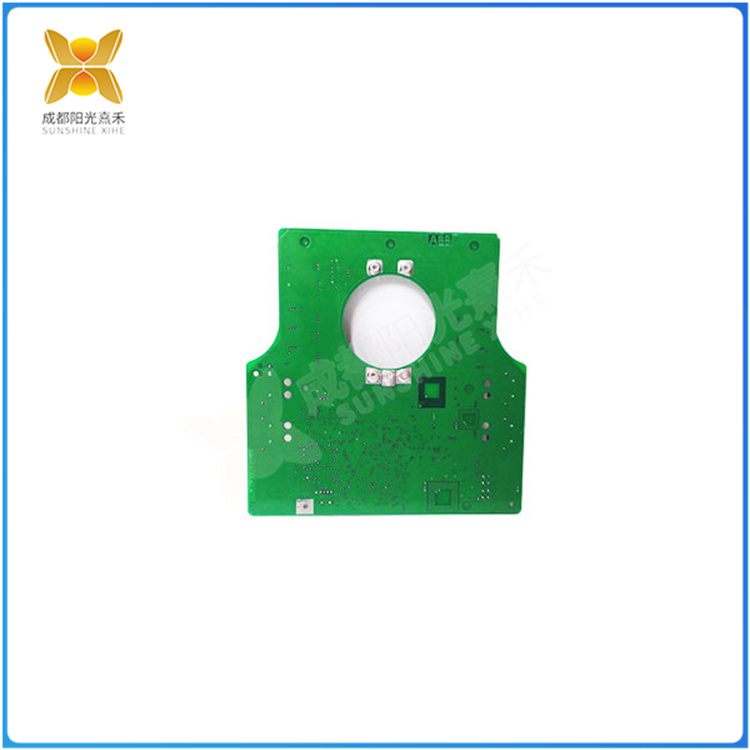

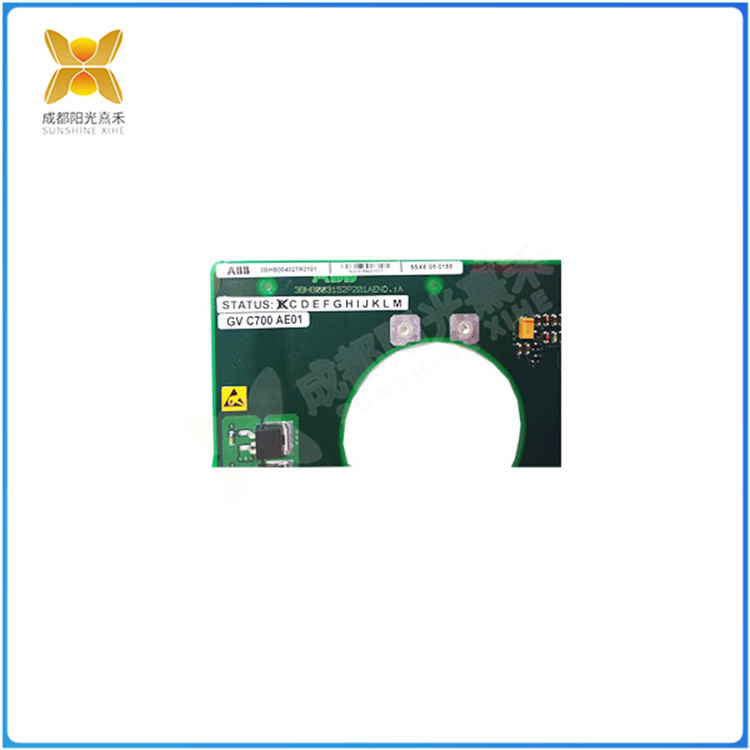

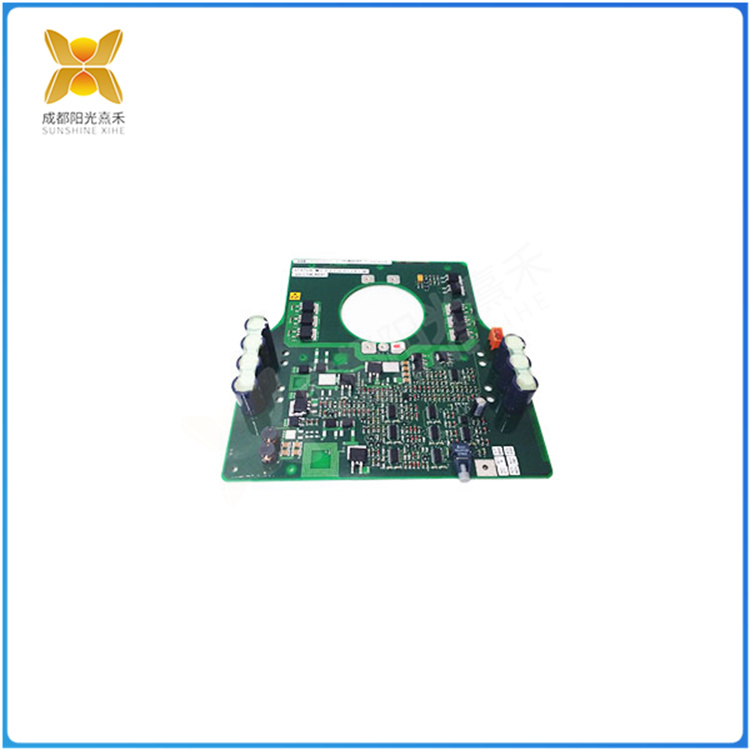

ABB GVC700AE01 半导体可控硅模块 确保其正常工作和延长使用寿命

ABB GVC700AE01 半导体可控硅模块（SCR）是一种大功率半导体器件，通常具有三个PN结的四层结构。它可以通过控制输入信号来实现对输出信号的开关和调节，因此被广泛应用于电力电子领域。可控硅模块的优点包括高可靠性、低功耗、耐高温、寿命长等，同时其开关速度快、控制能力强，可以实现高精度的电流和电压控制。因此，它在许多领域都有广泛的应用，如电机控制、自动控制系统、电网保护、开关电源等。根据不同的用途和功能，可控硅模块可以分为不同的类型。例如，按封装形式可以分为插件式和贴片式；按电流容量可以分为小型和中型；按触发方式可以分为单端触发和双端触发。此外，还有双向可控硅模块、快速可控硅模块、光控可控硅模块等特殊类型。在使用可控硅模块时，需要注意其工作电压、电流和散热等参数，以确保其正常工作和延长使用寿命。同时，还需要注意选择合适的触发电路和控制方式，以实现精确的控制效果。

GVC700AE01

ABB GVC700AE01 半导体可控硅模块作为一种重要的电力控制元件，具有以下特点：高稳定性：可控硅具有高温度稳定性和抗辐射性能，可在恶劣的环境条件下工作，提高设备的可靠性和寿命。高功率密度：可控硅具有较高的功率密度，能够承受较大的电流和电压，适用于高功率应用领域。快速响应：可控硅具有快速的响应速度，可在微秒级别实现开关操作，适用于高频率应用。可控性强：可控硅通过控制控制极的电流或电压来实现对自身通电和断电的控制，具有较高的可控性。较低的导通损耗：可控硅在导通状态时具有较低的电压降和导通电流，降低了能量损耗和热量产生。安装简便：可控硅具有简单的连接方式和结构，安装方便，不需要复杂的散热装置。

GVC700AE01

ABB GVC700AE01 semiconductor thyristor module (SCR) is a high-power semiconductor device that typically has a four layer structure with three PN junctions. It can switch and adjust the output signal by controlling the input signal, so it is widely used in the field of power electronics. The advantages of thyristor modules include high reliability, low power consumption, high temperature resistance, and long service life. At the same time, their fast switching speed and strong control ability can achieve high-precision current and voltage control. Therefore, it has a wide range of applications in many fields, such as motor control, automatic control systems, power grid protection, switching power supplies, etc. According to different purposes and functions, thyristor modules can be classified into different types. For example, according to the packaging form, it can be divided into plug-in type and SMT type; It can be divided into small and medium-sized according to current capacity; According to the triggering method, it can be divided into single end triggering and dual end triggering. In addition, there are special types such as bidirectional thyristor modules, fast thyristor modules, and optoelectronic thyristor modules. When using a thyristor module, attention should be paid to its operating voltage, current, and heat dissipation parameters to ensure its normal operation and extend its service life. Meanwhile, it is also necessary to pay attention to selecting appropriate triggering circuits and control methods to achieve precise control effects.

GVC700AE01

ABB GVC700AE01 semiconductor thyristor module, as an important power control component, has the following characteristics: high stability: thyristor has high temperature stability and radiation resistance, can work under harsh environmental conditions, and improve equipment reliability and lifespan. High power density: Thyristors have a high power density and can withstand large currents and voltages, making them suitable for high-power applications. Fast response: The thyristor has a fast response speed and can achieve switching operation at the microsecond level, suitable for high-frequency applications. Strong controllability: The controllable silicon achieves control over its own power on and off by controlling the current or voltage of the control pole, with high controllability. Lower conduction loss: The thyristor has a lower voltage drop and conduction current in the conduction state, reducing energy loss and heat generation. Easy to install: The thyristor has a simple connection method and structure, making it easy to install without the need for complex heat dissipation devices.

GVC700AE01
