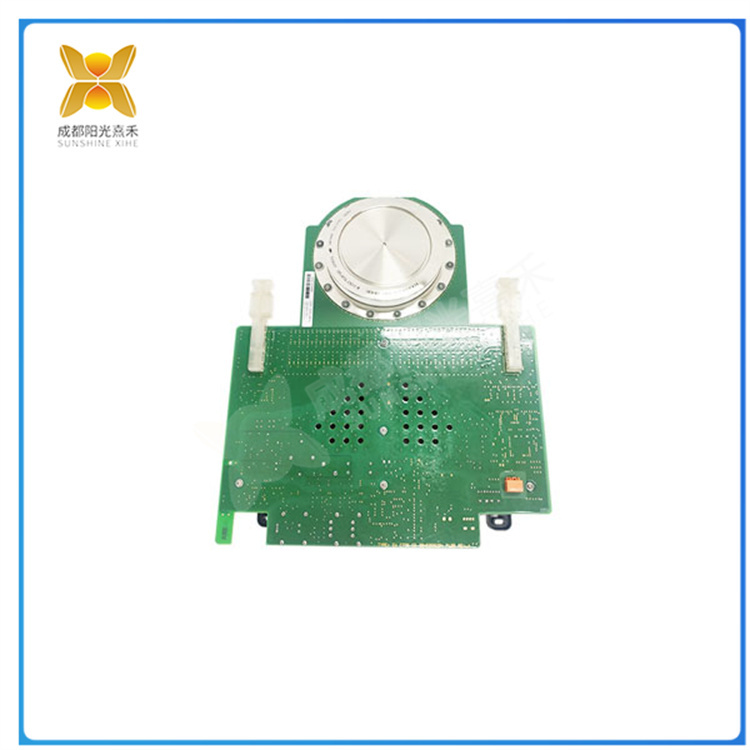

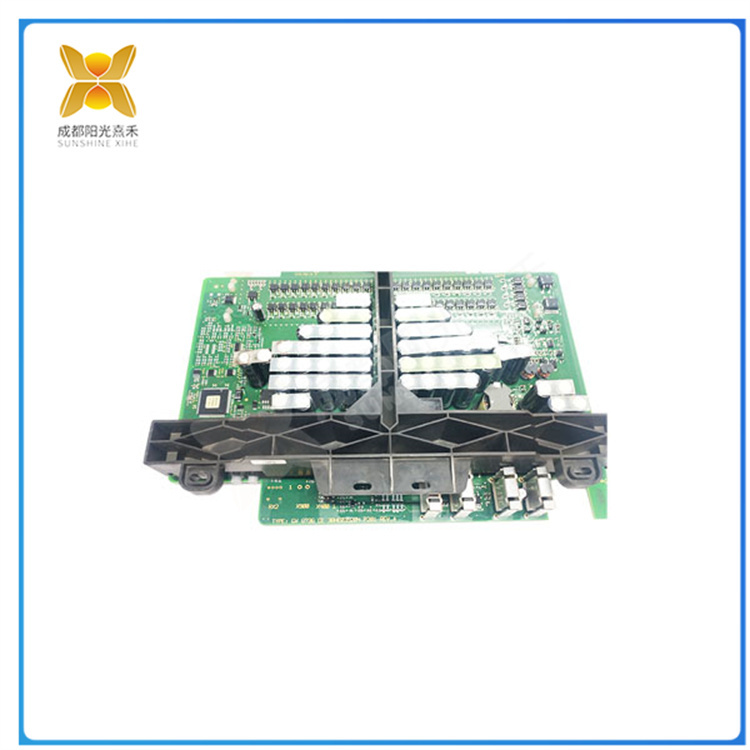

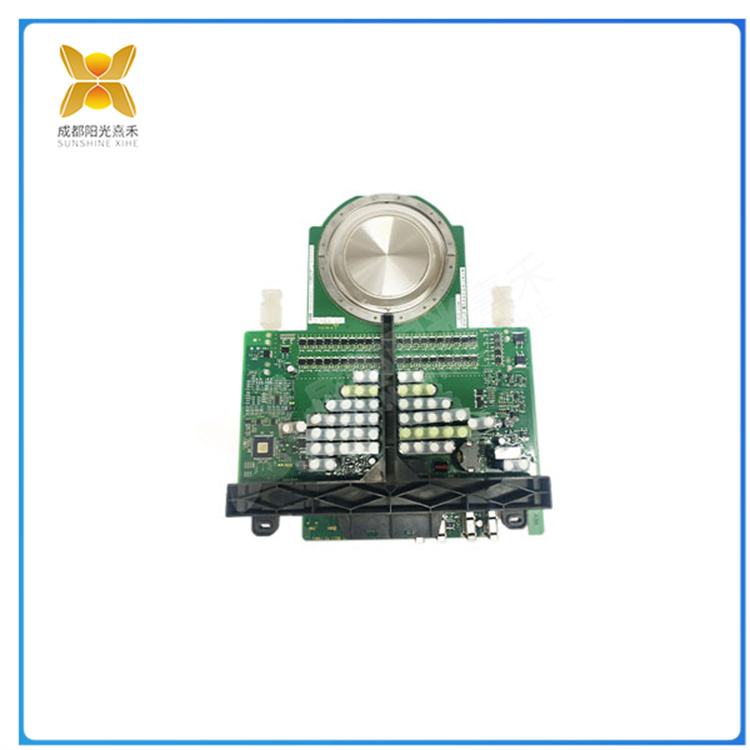

5SHY3545L0014 可控硅晶闸模块 可靠性也在不断提高

5SHY3545L0014 可控硅晶闸模块是一种大功率半导体器件，通常被广泛应用于电力电子领域。它采用模块封装形式，具有三个PN结的四层结构，具有可控性和整流性。根据内部封装芯片的类型，可控硅晶闸模块可以分为可控模块和整流模块两大类。可控硅晶闸模块在具体的应用中可以分为普通晶闸管模块、普通整流管模块、普通晶闸管、整流管混合模块、快速晶闸管、整流管及混合模块、非绝缘型晶闸管、整流管及混合模块、三相整流桥输出可控硅模块、单相（三相）整流桥模块、单相半控桥（三相全控桥）模块以及肖特基模块等。5SHY3545L0014 可控硅晶闸模块的功率模块型号命名通常包括字母和数字，其中字母表示模块的类型，数字表示额定电流和额定电压。

5SHY3545L0014

例如，MTC300-16-413F3D可控硅晶闸模块的额定电流为300A，额定电压为1600V。可控硅晶闸模块的应用范围非常广泛，例如在工业自动化领域中，它可以用于电机控制、变频器、UPS电源等方面；在电力系统中，它可以用于高压直流输电、静止无功补偿等方面；在汽车电子领域中，它可以用于汽车照明、启动电源、电动车控制系统等方面。总之，5SHY3545L0014 可控硅晶闸模块是一种非常重要的功率半导体器件，在许多领域都有着广泛的应用前景。随着科技的不断发展和进步，可控硅晶闸模块的性能和可靠性也在不断提高，为各种应用提供了更加可靠和高效的解决方案。

5SHY3545L0014

5SHY3545L0014 thyristor module is a high-power semiconductor device commonly used in the field of power electronics. It adopts a modular packaging form with a four layer structure of three PN junctions, which has controllability and rectification. According to the type of internal packaging chip, thyristor modules can be divided into two categories: controllable modules and rectifier modules. In specific applications, thyristor modules can be divided into ordinary thyristor modules, ordinary rectifier modules, ordinary thyristors, rectifier hybrid modules, fast thyristors, rectifier and hybrid modules, non insulating thyristors, rectifier and hybrid modules, three-phase rectifier bridge output thyristor modules, single-phase (three-phase) rectifier bridge modules, single-phase half controlled bridge (three-phase fully controlled bridge) modules, and Schottky modules. The power module model name of 5SHY3545L0014 thyristor module usually includes letters and numbers, where letters represent the type of module and numbers represent rated current and rated voltage.

5SHY3545L0014

For example, the rated current of the MTC300-16-413F3D thyristor module is 300A and the rated voltage is 1600V. The application range of thyristor modules is very wide, for example, in the field of industrial automation, it can be used in motor control, frequency converters, UPS power supply, and other aspects; In the power system, it can be used for high-voltage direct current transmission, static reactive power compensation, and other aspects; In the field of automotive electronics, it can be used for automotive lighting, starting power, electric vehicle control systems, and other aspects. In summary, the 5SHY3545L0014 thyristor module is a very important power semiconductor device with broad application prospects in many fields. With the continuous development and progress of technology, the performance and reliability of thyristor modules are also constantly improving, providing more reliable and efficient solutions for various applications.

5SHY3545L0014
