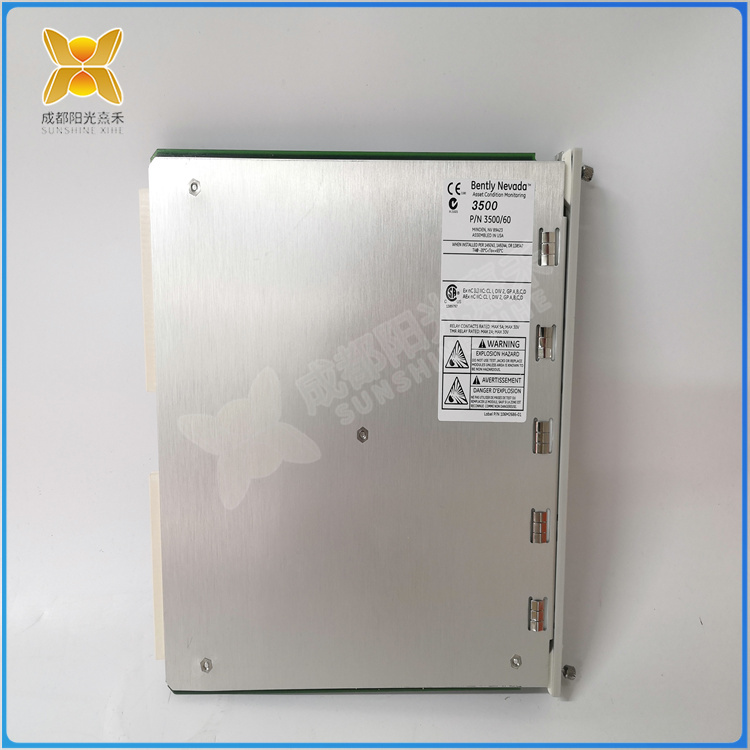

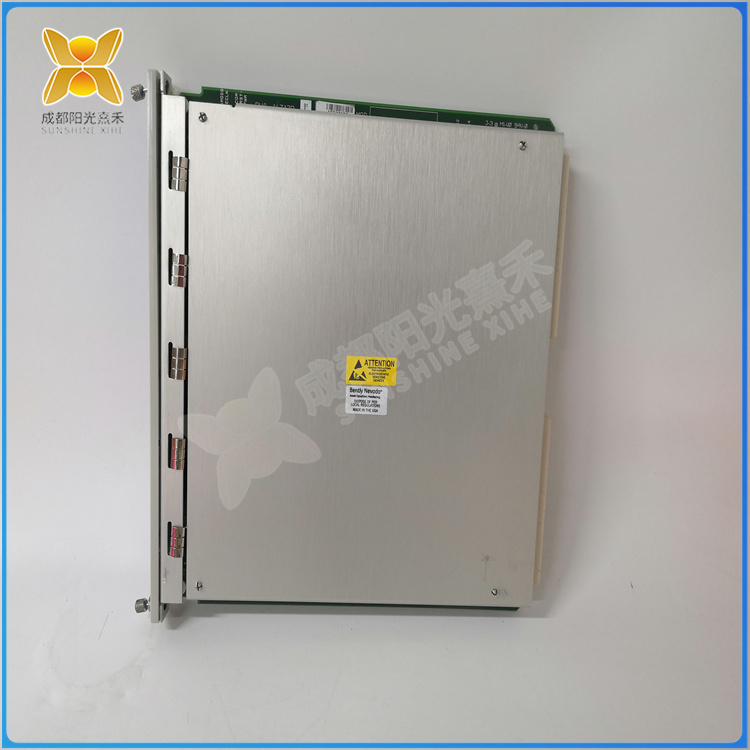

350060 163179-01 框架接口模块 监测系统的正确和正常运行

350060 163179-01 框架接口模块是3500框架的基本接口。它支持本特利用于框架组态并调出机组中信息的专有协议。框架接口模块必须放在框架中的第一个槽位紧靠电源的位置。RIM可以与兼容的本特利通讯处理器，如TDXnet、TDIX和DDIX等连接。虽然RIM为整个框架提供某些通用功能，但它并不是重要监测路径中的一部分，对整个监测系统的正确和正常运行没有影响。每个框架需要一个框架接口模块。350060 163179-01 框架接口模块的特点主要包括：基本接口功能：它是3500框架的基本接口，用于支持本特利用于框架组态并调出机组中信息的专有协议。

350060 163179-01

位置固定性：框架接口模块必须放在框架中的第一个槽位紧靠电源的位置，这是为了确保其能够正确地与框架和其他组件进行通信。连接能力：RIM可以与兼容的本特利通讯处理器，如TDXnet、TDIX和DDIX等连接，从而实现了框架与外部设备或系统的通信。非关键性：虽然RIM为整个框架提供某些通用功能，但它并不是重要监测路径中的一部分。即使RIM出现故障，也不会对整个监测系统的正确和正常运行产生影响。唯一性：每个框架需要一个框架接口模块，这确保了框架与其他组件之间的通信的一致性和稳定性。

350060 163179-01

The 350060 163179-01 framework interface module is the basic interface of the 3500 framework. It supports Bentley’s proprietary protocol for framework configuration and retrieval of information from the unit. The framework interface module must be placed in the first slot of the framework, adjacent to the power supply. RIM can be connected to compatible Bentley communication processors such as TDXnet, TDIX, and DDIX. Although RIM provides some common features for the entire framework, it is not a part of the important monitoring path and has no impact on the correct and normal operation of the entire monitoring system. Each framework requires a framework interface module. The characteristics of the 350060 163179-01 framework interface module mainly include: basic interface function: it is the basic interface of the 3500 framework, used to support Bentley’s proprietary protocol for framework configuration and retrieving information from the unit.

350060 163179-01

Fixed position: The framework interface module must be placed in the first slot of the framework, adjacent to the power supply, to ensure proper communication with the framework and other components. Connectivity: RIM can connect with compatible Bentley communication processors such as TDXnet, TDIX, and DDIX, enabling communication between the framework and external devices or systems. Non critical: Although RIM provides some common features for the entire framework, it is not a part of the important monitoring path. Even if RIM malfunctions, it will not affect the correct and normal operation of the entire monitoring system. Uniqueness: Each framework requires a framework interface module, which ensures consistency and stability in communication between the framework and other components.
