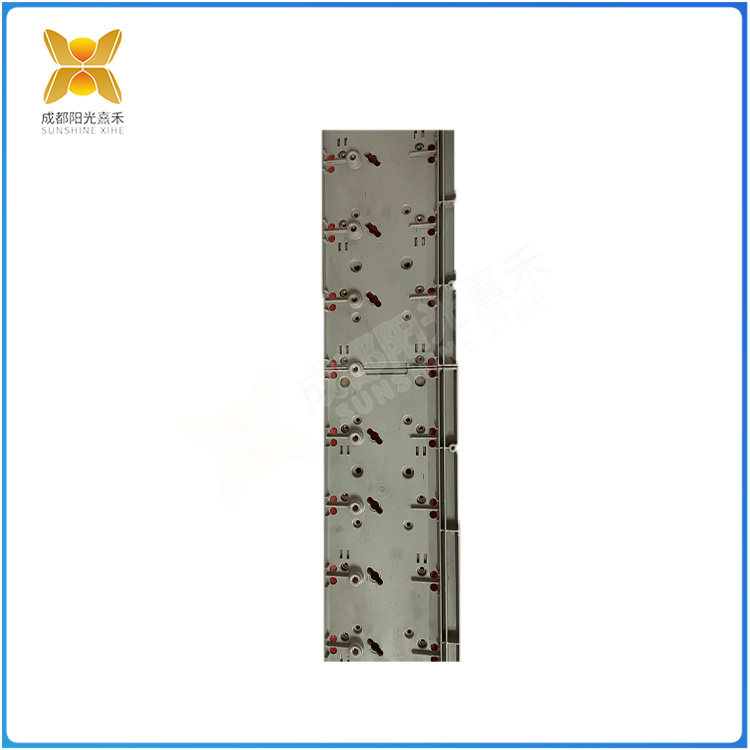

CC-MCAR01 处理器模块 负责接收和处理输入信号

CC-MCAR01处理器模块，尤其是中央处理器（CPU，Central Processing Unit），是一块超大规模的集成电路，是一台计算机的运算核心和控制核心。它的功能主要是解释计算机指令以及处理计算机软件中的数据。从逻辑上，CPU可以划分为三个主要模块：控制单元、运算单元和存储单元，它们通过CPU内部总线相互连接。控制单元是CPU的指挥中心，它负责解析指令，控制程序流程，并将指令发送给执行单元。运算单元是算法的核心，负责执行算术运算和逻辑运算，如加、减、乘、除、移位、逻辑测试或两值比较等。存储单元包括CPU片上缓存和寄存器组，是CPU中数据临时存储的地方，保存等待处理的数据或已处理的数据。此外，现代CPU芯片内部还可能包含其他硬件模块，如寄存器堆（用于存储CPU内部需要处理的数据和状态）、浮点数单元（负责处理浮点运算）、缓存（用于存储CPU内部需要频繁访问的数据以提高访问速度和效率）以及总线（负责传输数据和指令，在CPU内部各个组件之间传递数据）等。这些硬件模块协同工作，使CPU能够高效地执行各种计算任务。在工业自动化领域，处理器模块（如PLC中的CPU模块）也是重要的组成部分，它们负责接收和处理输入信号，执行控制逻辑，并输出控制信号以驱动外部设备。

CC-MCAR01

The CC-MCAR01 processor module, especially the Central Processing Unit (CPU), is a large-scale integrated circuit that serves as the computing and control core of a computer. Its main function is to interpret computer instructions and process data in computer software. Logically, the CPU can be divided into three main modules: control unit, computing unit, and storage unit, which are connected to each other through the internal bus of the CPU. The control unit is the command center of the CPU, responsible for parsing instructions, controlling program flow, and sending instructions to the execution unit. The arithmetic unit is the core of an algorithm, responsible for performing arithmetic and logical operations such as addition, subtraction, multiplication, division, shift, logic testing, or comparison between two values. The storage unit includes the CPU on-chip cache and register set, which are temporary storage locations for data in the CPU, storing data waiting to be processed or processed. In addition, modern CPU chips may also contain other hardware modules, such as register stacks (used to store data and states that need to be processed within the CPU), floating-point units (responsible for handling floating-point operations), cache (used to store frequently accessed data within the CPU to improve access speed and efficiency), and buses (responsible for transmitting data and instructions, and transferring data between various components within the CPU). These hardware modules work together to enable the CPU to efficiently perform various computing tasks. In the field of industrial automation, processor modules (such as CPU modules in PLCs) are also an important component. They are responsible for receiving and processing input signals, executing control logic, and outputting control signals to drive external devices.
