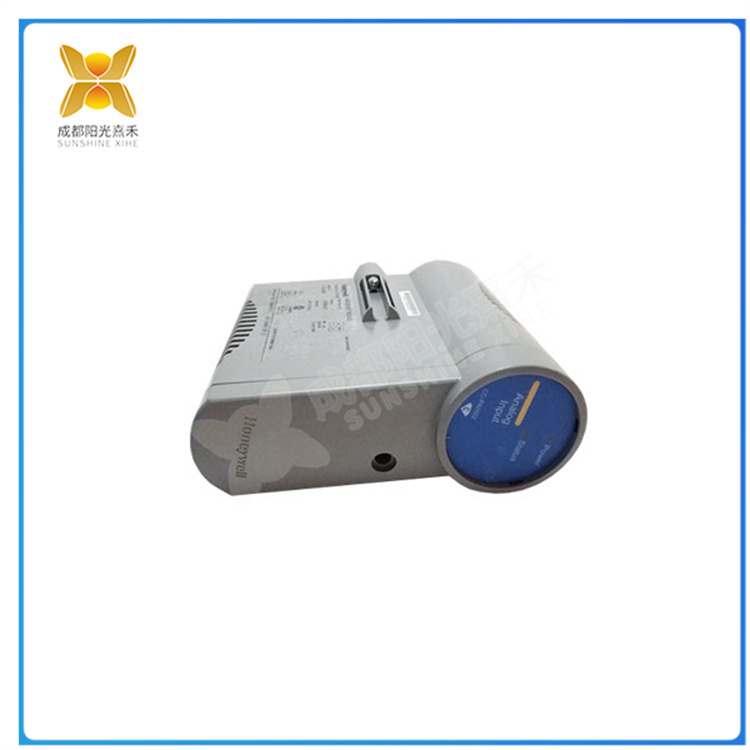

CC-PAIX02 模拟量输入模块 可以采集各种模拟量信号

CC-PAIX02 模拟量输入模块是一款将远程现场的模拟量信号采集至计算机的设备，其利用RS-485总线作为数据通信线路，提供模拟量转485功能，能够同时将模拟量输入至模块，并通过RS-485总线传输至计算机。由于采用RS-485接口作为通信接口，模拟量输入模块能够支持多个模块组合，传输更多路数模拟量信号，并且能够在485线路上分散配置，采用地址码进行区分。此外，模拟量输入模块可以直接接入MODBUS RTU协议的组态软件，方便编程和系统集成。模拟量是表示在一定范围内连续变化的任意取值，跟数字量是相对立的一个状态表示。通常模拟量用于采集和表示事物的电压电流或者频率等参数。因此，模拟量输入模块可以采集各种模拟量信号，如电压、电流、热电偶、热电阻、温度等数值，并将其转换为数字信号，通过RS-485总线传输到计算机进行处理和分析。总之，CC-PAIX02 模拟量输入模块是一种重要的数据采集设备，广泛应用于工业自动化、控制系统、测试测量等领域，为各种应用提供了可靠的模拟量数据采集和传输解决方案。

CC-PAIX02

The CC-PAIX02 analog input module is a device that collects analog signals from remote sites to a computer. It uses the RS-485 bus as a data communication line and provides the function of converting analog signals to 485. It can simultaneously input analog signals to the module and transmit them to the computer through the RS-485 bus. Due to the use of RS-485 interface as the communication interface, the analog input module can support multiple module combinations, transmit more analog signals, and can be dispersed and configured on 485 lines using address codes for differentiation. In addition, the analog input module can be directly connected to the MODBUS RTU protocol configuration software, facilitating programming and system integration. An analog quantity is an arbitrary value that represents continuous changes within a certain range, and is a state representation opposite to a digital quantity. Usually, analog quantities are used to collect and represent parameters such as voltage, current, or frequency of things. Therefore, the analog input module can collect various analog signals, such as voltage, current, thermocouple, thermal resistance, temperature, and other numerical values, and convert them into digital signals, which are transmitted to the computer for processing and analysis through the RS-485 bus. In summary, the CC-PAIX02 analog input module is an important data acquisition device widely used in industrial automation, control systems, testing and measurement fields, providing reliable analog data acquisition and transmission solutions for various applications.
