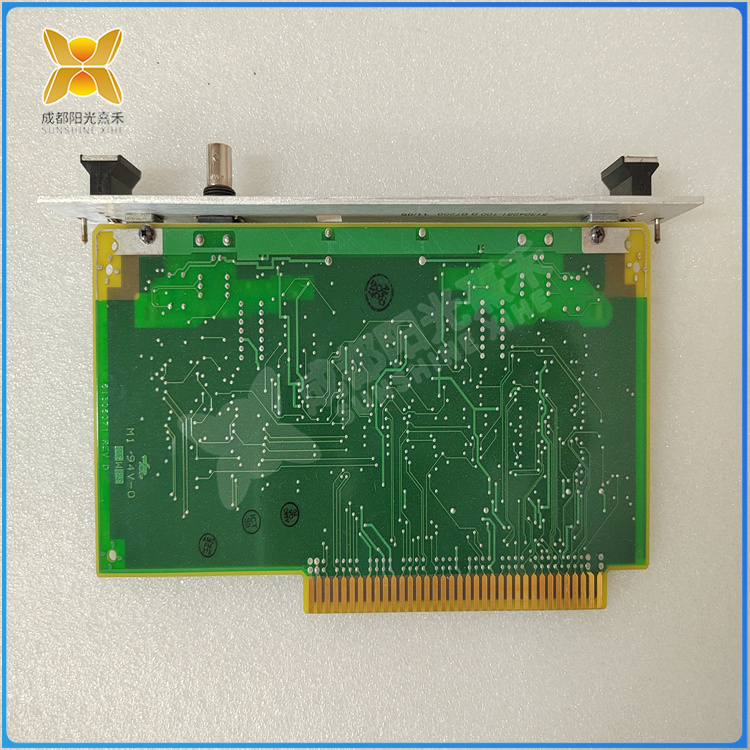

51305072-200 CLCN-A 电源模块 提供所需的直流或交流电源

51305072-200 CLCN-A 电源模块是一种电源转换器，可以直接贴装在印刷电路板上，为各种电子设备提供所需的直流或交流电源。其基本原理包括输入整流滤波器、单片开关电源、高频变压器、漏级钳位保护电路、光耦反馈电路、输出整流滤波器和偏置电路等部分。电源模块按变换方式一般分为AC转DC或DC转DC，具有小体积、高集成度、高性价比和最佳性能指标等特点。它只需要最简的外围电路，配上少量分立式元件即可使用，当产品设计需更改时，只需并联或替换电源模块即可。由于模块式结构的优点颇多，51305072-200 CLCN-A 电源模块广泛用于交换设备、接入设备、移动通讯、微波通讯以及光传输、路由器等通信领域和汽车电子、航空航天等行业。特别是近几年，随着数据业务的飞速发展和分布式供电系统的不断推广，模块电源的增幅已经超出了一次电源。在选择电源模块时，需要考虑操作温度、输入电压、负载能力、效率和价格等因素。操作温度一般可分为商规（0℃~60℃）、工规（-25℃~71℃）和军规（-55℃~85℃）等，需要根据实际系统操作温度范围选用合适的温度等级。输入电压则是指电源模块能正常操作的范围，需要根据前端电源所提供的电压来选择合适的电源模块。总的来说，51305072-200 CLCN-A 电源模块是电子设备中不可或缺的重要组成部分，为设备提供稳定、可靠的电源输出，是电子设备正常运行的重要保障。

51305072-200 CLCN-A

The 51305072-200 CLCN-A power module is a power converter that can be directly mounted on printed circuit boards to provide the required DC or AC power for various electronic devices. The basic principles include input rectifier filters, single-chip switching power supplies, high-frequency transformers, leakage clamp protection circuits, optocoupler feedback circuits, output rectifier filters, and bias circuits. Power modules are generally divided into AC to DC or DC to DC conversion modes, which have the characteristics of small size, high integration, high cost-effectiveness, and optimal performance indicators. It only requires the simplest peripheral circuit and a small number of discrete components to be used. When the product design needs to be changed, it only needs to be connected in parallel or replace the power module. Due to the many advantages of modular structure, the 51305072-200 CLCN-A power module is widely used in communication fields such as switching equipment, access equipment, mobile communication, microwave communication, optical transmission, routers, and automotive electronics, aerospace, and other industries. Especially in recent years, with the rapid development of data services and the continuous promotion of distributed power supply systems, the growth rate of modular power supplies has exceeded that of primary power supplies. When selecting a power module, factors such as operating temperature, input voltage, load capacity, efficiency, and price need to be considered. The operating temperature can generally be divided into commercial regulations (0 ℃~60 ℃), industrial regulations (-25 ℃~71 ℃), and military regulations (-55 ℃~85 ℃), etc. It is necessary to choose the appropriate temperature level according to the actual operating temperature range of the system. The input voltage refers to the range within which the power module can operate normally, and the appropriate power module needs to be selected based on the voltage provided by the front-end power supply. Overall, the 51305072-200 CLCN-A power module is an indispensable and important component in electronic devices, providing stable and reliable power output for the equipment, and is an important guarantee for the normal operation of electronic devices.
