GE IC698PSA100 多功能电源模块

GE IC698PSA100 多功能电源模块

IC698PSA100是一款PACSystem RX7i电源模块，由艾默生自动化制造，以前隶属于GE智能平台(GE IP)。该电源模块安装在任何RX7i标准机架的最左侧插槽，具体来说就是插槽0。它配有螺旋式输入端子，设计用于输入电压范围为85至264 VAC(标称电压为120 / 240 VAC)，频率为47至63 Hz和100至150VDC(标称电压为125 VDC)。必须使用绝缘等级为75°C(167°F)的实心或绞合铜线进行外部电源连接。对于接地连接，使用绝缘等级为75°C(167°F)的12号(3.3 mm2)铜线。GND连接的适当端接可以显著地消除或者减少系统噪声。

IC698PSA100可提供100瓦的最大输出功率，这是所有三(3)个输出端子的总功率，可提供4.875至5.25伏、0-20安、5.1 VDC的标称值；11.64至12.6伏，0-2安，标称+12伏直流电，以及-12.60至-11.64伏，0-1安，标称-12伏直流电。该电源模块的穿越时间最短为15毫秒，保持时间最短为5毫秒。它还具有主动过压和过流限制，特别是在+5v直流电压下的5.7至6.7伏过压保护；+5 VDC输出时为21A+12伏直流电输出时为2.5安，而-12伏直流电输出时为3.5安。

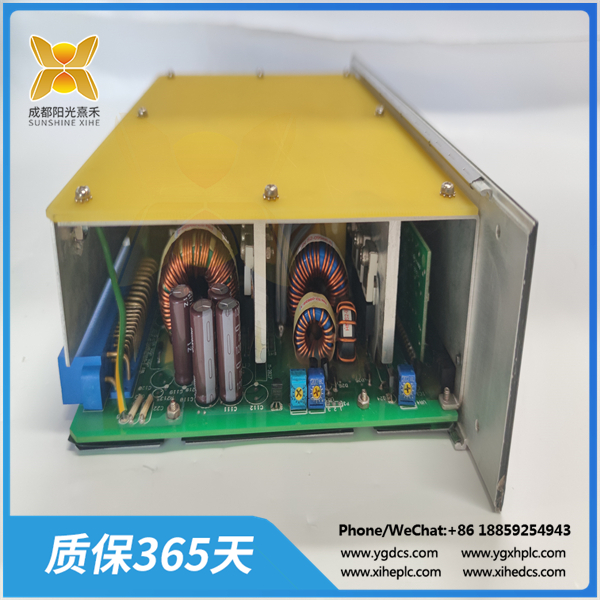

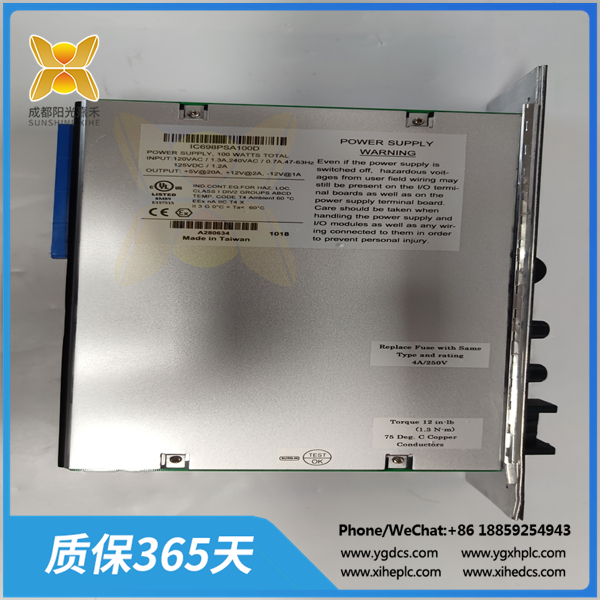

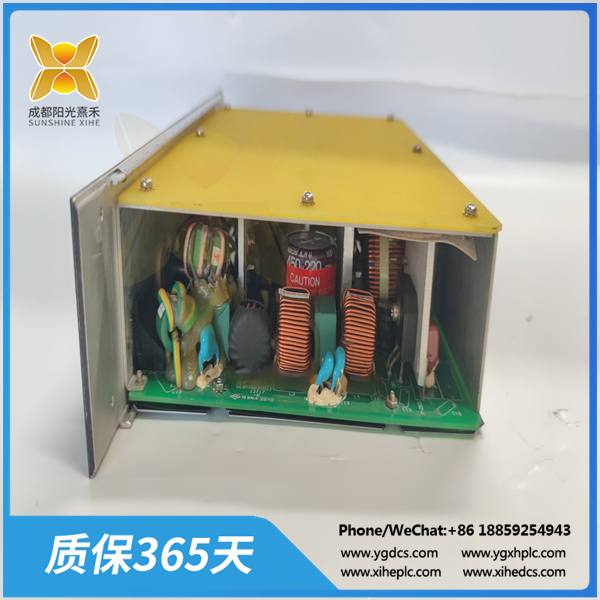

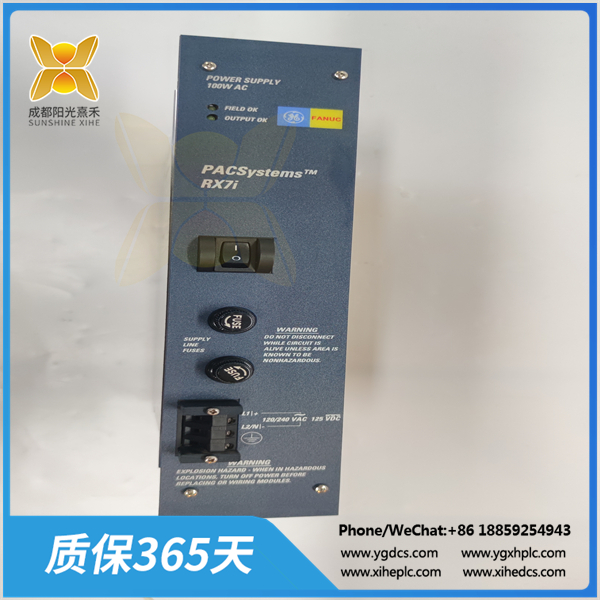

IC698PSA100 is a PACSystem RX7i power module manufactured by Emerson Automation and previously belonged to the GE Intelligent Platform (GE IP). This power module is installed in the leftmost slot of any RX7i standard rack, specifically slot 0. It is equipped with spiral input terminals designed for input voltage ranges of 85 to 264 VAC (nominal voltage 120/240 VAC), frequencies of 47 to 63 Hz and 100 to 150 VDC (nominal voltage 125 VDC). External power connections must be made using solid or twisted copper wires with an insulation rating of 75 ° C (167 ° F). For grounding connections, use 12 gauge (3.3 mm2) copper wire with insulation grade of 75 ° C (167 ° F). Proper termination of GND connections can significantly eliminate or reduce system noise.

The IC698PSA100 can provide a maximum output power of 100 watts, which is the total power of all three (3) output terminals and can provide nominal values of 4.875 to 5.25 volts, 0-20 amperes, and 5.1 VDC; 11.64 to 12.6 volts, 0-2 amperes, nominal+12 volts DC, and -12.60 to -11.64 volts, 0-1 amperes, nominal -12 volts DC. The minimum traversal time of this power module is 15 milliseconds, and the minimum holding time is 5 milliseconds. It also has active overvoltage and overcurrent limitations, especially overvoltage protection of 5.7 to 6.7 volts at+5v DC voltage+ At 5 VDC output, it is 21A+2.5A at 12V DC output, and 3.5A at -12V DC output.
