IS200BPPBH2BMD应用涡轮机控制

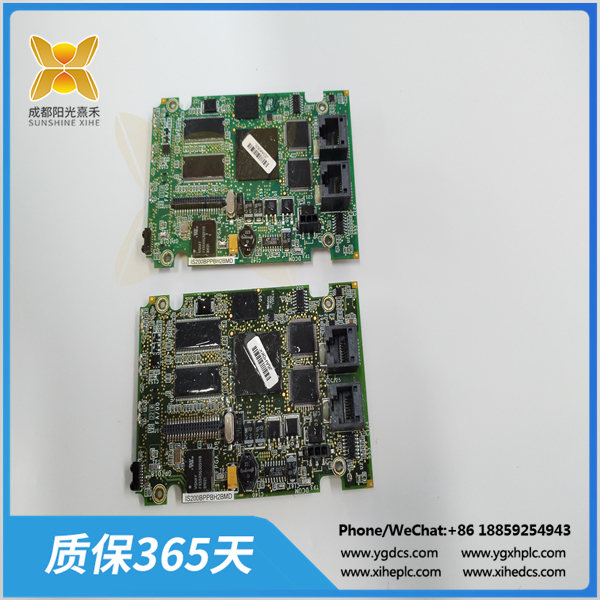

IS200BPPBH2BMD应用涡轮机控制由两个母插头填充。其中之一是三位插头。另一个塞子是长而窄的塞子。该板还有两个母插孔连接器。该板由变压器、晶体管、电感线圈和两个晶体/振荡器组成。

IS200BPPBH2BMD应用涡轮机控制是通用电气制造的Mark VI板组件。MKV专为蒸汽或燃气轮机管理而设计，是GE发布的第五款Speedtronic系统，Speedtronic系列是通用电气从1960年代到世纪之交的主要管理系列。该系统包括一人中央控模块，该模块连接到终板以及允许访问澳机教据、可编程维护工具和警报状态的操作员界面。

IS200BPPBH2BMD应用涡轮机控制是一个小型辅助板，可连接到更大的WETA板，IS200BPPBH2BMD应用涡轮机控制使用穿过四个钻孔的钉连接到其主板。这些位于板的每角落附近。螺钉插入支架，然后插入下面的主板。这块板在三个边缘上有小切口。IS200BPPBH2BMD应用涡轮机控制由两人母插头填充，其中之一是二位插头，另一个插头是长而容的插头，该不有两个母插孔连接器。该板由变乐器、晶体管电感线圈和两个晶体/振荡器组成。它还有两个LED组件，它们沿着电路板的一个边缘并排放置。IS200BPPBH2BMD应用涡轮机控制标有GE标志它还带有Type 6、FA/00和E99006等代码。有关电路板组件、安装程序和安全建议的更多信息，请参见制造商的出版物。当控制站全部断电后，监控画面上两个系统报警红灯亮，通讯中断，数据全部不刷新，所有自调系统完全失控，调节阀将恢复到初始状态，气开阀全关，气关阀全开。此时，应立即紧急处理或停车，同时到现场进行操作。

品牌：	GE/通用电气	型号：	IS200BPPBH2BMD
产品特性：	DCS系统	加工定制：	否
输入电压：	220v	质保	365天
系列：	Mark VI Speedtronic	厂家：	美国

The IS200BPPBH2BMD application turbine control is filled with two female plugs. One of them is a three position plug. The other plug is a long and narrow plug. The board also has two female socket connectors. The board consists of a transformer, transistor, inductor coil, and two crystals/oscillators.

IS200BPPBH2BMD application turbine control is a Mark VI board component manufactured by General Electric. The MKV is designed specifically for steam or gas turbine management and is the fifth Speedtronic system released by GE. The Speedtronic series was General Electric’s main management series from the 1960s to the turn of the century. The system includes a one person central control module, which is connected to the terminal board and allows access to the operator interface of Australian aircraft education data, programmable maintenance tools, and alarm status.

The IS200BPPBH2BMD application turbine control is a small auxiliary board that can be connected to larger WETA boards. The IS200BPPBH2BMD application turbine control uses nails that pass through four drilled holes to connect to its motherboard. These are located near every corner of the board. Insert the screw into the bracket and then insert it into the motherboard below. This board has small incisions on three edges. The IS200BPPBH2BMD application turbine control is filled with two female plugs, one of which is a two position plug and the other plug is a long and spacious plug. There should be no two female socket connectors. The board consists of a variable instrument, a transistor inductor coil, and two crystals/oscillators. It also has two LED components, which are placed side by side along one edge of the circuit board. The IS200BPPBH2BMD application turbine control is marked with the GE logo and also comes with codes such as Type 6, FA/00, and E99006. For more information on circuit board components, installation procedures, and safety recommendations, please refer to the manufacturer’s publications. When the control station is completely powered off, the two system alarm red lights on the monitoring screen light up, communication is interrupted, and all data is not refreshed. All self regulating systems are completely out of control, and the regulating valve will return to its initial state. The air opening valve will be fully closed, and the air closing valve will be fully open. At this time, emergency handling or parking should be carried out immediately, and the operation should be carried out on-site at the same time.
