GE 继电器系统通用电气 URRHH

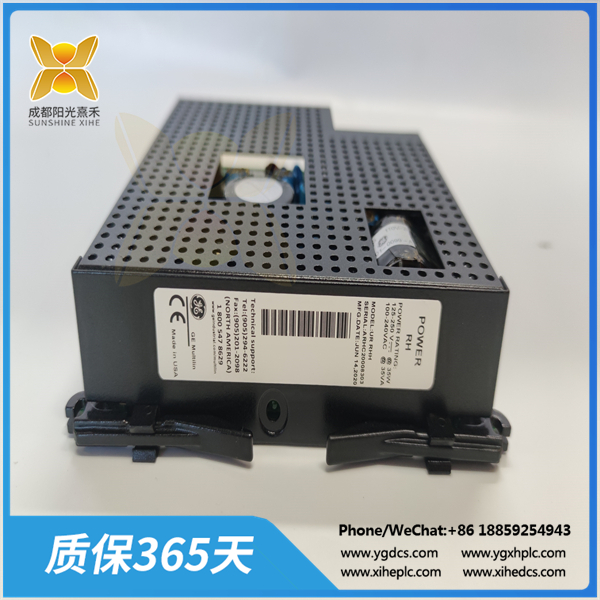

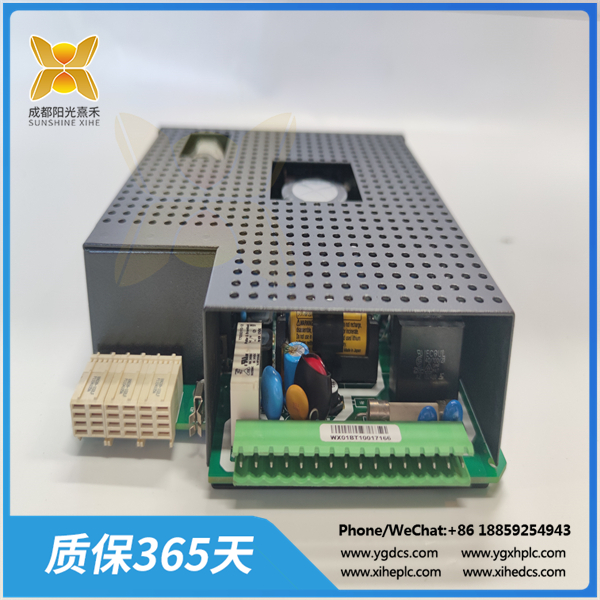

URRHH是一种电源模块，设计用于安装在通用继电器系列中。该模块可订购两种电压范围，可包括或不包括冗余电源选项。低量程(LO)在24至48 V标称电压下工作(仅DC)，而高量程(HI)在125至250 V标称电压下工作(DC和交流)。电源模块能够向继电器供电，也能够向干触点输入连接供电。该电源模块的内部保险丝额定值为4A / 250 V

继电器的自测元件可以自动评估电源模块的健康状况。用于确保设备完整性的主要和次要测试可以评估正确的硬件功能，并在出现严重故障时切断电源模块的电源。如果测试检测到硬件问题或严重故障，系统可以通过位于所有UR设备面板上的led向附近的用户指示这一情况。与电源直接相关的面板led包括持续打开、打开/关闭循环和关闭。

GE URRHH 端子模块的应用领域包括以下几个方面：

工业自动化：GE URRHH 端子模块常用于PLC（可编程逻辑控制器）、DCS（分布式控制系统）、HMI（人机界面）等控制设备，用于连接和管理传感器、执行器、开关等，实现工业过程的自动化控制。
电力能源：在电力行业，GE URRHH 端子模块常用于连接电缆、导线和电力设备，如变压器、开关设备、发电机等，用于电力输送和分配系统。
制造业：在制造业中，GE URRHH 端子模块通常用于控制和连接机械设备、生产线和工艺设备，实现生产过程的控制和监控。
交通运输：GE URRHH 端子模块可能应用于交通信号控制系统、轨道交通系统、机场设施等，用于管理信号和控制设备的连接。
建筑与基础设施：在建筑领域，GE URRHH 端子模块常用于楼宇自动化、智能家居、安防系统等，连接传感器和控制设备。

The GE UR6CH module is a type of General Electric module, and according to my understanding, it is one of GE’s communication modules used for communication and data transmission with GE’s digital control system.

GE UR6CH can provide real-time viewing and data acquisition technology control units for module configuration, viewing real-time data, and checking IO status if necessary. The MODBUS address of the module is configured by the DIP switch The optional IO studio (data acquisition) software provides the same functions as the International Broadcasting Organization studio configuration software, but also provides real-time viewing and data acquisition technology control units/MODBUS trade agreement auxiliary devices such as FDC-IO modules. This software displays real-time data in the form of numerical values, bar charts, trends, and more. And a historical data viewer with a maximum of 1024 tags.

The functions of the GE UR6CH module include:

Data communication: The UR6CH module allows for data communication and exchange with the GE digital control system. It may support different types of communication protocols, such as Modbus, Ethernet, Profibus, etc., to enable connections with other devices or systems.
Data collection and monitoring: This module may have data collection and monitoring functions, which can read data from connected devices or sensors and transmit it to the GE digital control system for further processing and analysis.
Control and regulation: The UR6CH module may be able to receive instructions from the GE digital control system and perform corresponding control and regulation operations. It can communicate with actuators, drivers, or other control devices to achieve automated control of the system.
Fault diagnosis and alarm: This module may have fault diagnosis and alarm functions, which can monitor the system status and identify potential fault situations. It can generate alarms or alarm signals for operators to take corresponding measures.
