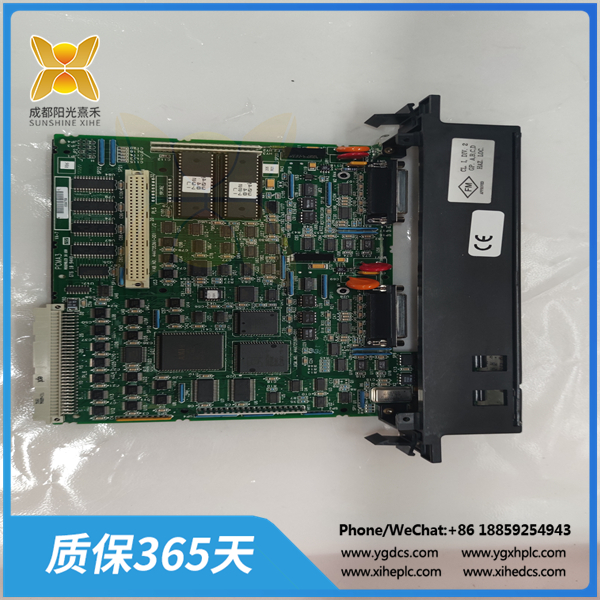

GE IC697CMM711 串行通信协处理器

GE IC697CMM711 串行通信协处理器是 GE Fanuc 自动化解决方案中的一个关键组件，它主要用于增强可编程逻辑控制器(PLC)的串行通信能力。该协处理器可以处理多种串行通信协议，如 RS-232、RS-422、RS-485 以及 MODBUS、PPI、PROFIBUS 等协议，使得 PLC 能够与其他串行设备或网络进行高效、可靠的通信。

GE IC697CMM711 串行通信协处理器的作用包括：

协议转换：协处理器能够接收并解释来自 PLC 的数据，然后将其转换为适合特定串行通信协议的格式，以便与其他设备或网络进行通信。同样，它也能接收来自外部设备的串行数据，并将其转换为 PLC 能够理解的格式。

通信管理：协处理器管理 PLC 与外部设备之间的通信会话，包括建立连接、数据传输和会话终止。它确保数据在传输过程中的完整性和准确性。多通道通信：GE IC697CMM711 通常支持多个串行通信通道，这意味着 PLC 可以同时与多个外部设备进行通信，提高了系统的整体效率和灵活性。

扩展通信能力：通过添加协处理器，PLC 的串行通信能力得到扩展，使得系统能够适应更复杂的通信需求，比如长距离通信、高速数据传输或特定的通信协议要求。

减轻 PLC 负担：协处理器分担了 PLC 的部分通信任务，使得 PLC 能够更专注于控制逻辑的处理，提高了系统的整体性能。

在配置和使用 GE IC697CMM711 串行通信协处理器时，通常需要进行以下步骤：硬件安装：将协处理器插入到 PLC 的相应插槽中，并确保所有连接都正确无误。软件配置：使用 PLC 的编程软件或配置工具，设置协处理器的通信参数，如波特率、数据位、停止位、校验位等，以及定义通信协议和通信地址等。测试与调试：完成配置后，进行通信测试以确保协处理器与 PLC 和外部设备之间的通信正常。可能需要进行一些调试和优化工作，以获得最佳的通信性能。

The GE IC697CMM711 serial communication coprocessor is a key component of the GE Fanuc automation solution, primarily used to enhance the serial communication capability of programmable logic controllers (PLCs). This coprocessor can handle various serial communication protocols, such as RS-232, RS-422, RS-485, as well as MODBUS, PPI, PROFIBUS and other protocols, enabling PLC to communicate efficiently and reliably with other serial devices or networks.

The functions of the GE IC697CMM711 serial communication coprocessor include:

Protocol conversion: The coprocessor is able to receive and interpret data from the PLC, and then convert it into a format suitable for a specific serial communication protocol for communication with other devices or networks. Similarly, it can also receive serial data from external devices and convert it into a format that the PLC can understand.

Communication management: The coprocessor manages the communication sessions between the PLC and external devices, including establishing connections, data transmission, and session termination. It ensures the integrity and accuracy of data during transmission. Multi channel communication: GE IC697CMM711 typically supports multiple serial communication channels, which means that PLCs can communicate with multiple external devices simultaneously, improving the overall efficiency and flexibility of the system.

Expanding communication capability: By adding a coprocessor, the serial communication capability of the PLC is expanded, enabling the system to adapt to more complex communication needs, such as long-distance communication, high-speed data transmission, or specific communication protocol requirements.

Reducing PLC burden: Coprocessors share some of the communication tasks of the PLC, allowing the PLC to focus more on the processing of control logic and improving the overall performance of the system.

When configuring and using the GE IC697CMM711 serial communication coprocessor, the following steps are usually required: hardware installation: insert the coprocessor into the corresponding slot of the PLC and ensure that all connections are correct. Software configuration: Use PLC programming software or configuration tools to set communication parameters for the coprocessor, such as baud rate, data bits, stop bits, check bits, etc., as well as define communication protocols and addresses. Testing and debugging: After completing the configuration, conduct communication testing to ensure normal communication between the coprocessor, PLC, and external devices. Some debugging and optimization work may be required to achieve optimal communication performance.
