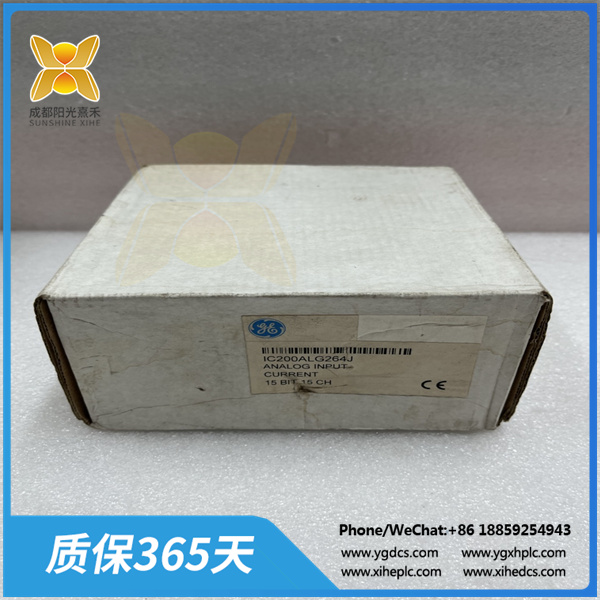

GE/通用电气 IC200ALG264F PLC系统 驱动器

GE/通用电气 IC200ALG264F PLC系统 驱动器

IC200ALG264该模块提供 15 个电流输入接口，并从背板电源接收电力
规格：

●通道数：15个单端，一组

●电压范围：不适用

●电流范围：4-20mA、0-20mA

●更新率：7.5 毫秒

●输入滤波器响应：24 Hz +/-20%

●功耗：+5V 总线 100 mA

特征：

●4-20 mA 或 0-20 mA 输入范围的跳线选择

●15 位转换器分辨率

●可配置软件

●保存最后状态操作的默认选择

●报告现场侧电路的内部电源错误丢失

●报告每个通道的开路错误，但仅在 4-20mA 模式下报告

●当背板电源存在并且内部产生的现场电源正常工作时，绿色 LED 亮起

●尺寸：4.300 英寸 x 1.956 英寸 x 2.630 英寸

GE IS200 系列 PCB 设计高度可靠，可提供多年无故障运行。这些板的设计还易于维护，采用模块化结构，可以轻松更换各个组件。

IC200ALG264 This module provides 15 current input interfaces and receives power from the backplane power supply

Specifications:

● Number of channels: 15 single ended, one group

● Voltage range: Not applicable

Current range: 4-20mA, 0-20mA

Update rate: 7.5 milliseconds

Input filter response: 24 Hz+/-20%

Power consumption:+5V bus 100 mA

Features:

Jumper selection for 4-20 mA or 0-20 mA input range

15 bit converter resolution

● configurable software

● Default selection for saving the final state operation

● Report internal power supply error and loss of on-site circuit

Report open circuit errors for each channel, but only in 4-20mA mode

When the backplane power supply is present and the internal on-site power supply is working properly, the green LED lights up

Dimensions: 4.300 inches x 1.956 inches x 2.630 inches

The GE IS200 series PCB design is highly reliable and can provide years of trouble free operation. The design of these boards is also easy to maintain and adopts a modular structure, making it easy to replace various components.

如果要订货可以联系我们，电话：+86 17350011025  邮箱：1713556114@qq.com
