供应GE/通用电气IC693CHS391

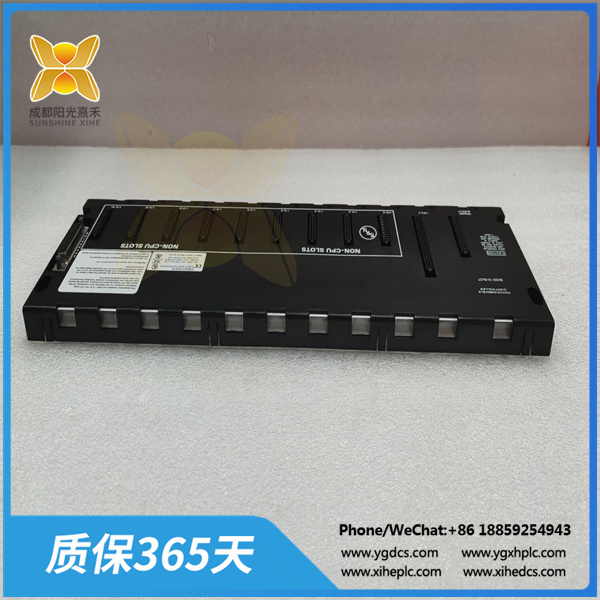

IC693CHS391 是一款模块化 CPU 底板。该底板是GE Fanuc制造的90-30系列的一部分。该器件包含连接端口，允许模块化 CPU、I/O 模块和电源模块安装。它总共有十（10）个插槽，其中一（1）个插槽分配给 CPU，九（9）个插槽分配给 I/O 模块。电源插槽不包括在插槽计数和总线扩展端口中。

由于这是一个模块化的CPU插槽，因此默认情况下为其分配了一个节点地址0，可以通过编程软件进行修改。系统仅支持一（1）个模块化 CPU 插槽。系统中的其他插槽可以是扩展或远程 I/O 底板。

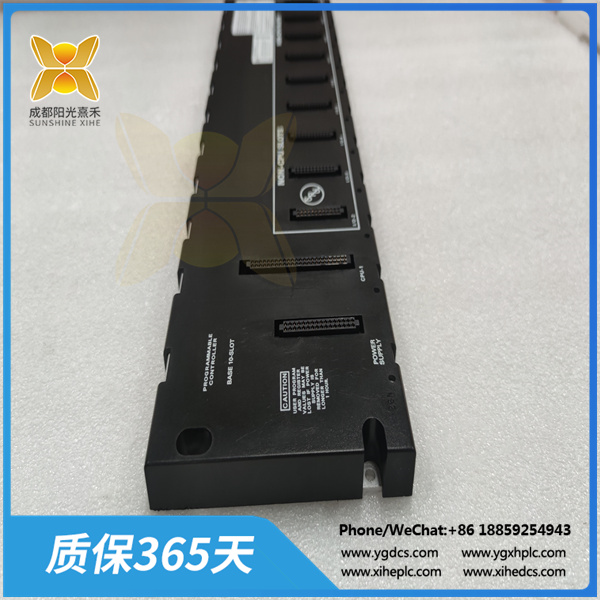

电源安装在最左侧的插槽中，该插槽不包括在插槽计数中，允许此底板支持更多I / O。CPU 仅安装在插槽 1 上，因为此插槽的尺寸特别适合 CPU 连接或特殊选件模块，例如 FIP 总线远程 I/O 扫描程序。插槽编号 2 及更高，特别适合 I/O 或选件模块。扩展或远程 I/O 底板通过底板最右侧的扩展端口连接。根据IC693CHS391托管的CPU，IC4CHS7模块化CPU底板最多支持四（693）或七（391）个扩展底板。此底板仅支持面板安装，通过螺钉和垫圈通过提供的安装孔固定。

IC693CHS391底板是GE发那科制造的扩展底板，配备十个插槽。它的额定电流为 420 mA，额定电压为 5 伏直流电。它配备了一个DIP开关。扩展底板与其他模块一起连接到 90-30 系列 PLC。电源模块插入底板的左侧插槽中。IC693CHS391底板采用模块化尺寸，并具有开放式外壳。如果需要额外的功能，可以轻松安装和更换或更改为其他类型。电源端口位于板的左侧，以及用于 CPU 和非 CPU 插槽的连接插槽。它还在右侧有一个 25 针母连接器，用于连接扩展和远程底板。

IC693CHS391 is a modular CPU motherboard. This base plate is part of the 90-30 series manufactured by GE Fanuc. This device includes connection ports that allow for modular installation of CPUs, I/O modules, and power modules. It has a total of ten (10) slots, with one (1) slot assigned to the CPU and nine (9) slots assigned to the I/O module. The power slot is not included in the slot count and bus expansion ports.

As this is a modular CPU slot, it is assigned a node address of 0 by default, which can be modified through programming software. The system only supports one (1) modular CPU slot. Other slots in the system can be expansion or remote I/O backplanes.

The power supply is installed in the leftmost slot, which is not included in the slot count and allows this motherboard to support more I/O. The CPU is only installed on slot 1 because the size of this slot is particularly suitable for CPU connections or special optional modules, such as FIP bus remote I/O scanning programs. Slot numbers 2 and higher are particularly suitable for I/O or optional modules. The expansion or remote I/O motherboard is connected through the expansion port on the far right side of the motherboard. According to the CPU hosted by IC693CHS391, the IC4CHS7 modular CPU motherboard supports a maximum of four (693) or seven (391) expansion motherboards. This base plate only supports panel installation and is fixed with screws and washers through the provided mounting holes.

The IC693CHS391 motherboard is an extended motherboard manufactured by GE Fanuc, equipped with ten slots. Its rated current is 420 mA and rated voltage is 5 volts DC. It is equipped with a DIP switch. Connect the expansion board together with other modules to the 90-30 series PLC. Insert the power module into the left slot of the motherboard. The IC693CHS391 base plate adopts modular dimensions and has an open housing. If additional features are needed, they can be easily installed and replaced or changed to other types. The power port is located on the left side of the board, as well as the connection slots for CPU and non CPU slots. It also has a 25 pin female connector on the right side for connecting expansion and remote backplanes.
