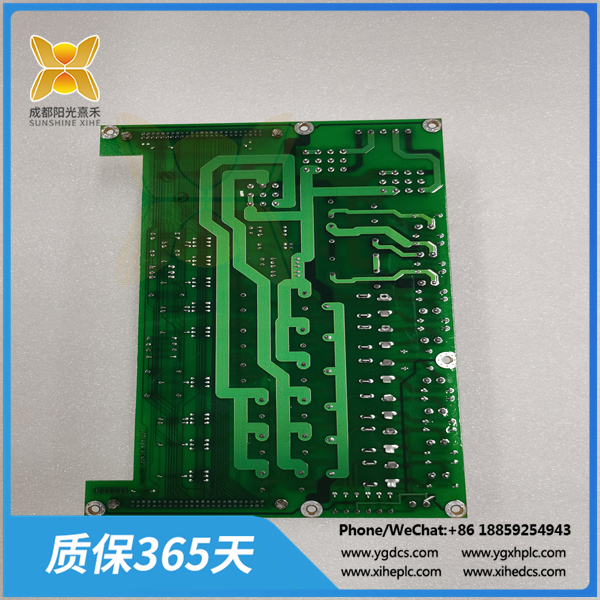

GE 通用电气 IS200JPDFG1A伺服电机控制器

IS200JPDFG1A是作为Mark VI系统部分的阿格组件。该系统是长期运行的Speedtronic系列的部分，该系列由通用电气公司为燃气/蒸汽轮机管理而创建和开发。三十多年来，各种以Speedtronic命名的系统直用于重型涡轮机管理。Mark VI是后一批发布的系统之一包括以太网通信和基于Windows PC的操作界面。

IS200JPDFG1A是IS2020JPDF电源模块的一部分，它由电路板、带直流断路器的金属板结构、输入滤波器、限流电阻和串联二极管组成。如果需要，1S200JPDFG1A可为两个DACA模块提供连接。 IS200JPDFG1A板用于将DC电力分配给DC。1IS200JPDFG1A使用带状电缆连接，通过PPDA板进行直流总线电压和接地故障检测等系统反馈。

IS200JPDFG1A在一条线上有六个拨动开关。其中三个包括一个警告标签，上面写着“注意，切断电源后，等待30秒”。才重新充能。”1200PDFG1A有18个保险丝，每个保险丝都有各自的额定功率。它有14个插头连接器，包括 2位插头(10, )12位插头(2, )和一个9位和5位插头。

IS200JPDFG1A包括金属薄膜电阻、箱式电容、淘瓷电容、TP测试点和一个晶体管。

IS200JPDFG1A is an Arg component that serves as part of the Mark VI system. This system is part of the long-term Speedtronic series, created and developed by General Electric for gas/steam turbine management. For over thirty years, various systems named Speedtronic have been directly used for heavy-duty turbine management. Mark VI is one of the later released systems that includes Ethernet communication and a Windows PC based operating interface.
IS200JPDFG1A is a part of the IS2020JPDF power module, which consists of a circuit board, a metal plate structure with a DC circuit breaker, an input filter, a current limiting resistor, and a series diode. If necessary, 1S200JPDFG1A can provide connections for two DACA modules. The IS200JPDFG1A board is used to distribute DC power to DCs. 1IS200JPDFG1A uses a ribbon cable connection and provides system feedback such as DC bus voltage and ground fault detection through a PPDA board.
IS200JPDFG1A has six toggle switches on one line. Three of them include a warning label that reads “Attention, wait for 30 seconds after cutting off the power”. Only then can it be recharged 1200PDFG1A has 18 fuses, each with its own rated power. It has 14 plug connectors, including a 2-position plug (10,) a 12 position plug (2,) and a 9-position and 5-position plug.
IS200JPDFG1A includes a metal thin film resistor, box type capacitor, ceramic plated capacitor, TP test point, and a transistor.
