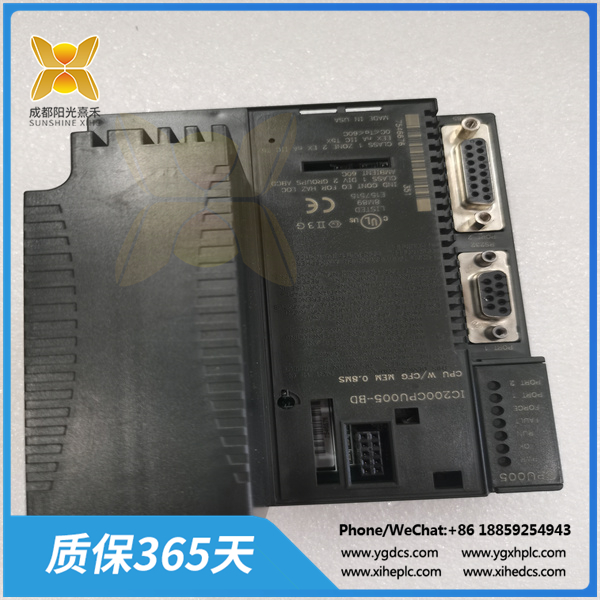

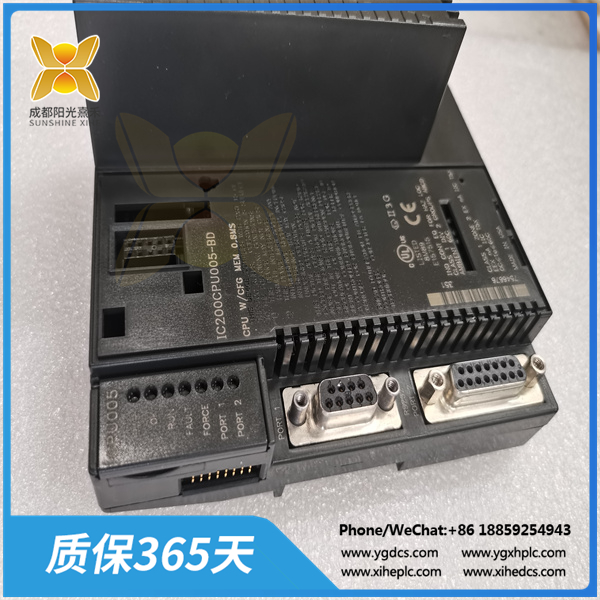

IC200CPU005-VersaMax CPUE05以太网接口艾默生PLC模块

IC200CPU005 CPU是具有用户可配置内存的CPU。它由GE Fanuc为Versamax系列制造。

它设计有用于内部网络的RS-232和RS-485串行端口。通过使用串行端口，可以将CPU连接到编程器或个人计算机进行配置。CPU一次最多可以处理64个模块，最多2048个输入和输出点。它的布尔执行速度为 0.8 m sec/k。IC200CPU005 CPU采用小尺寸设计。

CPU 宽 4.20 英寸，长 5.04 英寸，深 2.72 英寸。CPU 以 35 至 135 毫安的背板电流从 5 伏电源运行。它有一个开放的外壳，应远离喷水。IC200CPU005 CPU已通过不同标准的认证，包括CE。它在 35 伏输出电压下总共消耗 5 毫安，无需使用串行端口转换器。使用转换器时，它在 135 伏输出电压下消耗 5 毫安电流。DIN导轨安装底座用于安装CPU模块。IC200CPU005 CPU配备了一个可拆卸电池，用于为RAM和实时时钟供电。实时时钟在操作期间存储不同的时间事件。CPU 应正确接地，以保护其免受电气损坏。IC200CPU005 CPU采用对流冷却方式进行冷却，因此不应阻碍流向CPU模块的气流。

The IC200CPU005 CPU is a CPU with user configurable memory.It is manufactured by GE Fanuc for the Versamax series.

It is designed with RS-232 and RS-485 serial ports for internal networking. By using the serial ports, the

CPU can be connected to a programmer or a personal computer for configuration.The CPU can handle up to 64 modules at a time, a

The CPU can process up to 64 modules and up to 2048 input and output points at a time. It has a Boolean execution speed of 0.8 m sec/k. The IC200CPU005 CPU has a small footprint.

The CPU is 4.20 inches wide, 5.04 inches long, and 2.72 inches deep.The CPU runs from a 5-volt power supply with 35 to 135 mA of backplane current.

It has an open housing and should be kept away from spraying water.

The IC200CPU005 CPU is certified to various standards, including CE.

It draws a total of 5 milliamps at 35 volts output, eliminating the need for a serial port converter.

When a converter is used, it draws 5 mA at 135 volts output.

The DIN rail mounting base is used to mount the CPU module. the IC200CPU005 CPU is equipped with a removable battery.

The IC200CPU005 CPU is equipped with a removable battery to power the RAM and real-time clock. The real-time clock stores different time events during operation.

The CPU should be properly grounded to protect it from electrical damage.The IC200CPU005 CPU is cooled by convection cooling, so airflow to the CPU module should not be obstructed.
