IC200CPUE05 数字量输出模块 GENRAL electric

IC200CPUE05是GE为VersaMax系列设计的CPU。IC200CPUE05 具有内置接口，可作为最多 64 个模块和最多 2048 个 I/O 点的系统控制器。 IC200CPUE05 有两个串行端口，软件配置用于 SNP 和 RTU 从站、串行 I/O 操作和本地站管理器操作（仅限端口 1）。当任一端口用于 RTU 时，需要自动切换到 SNP 从模式。如果 IC200CPUEO5 处于停止模式并且 CPU 配置为串行 I/O，端口将自动返回到 SNP 从机。如果电源要求在 5VDC 时为 100 mA 或更低，则端口 2 可以为外部设备供电。端口 1 是 RS-232 端口，带有 9 针母连接器。如果端口 1 配置为供 CPU 使用，则可以使用以太网重启按钮强制使用。端口 1 将保持其当前模式，直到 PLC 重新通电或按下以太网重启按钮。端口 2 是一个 R3-485 端口，带有一个带 15 针的母头 D-sub 连接器。该端口可用于程序、配置、 IC200CPUE05的内置以太网接口使在 10BaseT 网络上的通信成为可能。

IC200CPUE05 兼容半双工和全双工操作，由于 CPU 的自动感应，通常无需任何用户配置。由于此内置接口功能，可以处理从主机或其他 GE Fanuc PLC 访问 CPU 数据。 IC200CPUE05 模块是一个用户可配置的 CPU 模块，由 GE Fanuc 制造，是 VersaMax 产品线的成员。它是 VersaMax 产品系列的一部分，在 1 个小型设备中提供所有 PLC 功能。该 CPU 模块最多可与 64 个模块和最多 2048 个 I/O 点配合使用。它还带有 2 个串行端口，分别是 RS-485 和 RS-232 端口，用于主动串行通信。IC200CPUE05 CPU 模块带有内置以太网接口，可以使用编程器软件进行无缝配置。该模块的其他值得注意的规格包括系统闪存和电池供电的 RAM。该装置的额定电流为 650 毫安，输入电压额定值为 3.3 伏直流电。它支持 DIN 导轨安装，并具有 128 KB 的可配置内存容量。该模块实时时钟的精度为 100 ppm，延迟为 -/+ 9 秒。

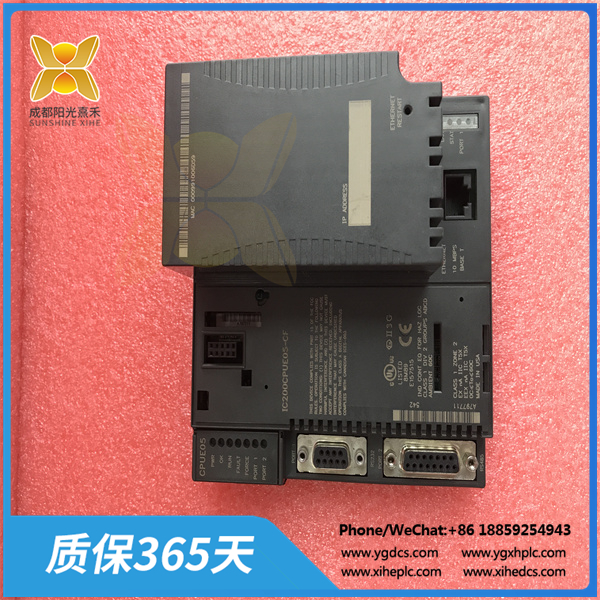

The IC200CPUE05 is GE’s CPU for the VersaMax family.The IC200CPUE05 has a built-in interface to act as a system controller for up to 64 modules and up to 2048 I/O points. The IC200CPUE05 has two serial ports that are software configured for SNP and RTU slave, serial I/O operation, and local station manager operation (port 1 only). When either port is used for RTU, automatic switching to SNP slave mode is required. If the IC200CPUEO5 is in stop mode and the CPU is configured for serial I/O, the port will automatically return to SNP slave. Port 2 can power external devices if the power requirement is 100 mA or less at 5VDC. Port 1 is an RS-232 port with a 9-pin female connector. If Port 1 is configured for use by the CPU, it can be forced to use it using the Ethernet Reboot button. Port 1 will remain in its current mode until the PLC is repowered or the Ethernet Restart button is pressed. Port 2 is an R3-485 port with a female D-sub connector with 15 pins. This port can be used for program, configuration, The IC200CPUE05’s built-in Ethernet interface enables communication over a 10BaseT network.

The IC200CPUE05 is compatible with both half-duplex and full-duplex operation, and usually does not require any user configuration due to auto-sensing by the CPU. Due to this built-in interface feature, access to CPU data from the host computer or other GE Fanuc PLCs can be handled. The IC200CPUE05 module is a user-configurable CPU module manufactured by GE Fanuc and is a member of the VersaMax product line. It is part of the VersaMax product line and provides all PLC functionality in one small device. The CPU module can be used with up to 64 modules and up to 2048 I/O points. It also comes with 2 serial ports, RS-485 and RS-232, for active serial communication.The IC200CPUE05 CPU module comes with a built-in Ethernet interface for seamless configuration using the programmer software. Other noteworthy specifications of the module include system flash memory and battery-powered RAM.The unit is rated at 650 mA and has an input voltage rating of 3.3 VDC. It supports DIN rail mounting and has a configurable memory capacity of 128 KB. The module’s real-time clock has an accuracy of 100 ppm and a latency of -/+ 9 seconds.
