GE Multilin 通用电气 SR750-P1-G1-S1-HI-A20-R-E 馈线管理继电器

通用电气多线750-P1-G1-S1-HI-A20-R简化了流程并延长了系统寿命。Multilin的馈线管理继电器配备了众多保护配电馈线系统的功能，通过其计量和数据记录功能减少了系统组件的压力，并减少了故障排除时间。

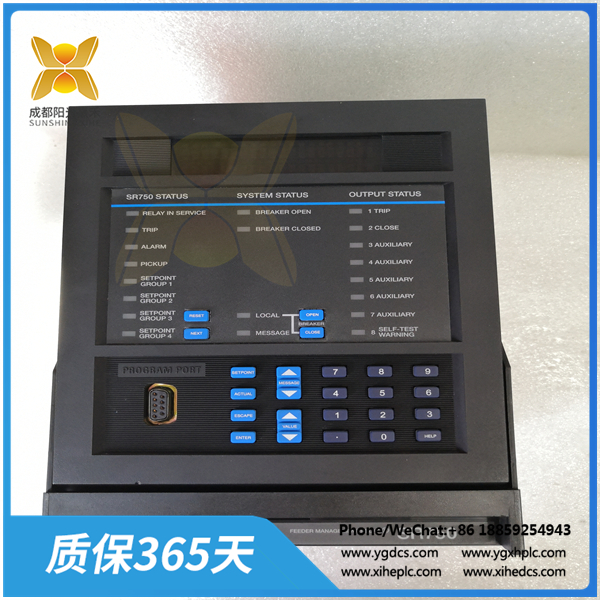

继电器的前面板分为大约四个部分:40字符液晶显示器、键盘、发光二极管和RS232端口。40个字符的液晶显示屏是字母数字显示屏，在不使用时显示各种系统值(可由用户配置)。键盘允许手动设定点配置和继电器的一般导航。led可以指示系统中何时出现问题，并让用户了解活动进程。最后，RS232端口允许在运行EnerVista 750软件的计算机和继电器之间进行简单直接的连接。
750-P1-G1-S1-嗨-A20-R包括一个计量功能，可以确定电压、频率、瓦特小时成本、负载-行程百分比、运行和最大需求等值。当超过断路器维护阈值时，继电器可以使用其计量功能触发警报。警报可以通过继电器的20个上述发光二极管来指示。可通过密码保护实施额外的安全措施，以防止未经授权调整设定值。这种密码保护既适用于从继电器前端进行手动编辑，也适用于通过EnerVista 750程序进行编辑。对于手动输入设定值配置，必须在后端安装一个跳线。

The General Electric Multiline 750-P1-G1-S1-HI-A20-R simplifies processes and extends system life.Equipped with numerous features to protect distribution feeder systems, Multilin’s feeder management relays reduce stress on system components and decrease troubleshooting time through their metering and data logging capabilities.
The front panel of the relay is divided into approximately four sections: a 40-character LCD display, keypad, light-emitting diode, and RS232 port.The 40-character LCD is an alphanumeric display that shows various system values (user-configurable) when not in use. The keypad allows for manual setpoint configuration and general navigation of the relays. the led indicates when a problem is occurring in the system and keeps the user informed of active processes. Finally, the RS232 port allows a simple and direct connection between a computer running the EnerVista 750 software and the relay.
The 750-P1-G1-S1-Hi-A20-R includes a metering feature that determines values for voltage, frequency, watt-hour cost, load-trip percentage, operating and maximum demand. The relay can use its metering function to trigger an alarm when circuit breaker maintenance thresholds are exceeded. Alarms can be indicated by the relay’s 20 aforementioned light-emitting diodes. Additional security measures can be implemented through password protection to prevent unauthorized adjustment of setpoints. This password protection applies both to manual editing from the front of the relay and to editing via the EnerVista 750 program. For manual setpoint entry configurations, a jumper must be installed at the rear end.
