GE IC695PSA040 自动化电源模块 I/O 模块

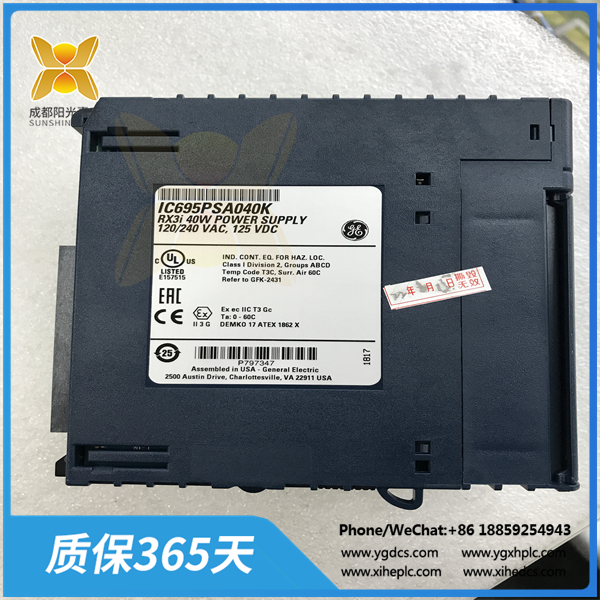

IC695PSA040是GE Fanuc RX3i系列的120/240伏交流或125伏DC、40瓦电源。它可以与交流或直流输入电源一起工作。其工作电压为85-264伏交流电或100-300伏直流电。

RX3i电源有三个输出:

+3.3 VDC -供具有IC695目录号的RX3i模块内部使用。

+5.1伏直流电

+24 VDC继电器-可用于为输出继电器模块上的电路供电。

PACSystems RX3i电源是一个可扩展的机架式系统，可在独立模块之间提供快速一致的控制。用户可以开发和维护自己的自定义控件功能。这包括观想、运动和网络。

另一个伟大的功能是PACMotion控制器，它提供了在您的业务中使用高级机器自动化所需的所有灵活性和机器逻辑。

尽管是专门为支持PACSystem RX3i而设计的，通用背板中一次只能安装一个IC695PSA040电源。该电源与其他RX3i电源不兼容，无论是在增加容量还是冗余模式下。

电源有四个指示灯，用于指示电源的状态。电源指示灯位于顶部，当背板通电时为绿色，如果电源开关关闭，则为琥珀色。当P/S故障LED发红光时，电源出现故障，没有向背板提供电压。当电源接近或高于最高工作温度时，过热指示灯呈琥珀色亮起。当电源接近或超过任何输出的最大输出能力时，过载LED会发出琥珀色光。

重要的是，该装置的门在操作过程中保持关闭。这可以防止电击危险，电击危险可能会导致严重或致命的伤害。

The IC695PSA040 is a 120/240 volt AC or 125 volt DC, 40 watt power supply for the GE Fanuc RX3i series. It can operate with either AC or DC input power. It operates from 85-264 volts AC or 100-300 volts DC.

The RX3i power supply has three outputs.

+3.3 VDC – for internal use by RX3i modules with IC695 catalog number.

+5.1 VDC

+24 VDC relay – can be used to power circuits on output relay modules.

The PACSystems RX3i power supply is a scalable rack-mounted system that provides fast and consistent control between independent modules. Users can develop and maintain their own custom control features. This includes viewing, motion and networking.

Another great feature is the PACMotion controller, which provides all the flexibility and machine logic needed to use advanced machine automation in your business.

Although specifically designed to support the PACSystem RX3i, only one IC695PSA040 power supply can be installed at a time in the universal backplane. This power supply is not compatible with other RX3i power supplies, either in increased capacity or redundancy mode.

The power supply has four indicator lights to indicate the status of the power supply. The power indicator is located at the top and is green when the backplane is energized and amber if the power switch is off. When the P/S Fail LED glows red, the power supply has failed and is not supplying voltage to the backplane. The Overheat LED glows amber when the power supply is near or above the maximum operating temperature. The Overload LED glows amber when the power supply is near or above the maximum output capacity of any output.

It is important that the unit’s door remains closed during operation. This prevents the risk of electric shock, which can result in serious or fatal injury.
