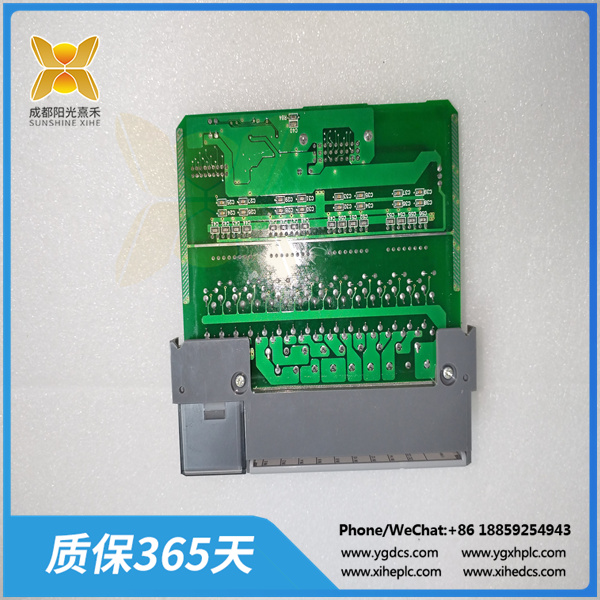

1746-IB16控制器

Allen-Bradley 1746-IB16 是一款中密度直流输入模块，用于与信号设备连接，为模块的每个输入通道提供 10-30VDC 的信号电压范围。该模块具有十六（16）个输入通道，额定输入电压为 24VDC，分为一（1）个输入组，具有一个公共端子。此输入模块安装在 1746-机箱的任何可用 I/O 插槽上，并消耗 0.05 A @ 5VDC 的背板电流。

1746-IB16 仅支持灌电流接线配置。它用于与电气元件连接，例如开关，包括限位器、接近器、按钮装置以及继电器、接触器和其他电子设备的辅助触点。1746-IB16 的每个输入通道在 ON 和 OFF 转换中都表现出 8 ms 的通用信号延迟持续时间，zui大关断状态电压为 5VDC，zui大关断状态电流为 1 mA，而模块的标称输入电流为 8 mA @ 24VDC。

1746-IB16 的安装实例数量因安装的 SLC500 CPU 而异。具体来说，取决于 CPU 内存支持的 I/O 数量。该模块也可以安装在本地、安装 SLC 500 CPU 的机架或分布式 I/O 机箱中，以及 1746 通信适配器，例如远程 I/O （RIO）和以太网适配器模块。该模块带有状态 LED 指示灯，可指示每个输入通道的启动，以简化监控和故障排除。它还具有可拆卸接线端子，便于端接和模块更换。

1746-IB16 在 ON 和 OFF 转换中的zui大信号延迟时间为 8ms，而模块在 OFF 状态下的zui大压降为 5V DC。它的zui大漏电流为 1mA，整个模块在 8V DC 时的标称输入电流为 24mA。

1746-IB16 每个输入点的净散热为 0.22W，整个模块的总散热为 3.6W。在相对湿度为 0% 的环境中，其工作温度范围在 60 至 32 °C（140 至 5 °F）之间，不使用时，应存放在 -95 至 40 °C（-85 至 40 °F）的温度范围内。185-IB1746 经测试的工作冲击额定值为 16G，设计用于在 30-2 Hz 工作频率下承受 5.57G 的工作振动。它具有 NEMA 标准 ICS 200-2 额定抗噪性，并通过 UL-A230、CSA 和 C-UL I 类 196 区危险环境等级。它在输入端子和控制逻辑之间提供 2V 的光电隔离测试，并通过了 UL、CSA 和 CE 认证。

The Allen-Bradley 1746-IB16 is a medium-density DC input module designed to interface with signaling devices to provide a signal voltage range of 10-30VDC for each input channel of the module. The module has sixteen (16) input channels rated at 24VDC divided into one (1) input group with a common terminal. This input module mounts to any available I/O slot in the 1746-chassis and draws 0.05 A @ 5VDC backplane current.

The 1746-IB16 supports only current-flooded wiring configurations. It is used to interface with electrical components such as switches, including limiters, proximity devices, and pushbutton devices, as well as auxiliary contacts for relays, contactors, and other electronic devices. each input channel of the 1746-IB16 exhibits a general purpose signal delay duration of 8 ms on both ON and OFF transitions, a zui off-state voltage of 5VDC, and a zui off-state current of 1 mA, while the The nominal input current of the module is 8 mA @ 24VDC.

The number of installed instances of the 1746-IB16 varies depending on the SLC500 CPU installed. Specifically, it depends on the number of I/Os supported by the CPU memory. The module can also be installed locally, in a rack or distributed I/O chassis with SLC 500 CPUs installed, and with 1746 communication adapters such as Remote I/O (RIO) and Ethernet adapter modules. The module has status LEDs that indicate the startup of each input channel to simplify monitoring and troubleshooting. It also features removable terminals for easy termination and module replacement.

The 1746-IB16 has a maximum signal delay time of 8ms between ON and OFF transitions, and the module’s maximum voltage drop in the OFF state is 5V DC. It has a maximum leakage current of 1mA, and the nominal input current of the entire module is 24mA at 8V DC.

The 1746-IB16 has a net heat dissipation of 0.22 W per input and a total heat dissipation of 3.6 W for the entire module. It has an operating temperature range of 60 to 32 °C (140 to 5 °F) at 0% relative humidity, and should be stored in a temperature range of -95 to 40 °C (-85 to 40 °F) when not in use. 185-IB1746 Tested Operating The 185-IB1746 has a tested operating shock rating of 16 G and is designed to withstand 5.57 G of operating vibration at an operating frequency of 30-2 Hz. It is NEMA standard ICS 200-2 rated for noise immunity and UL-A230, CSA, and C-UL Class I, Zone 196 hazardous environment rating. It provides 2V opto-isolation testing between input terminals and control logic and is UL, CSA, and CE certified.
