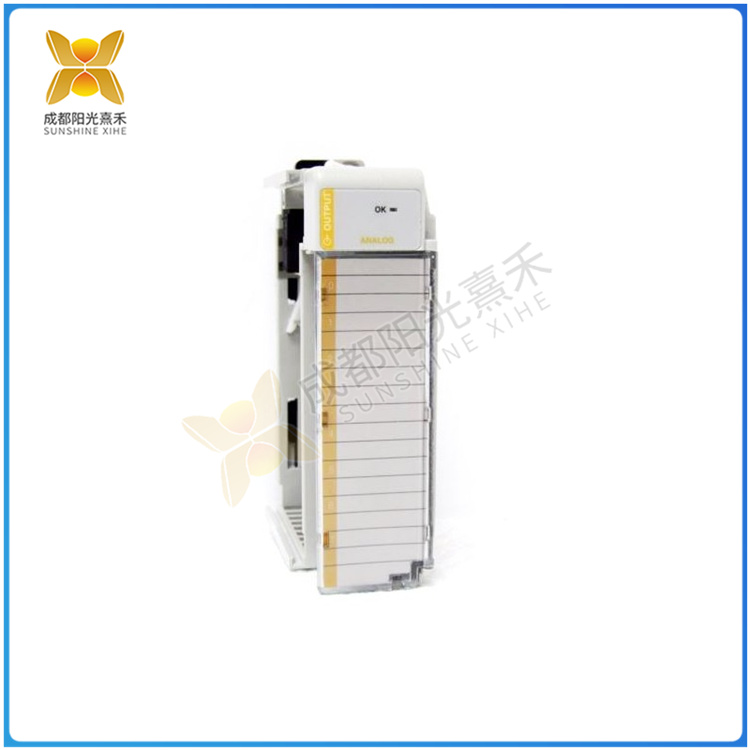

AB罗克韦尔 8路电流型模拟量输出模块PLC 1769-OF8C

In stock

Allen-Bradley 1769-OF8C是紧凑型输入/输出模块。该模块与1769和某些1768 CompactLogix控制器以及MicroLogix 1500控制器兼容使用。该模块是一个模拟输出模块，通常用于驱动控制回路的最终控制元件(FCE)以及向接收和测量元件发送信号。1769-OF8C主要具有八(8)个单端电流输出通道，可配置为0-20 mA和4-20 mA。它内置16位数模转换器(DAC ),分辨率分别为15.59位、0.323 A/位(适用于4-20 mA电流)和15.91位、0.323 A/位(适用于0-20 mA电流)。所有通道的转换速率均为5ms，63%输出的阶跃响应小于2.9 ms，模拟输出范围为0-21 mA和3.2-21 mA。

电话/Phone：17350011025 (微信同号)
邮箱/Email：1713556114@qq.com
QQ：1713556114

Categories: AB

AB罗克韦尔 8路电流型模拟量输出模块PLC 1769-OF8C

Allen-Bradley 1769-OF8C是紧凑型输入/输出模块。该模块与1769和某些1768 CompactLogix控制器以及MicroLogix 1500控制器兼容使用。该模块是一个模拟输出模块，通常用于驱动控制回路的最终控制元件(FCE)以及向接收和测量元件发送信号。

1769-OF8C主要具有八(8)个单端电流输出通道，可配置为0-20 mA和4-20 mA。它内置16位数模转换器(DAC ),分辨率分别为15.59位、0.323 A/位(适用于4-20 mA电流)和15.91位、0.323 A/位(适用于0-20 mA电流)。所有通道的转换速率均为5ms，63%输出的阶跃响应小于2.9 ms，模拟输出范围为0-21 mA和3.2-21 mA。

可由1769-OF8C驱动的典型最终控制元件(FCE)是调制控制阀、变频驱动器(VFD)、定位器和其他设备。为了在自动控制回路中使用，该模块可以集成到嵌入在处理器内的比例+积分+微分(PID)控制器中。可以从该设备接收信号的兼容接收和测量元件是面板仪表、数据记录器、信号分离器和其他类似类型的设备。

1769-OF8C是一个单宽模块，可作为本地I/O和扩展I/O机架的一部分安装在1769和1768 CompactLogix组件上。它也可以与MicroLogix 1500控制器一起使用。

The Allen-Bradley 1769-OF8C is a compact input/output module. The module is compatible for use with the 1769 and certain 1768 CompactLogix controllers as well as MicroLogix 1500 controllers. The module is an analog output module typically used to drive the final control element (FCE) of a control loop as well as to send signals to receiving and measuring elements.

The 1769-OF8C primarily features eight (8) single-ended current output channels configurable for 0-20 mA and 4-20 mA. It has a built-in 16-bit digital-to-analog converter (DAC) with resolutions of 15.59 bits at 0.323 A/bit (for 4-20 mA currents) and 15.91 bits at 0.323 A/bit (for 0-20 mA currents), respectively. All channels have a conversion rate of 5 ms, a step response of less than 2.9 ms for 63% of the outputs, and analog output ranges of 0-21 mA and 3.2-21 mA.

Typical final control elements (FCEs) that can be driven by the 1769-OF8C are modulating control valves, variable frequency drives (VFDs), positioners, and other devices. For use in automatic control loops, the module can be integrated into a proportional + integral + differential (PID) controller embedded in the processor. Compatible receiving and measuring elements that can receive signals from this device are panel meters, data loggers, signal splitters and other similar types of devices.

The 1769-OF8C is a single-wide module that can be mounted on 1769 and 1768 CompactLogix assemblies as part of the Local I/O and Expansion I/O racks. It can also be used with MicroLogix 1500 controllers.
