GE IS220PDOAH1A 336A4940CSP2组态系统单元 以太网模块
GE IS220PDOAH1A 336A4940CSP2是一款工业级固态继电器，由GE公司生产。它是一种四通道、固态过载继电器，具有过载保护、过流保护、过温保护等功能，适用于各种工业和商业领域。
具体来说，GE IS220PDOAH1A 336A4940CSP2具有以下特点:四通道设计，可以同时控制四个负载;
具有过载保护、过流保护、过温保护等功能，可以保护负载免受过载、短路等故障的影响;
IS220PDOAH1A是一个离散输出包，是GE Speedtronic Mark Vle燃气轮机控制系统的一部分。它通过电气接口将一个或两个/O以太网连接到离散输出端子板。该包包括所有Mark Vle分布式I/O包共享的处理器板以及专用于离散输出功能的采集板。
IS220PDOAH1A功能描述
该套件最多可控制12个继电器并接受来自端子板的反馈。有磁继电器（TRLVH1B、C、D和F端子板）和固态继电器(TRLYH1E板)可供选择。该套件由三针电源输入和两个RJ45以太网连接器供电。输出通过直接连接到相关端子板连接器的DC-37针连接器进行。LED指示灯提供视觉诊断，红外
端口可进行本地诊断串行通信。
兼容性
它可与六种不同类型的离散（继电器）输出端子板配合使用，包括TRLY和SRLY板，但不适用于DIN导轨安装的DRLY板。信号路径中使用的/O包的数量称为控制模式:
Simplex采用单个I/O包和一个或两个网络连接。Dual采用两个I/O包以及一个或两个网络接口。TMR采用三个I/O包，每个包都有一个网络连接。
GE IS220PDOAH1A 336A4940CSP2 Configuration System Unit Ethernet Module
GE IS220PDOAH1A 336A4940CSP2 is an industrial grade solid-state relay produced by GE. It is a four channel, solid-state overload relay with functions such as overload protection, overcurrent protection, and over temperature protection, suitable for various industrial and commercial fields.
Specifically, the GE IS220PDOAH1A 336A4940CSP2 has the following characteristics: a four channel design that can simultaneously control four loads;
It has functions such as overload protection, overcurrent protection, and over temperature protection, which can protect the load from the impact of faults such as overload and short circuit;
IS220PDOAH1A is a discrete output package that is part of the GE Speedtronic Mark Vle gas turbine control system. It connects one or two/O Ethernet to the discrete output terminal board through an electrical interface. This package includes the processor board shared by all Mark Vle distributed I/O packages, as well as the acquisition board dedicated to discrete output functionality.
IS220PDOAH1A Function Description

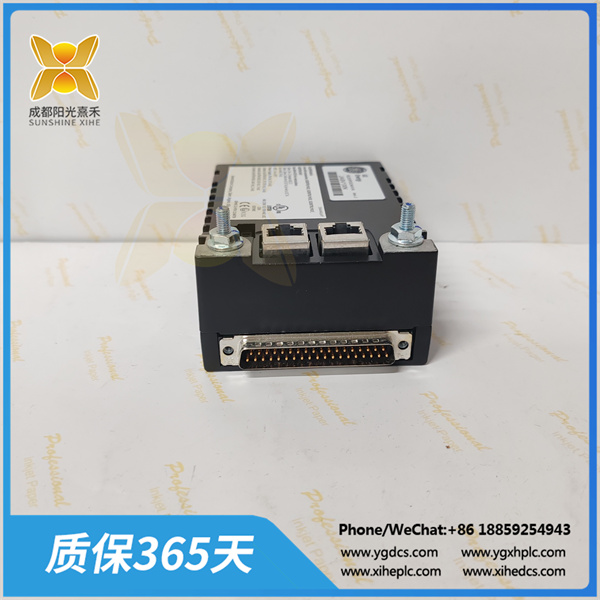

This kit can control up to 12 relays and receive feedback from the terminal board. There are magnetic relays (TRLVH1B, C, D, and F terminal boards) and solid-state relays (TRLYH1E board) available for selection. This kit is powered by a three pin power input and two RJ45 Ethernet connectors. The output is carried out through a DC-37-pin connector directly connected to the relevant terminal board connector. LED indicator lights provide visual diagnosis, infrared
The port can perform local diagnostic serial communication.
compatibility
It can be used in conjunction with six different types of discrete (relay) output terminal boards, including TRLY and SRLY boards, but is not suitable for DIN rail mounted DRLY boards. The number of/O packets used in the signal path is called the control mode:
Simplex uses a single I/O packet and one or two network connections. Dual uses two I/O packets and one or two network interfaces. TMR uses three I/O packets, each with a network connection.
