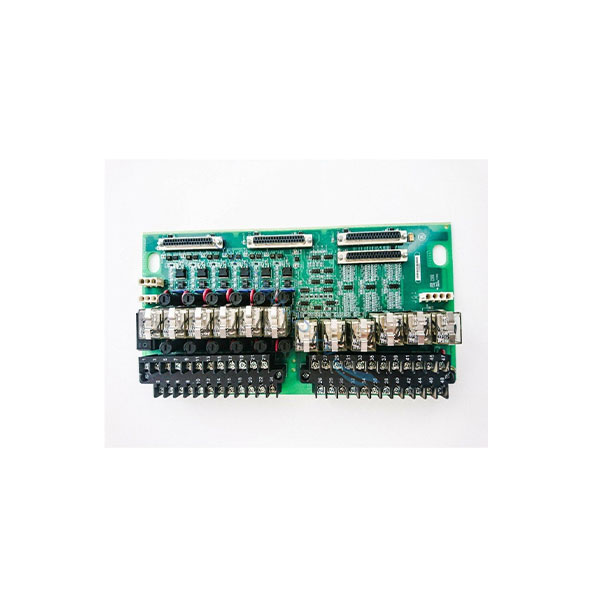

GE IS200ERRRH1A EX2100励磁控制系统模块电源模块PLC系统反馈直流励磁卡

GE IS200ERRRH1A EX2100的零件编号是IS200VRTDH1D该产品的制造商为通用电气属于系列 Mark VI类别，它主要提供的功能是印刷电路板

GE IS200ERRRH1A EX2100还具备以下几个功能

■保护模块P中的VPRO板执行紧急跳闸功能。TREG 和TRPG端子板之间最多可连接三个跳闸电磁阀。

■TREG向螺线管提供125 V直流电源的正极,而TRPG则为负极提供电源。任- 板都有能力使涡轮机跳闸。

■VPRO提供紧急超速保护以及紧急停止功能。负责TREG的12个继电器,中9个继电器组成三组,每组三个,控制三个跳闸电磁阀。VPROH1A已被功能等效的VPROH1B取代。VPROH1A和VPROH1B支持由VPRO连接器J4供电的第二个TREG板。

GE IS200ERRRH1A EX2100 Excitation Control System Module Power Module PLC System Feedback DC Excitation Card
The part number of GE IS200ERRRH1A EX2100 is IS200VRTDH1D. The manufacturer of this product is General Electric and belongs to the Mark VI category of the series. Its main function is to provide printed circuit boards
The GE IS200ERRRH1A EX2100 also has the following functions
The VPRO board in the protection module P performs an emergency trip function. A maximum of three trip solenoid valves can be connected between the TREG and TRPG terminal boards.
TREG provides the positive pole of a 125 V DC power supply to the solenoid, while TRPG provides power to the negative pole. Any board has the ability to trip the turbine.
VPRO provides emergency overspeed protection and emergency stop function. Responsible for the 12 relays of TREG, with 9 relays forming three groups of three each, controlling three trip solenoid valves. VPROH1A has been replaced by functionally equivalent VPROH1B. VPROH1A and VPROH1B support a second TREG board powered by VPRO connector J4.
