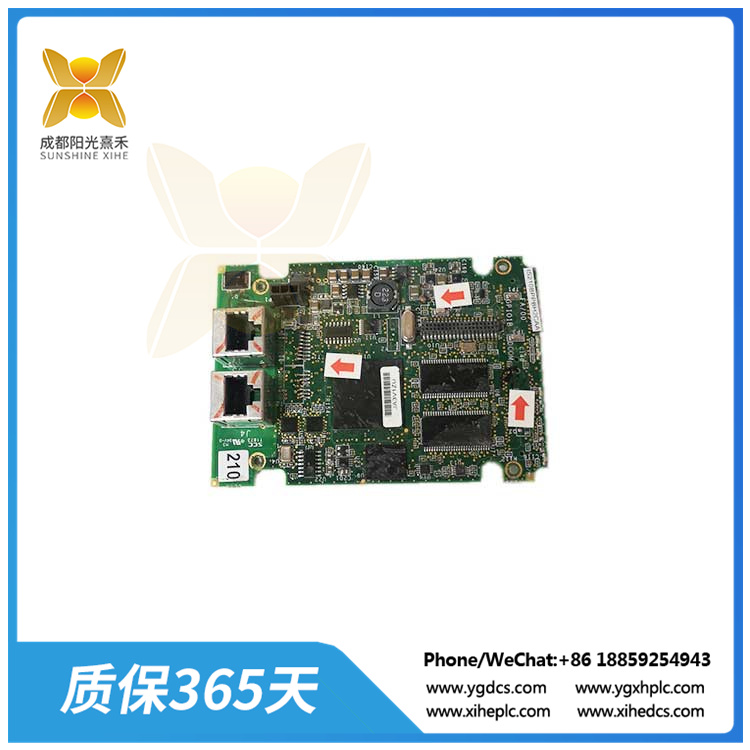

GE IS210BPPBH2CAA 印刷电路板

产品细节说明：IS200TSVCH2AED MRP246517 GE 数字I/O模块

IS210BPPBH2CAA是GE Mark VI IS200系统的一部分，专为蒸汽轮机和燃气轮机原动机设计。

1. 系统集成：
   • 当安装在涡轮机控制系统中时，它位于主控制模块中，并可能与备用保护模块一起使用。
   • 在主控制模块中，提供多种软件维护工具，包括保护算法、排序和I/O显示等功能。
2. 操作界面：
   • 配有一个操作员界面，被称为HMI（人机界面）。
   • 该界面基于微软视窗NT个人电脑操作系统，支持图形显示系统、客户/服务器功能、软件界面和控制系统工具箱。
3. 处理器配置：
   • 当用于TMR（三模冗余）系统时，有三个处理器卡。
   • 处理器卡用于在BPPB板和安装在VME机架上的其他板之间执行涡轮机应用软件。

综上所述，IS210BPPBH2CAA是一款功能强大、可靠性高的印刷电路板，专为Mark VI涡轮机控制系统设计，能够满足蒸汽轮机和燃气轮机原动机的复杂控制需求。

IS210BPPBH2CAA

产品详情参数 ：IS200TSVCH2AED MRP246517 GE 数字I/O模块

• 用途：用于Mark VI涡轮机控制系统，设计为印刷电路板。
• 涡轮原动机兼容性：适用于蒸汽涡轮或燃气涡轮。
• 主要部件：包含八个母插头连接器，连接器的插脚数量范围从两个到十八个。
• 其他元件：板上左侧有一行六个金属氧化物变阻器。

IS200TSVCH2AED MRP246517应用领域：

适用于大型控制系统，可支持具有TMR或单工冗余的Mark VI系统。

Product details: IS200TSVCH2AED MRP246517 GE Digital I/O Module

IS210BPPBH2CAA is a part of the GE Mark VI IS200 system designed specifically for steam and gas turbine prime movers.

System integration:
When installed in the turbine control system, it is located in the main control module and may be used in conjunction with the backup protection module.
In the main control module, various software maintenance tools are provided, including protection algorithms, sorting, and I/O display functions.
Operation interface:
Equipped with an operator interface called HMI (Human Machine Interface).
This interface is based on the Microsoft Windows NT personal computer operating system and supports graphical display systems, client/server functions, software interfaces, and control system toolboxes.
Processor configuration:
When used in a TMR (the third mock examination Redundancy) system, there are three processor cards.
The processor card is used to execute turbine application software between the BPPB board and other boards installed on the VME rack.

In summary, IS210BPPBH2CAA is a powerful and highly reliable printed circuit board designed specifically for Mark VI turbine control systems, capable of meeting the complex control needs of steam and gas turbine prime movers.

IS210BPPBH2CAA
Product details parameters: IS200TSVCH2AED MRP246517 GE digital I/O module
Usage: Used in Mark VI turbine control systems, designed as a printed circuit board.
Compatibility of turbine prime movers: suitable for steam or gas turbines.
Main components: Includes eight female plug connectors, with a range of two to eighteen pins.
Other components: There is a row of six metal oxide varistors on the left side of the board.

IS200TSVCH2AED MRP246517 Application areas:

Suitable for large control systems, it can support Mark VI systems with TMR or simplex redundancy.
