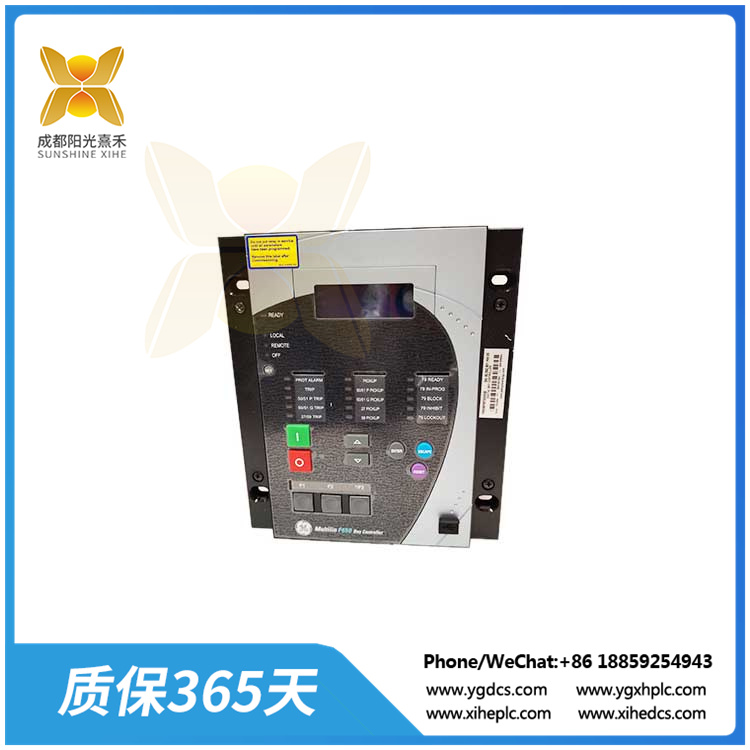

GE F650-F650BFBF2G0HIE 数字式综合保护继电器 成都阳光

产品详细信息：F650-F650BFBF2G0HIE GE 数字式综合保护继电器

• 提供多种系统级诊断功能，包括基准电压检测、输入过压/欠压检测、SPI通信的CRC校验、存储器映射的CRC校验以及SPI读/写检查。
• 具有隔离功能，利用ADuM1441（5 mm × 6.2 mm、16引脚QSOP封装）进行数据通道的隔离，同时ADuM5010（7.4 mm × 7.5 mm、20引脚SSOP封装）提供完整的隔离开发转换器。
  • 电源副边使用铁氧体磁珠（如Murata BLM18HK102SN1）来抑制潜在的电磁干扰（EMI）辐射。
  • 配备了10 μF和0.1 μF去耦电容来进一步减少干扰。
• 测量与监视：
  • 高分辨率录波和数据记录，采样速率可编程设置。
  • 监视和测量功能包括电压（V）、电流（I）、频率（Hz）、功率（W、VA）、功率因数（PF）等。
  • 提供需量测量，如Ia、Ib、Ic、Ig、Isg、I2、MW、MVA等。
• 报警与控制：
  • 可配置图形人机接口（HMI）报警显示。
  • 前面板配备往复键和可选的显示屏幕，如4×20个字节的背光显示屏幕或16×40个字节的图形显示屏幕。
  • 保护和控制功能包括完整的延时、瞬时和相方向、中性点、接地和灵敏接地过电流保护等。

F650-F650BFBF2G0HIE

产品详细参数：F650-F650BFBF2G0HIE GE 数字式综合保护继电器

提供RS232和RS485接口，速率可达115,200 bps。

以太网接口支持10/100BaseTX和100BaseFX，并可选配双100BaseFX以实现物理介质冗余。

支持多种通信规约，如ModBus RTU和TCP/IP、DNP 3.0级别2、IEC 60870-5-104、IEC 61850等。

F650-F650BFBF2G0HIE GE 应用领域：

• 石油化工：在石油化工行业中，GE F650-F650BFBF2G0HIE可用于监测和保护各种石油化工设备，如泵、压缩机、反应器等。其高精度测量和监视功能可以确保设备的稳定运行，提高生产效率。
• 水处理：在水处理行业中，GE F650-F650BFBF2G0HIE可用于监测和保护水处理设备，如水泵、过滤器等。其强大的保护功能可以确保水质安全，满足生产需求。
• 电力输送与分配：在电力输送和分配系统中，GE F650-F650BFBF2G0HIE可用于保护变压器、断路器、开关柜等设备。其灵活的通信接口和可编程逻辑功能可以满足不同系统的需求。

Product details: F650-F650BFBF2G0HIE GE digital comprehensive protection relay
Provide various system level diagnostic functions, including reference voltage detection, input overvoltage/undervoltage detection, SPI communication CRC verification, memory mapping CRC verification, and SPI read/write check.
Equipped with isolation function, ADuM1441 (5 mm x 6.2 mm, 16 pin QSOP package) is used for data channel isolation, while ADuM5010 (7.4 mm x 7.5 mm, 20 pin SSOP package) provides a complete isolation development converter.
The secondary side of the power supply uses ferrite magnetic beads (such as Murata BLM18HK102SN1) to suppress potential electromagnetic interference (EMI) radiation.
Equipped with 10 μ F and 0.1 μ F decoupling capacitors to further reduce interference.
Measurement and monitoring:
High resolution wave recording and data recording, with programmable sampling rate settings.
The monitoring and measurement functions include voltage (V), current (I), frequency (Hz), power (W, VA), power factor (PF), etc.
Provide demand measurements such as Ia, Ib, Ic, Ig, Isg, I2, MW, MVA, etc.
Alarm and Control:
Configurable graphical human-machine interface (HMI) alarm display.
The front panel is equipped with reciprocating keys and optional display screens, such as a 4×20 byte backlight display screen or a 16×40 byte graphic display screen.
The protection and control functions include complete delay, instantaneous and phase direction, neutral point, grounding, and sensitive grounding overcurrent protection.
Product detailed parameters: F650-F650BFBF2G0HIE GE digital comprehensive protection relay

Provide RS232 and RS485 interfaces, with a speed of up to 115200 bps.

The Ethernet interface supports 10/100BaseTX and 100BaseFX, and can be optionally equipped with dual 100BaseFX to achieve physical media redundancy.

Supports multiple communication protocols, such as ModBus RTU and TCP/IP, DNP 3.0 level 2, IEC 60870-5-104, IEC 61850, etc.

F650-F650BFBF2G0HIE GE application areas:
Petrochemical: In the petrochemical industry, GE F650-F650BFBF2G0HIE can be used to monitor and protect various petrochemical equipment, such as pumps, compressors, reactors, etc. Its high-precision measurement and monitoring functions can ensure the stable operation of equipment and improve production efficiency.
Water treatment: In the water treatment industry, GE F650-F650BFBF2G0HIE can be used to monitor and protect water treatment equipment, such as pumps, filters, etc. Its powerful protection function can ensure water quality safety and meet production needs.
Power transmission and distribution: In the power transmission and distribution system, GE F650-F650BFBF2G0HIE can be used to protect equipment such as transformers, circuit breakers, and switchgear. Its flexible communication interface and programmable logic functions can meet the needs of different systems.
