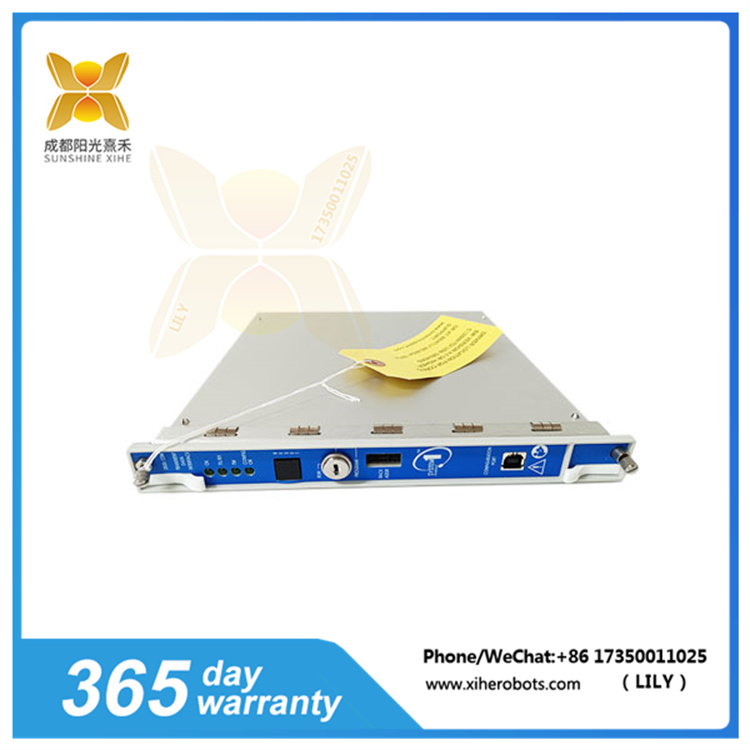

产品细节说明：3500/22M 138607-01 BENTLY 瞬态数据接口（TDI）模块
- TDI结合了3500/20框架接口模块（RIM）和通讯处理器的功能，如TDXnet。
- TDI运行在3500框架的RIM插槽中，与M系列监测器（如3500/40M、3500/42M等）配合使用，连续采集稳态和瞬态波形数据。
- TDI通过以太网链路将数据传递给主机软件，支持10Base-T或100Base-TX以太网，以及100Base-FX光纤以太网。
- TDI具有标准的静态数据采集能力，但通过使用可选的通道使能磁盘，还可以捕获动态和高分辨率瞬态数据。
- TDI虽然为全部框架提供通用功能，但并不是关键监测通道的组成部分，不影响整个监测系统的正确和常规运行。
3500/22M 138607-01
产品详情参数 ：3500/22M 138607-01 BENTLY 瞬态数据接口（TDI）模块
- 型号：3500/22M 138607-01
- 功耗：10.5瓦
- 接口：USB-B，以太网（10Base-T或100Base-TX，100Base-FX光纤）
- 特性：机架复位按钮，报警前和报警后数据捕获
- 插槽位置：必须位于3500机架的第一个插槽中（紧邻电源模块）
3500/22M 138607-01 BENTLY 应用领域：
BENTLY 3500/22M 138607-01适用于需要高精度、连续数据采集和监控的工业环境，特别是在振动监测、机械保护以及状态监控和诊断领域。
Product details: 3500/22M 138607-01 BENTLY Transient Data Interface (TDI) module
TDI combines the functions of 3500/20 Framework Interface Module (RIM) and Communication Processor, such as TDXnet.
TDI runs in the RIM slot of the 3500 rack and is used in conjunction with M-series monitors (such as 3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data.
TDI transmits data to host software through Ethernet links, supporting 10Base-T or 100Base-TX Ethernet, as well as 100Base-FX fiber optic Ethernet.
TDI has standard static data acquisition capabilities, but by using optional channel enabled disks, it can also capture dynamic and high-resolution transient data.
Although TDI provides universal functionality for all frameworks, it is not a critical component of monitoring channels and does not affect the correct and routine operation of the entire monitoring system.
Product details parameters: 3500/22M 138607-01 BENTLY Transient Data Interface (TDI) module
Model: 3500/22M 138607-01
Power consumption: 10.5 watts
Interface: USB-B, Ethernet (10Base-T or 100Base-TX, 100Base-FX fiber)
Features: Rack reset button, data capture before and after alarm
Slot location: must be located in the first slot of the 3500 rack (adjacent to the power module)
3500/22M 138607-01 BENTLY Application areas:
BENTLY 3500/22M 138607-01 is suitable for industrial environments that require high-precision, continuous data acquisition and monitoring, especially in the fields of vibration monitoring, mechanical protection, and condition monitoring and diagnosis.
