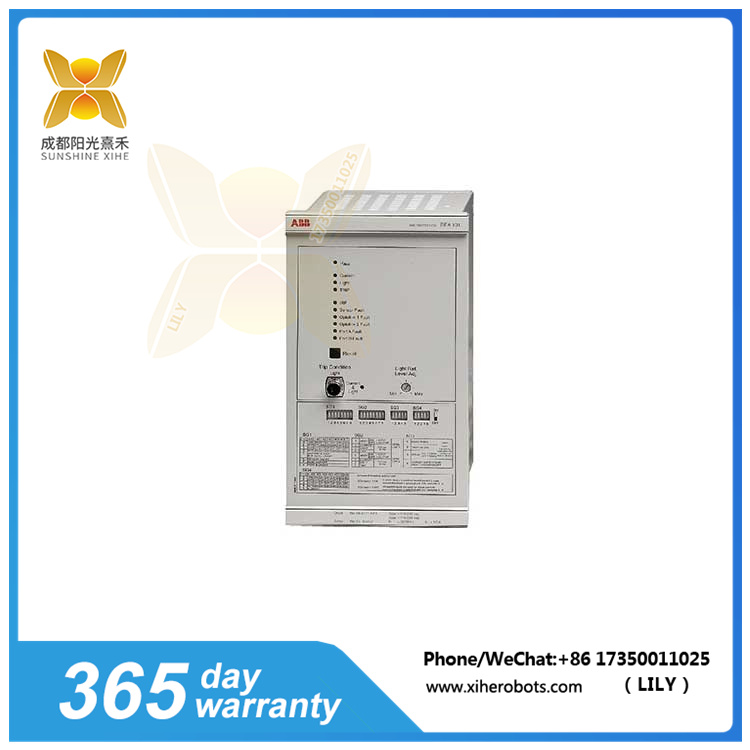

产品细节说明：REA101-AAA ABB 弧光故障保护系统主模块
- 可调节的三相过流或两相和中性点过电流状态监视功能，提高弧光故障检测可靠性。
- 内置自检系统，监视运行电压、主模块和扩展模块之间布线的完好性，以及主模块间的光纤连接。
- 故障检测后，系统将闭锁模块防止误动作 。
- 利用环型或辐射型光纤传感器，或者透镜传感器进行光检测。
- 提供两个RJ45端口，每个端口最多支持5个扩展模块。
- 通过光纤连链路通信或REA105中间扩展模块，可实现多模块互联
REA101-AAA
产品详情参数 ：REA101-AAA ABB 弧光故障保护系统主模块
- 型号：REA101
- 品牌：ABB
- 应用：设计用于中低压开关柜的保护，可独立或与REA103和REA105扩展单元一起使用。
- 主要功能：带有两个高速、隔电、绝缘栅双极型晶体管（IGBT）输出设备（HSO1和HSO2），用于断开断路器。此外，REA101还提供了重载继电器输出（TRIP3），可用作断路器失灵保护（CBFP）跳上游断路器或告警输出
REA101-AAA ABB 应用领域：
REA101弧光故障保护系统的设计允许快速定位故障位置，通过检查检测到弧光的传感器光纤所覆盖的区域。该系统的主要优势在于能够迅速跳闸，并具备连续自检传感器光纤环路、工作电源及中央单元与扩展单元间的电缆线路的能力
Product details: REA101-AAA ABB arc fault protection system main module
Adjustable three-phase overcurrent or two-phase and neutral point overcurrent status monitoring function improves the reliability of arc fault detection.
Built in self-test system monitors the operating voltage, the integrity of wiring between the main module and expansion module, as well as the fiber optic connections between the main modules.
After fault detection, the system will lock the module to prevent misoperation.
Use ring or radiation type fiber optic sensors, or lens sensors for light detection.
Provide two RJ45 ports, each supporting up to 5 expansion modules.
Multi module interconnection can be achieved through fiber optic link communication or REA105 intermediate expansion module
Product details and parameters: REA101-AAA ABB arc fault protection system main module
Model: REA101
Brand: ABB
Application: Designed for protection of medium and low voltage switchgear, it can be used independently or in conjunction with REA103 and REA105 expansion units.
Main function: Equipped with two high-speed, isolated, insulated gate bipolar transistor (IGBT) output devices (HSO1 and HSO2) for disconnecting circuit breakers. In addition, REA101 also provides overload relay output (TRIP3), which can be used as circuit breaker failure protection (CBFP) to trip upstream circuit breakers or alarm outputs
REA101-AAA ABB application areas:
The design of the REA101 arc fault protection system allows for quick positioning of the fault location by inspecting the area covered by the sensor fiber that detects the arc light. The main advantage of this system is its ability to quickly trip and has the capability to continuously self check sensor fiber optic loops, working power supplies, and cable lines between central and expansion units
