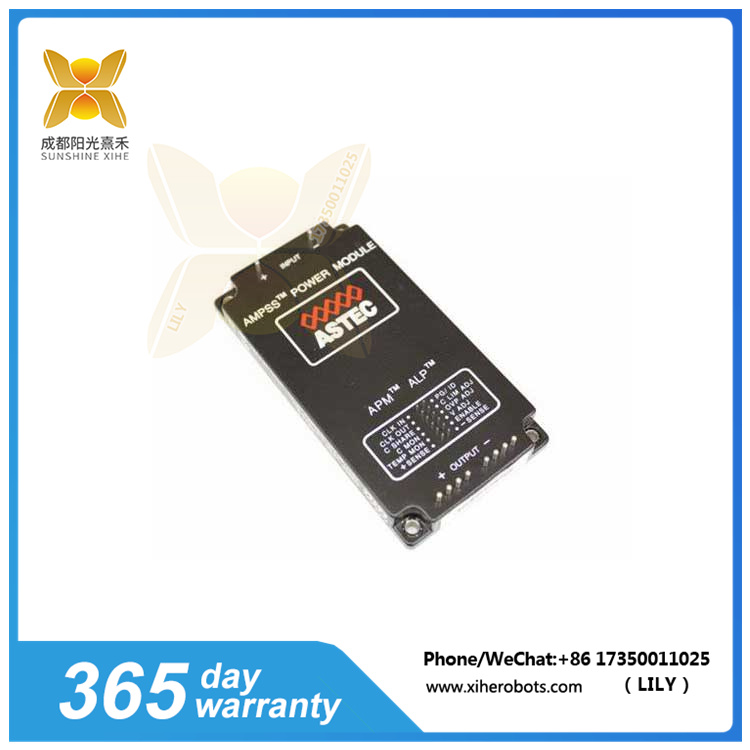

ASTEC AM80A-150L-065F33 电源模块 成都阳光熹禾

In stock
  1. 高效率,典型值为84%(在5V @ 40A时)和87%(在12V @ 18A时)。
  2. 优异的负载调整率(Load Regulation)和线路调整率(Line Regulation),典型值分别为0.1%和0.02%,以及低噪声/纹波(Noise/Ripple),对于5V以下输出典型值为50mV,5V以上输出为1%。
  3. 具备远程开/关(Remote On/Off)、过热保护(OTP)、过压保护(OVP)等特性。
  4. 工作温度范围宽,从-20°C至100°C。
  5. 安装类型为通孔,封装/外壳为模块,尺寸为4.60″ 长 x 2.40″ 宽 x 0.50″ 高(116.8mm x 61.0mm x 12.7mm)
  • 电话/Phone:17350011025 (微信同号)
  • 邮箱/Email:1713556114@qq.com
  • QQ:1713556114

产品细节说明:AM80A-150L-065F33 ASTEC 电源模块

AM80A-150L-065F33是ASTEC公司生产的一款电源模块,具体是由Artesyn Embedded Power制造的非隔离PoL(Point of Load)直流转换器,属于AM80A系列,具备240W的总功率能力 。这款电源模块设计用于多种输入电压范围,包括24V、48V、150V、300V或320V,并提供一个单一的输出,其输出电压为6.5V,最大输出电流可达33A

AM80A-150L-065F33

产品详情参数 :AM80A-150L-065F33 ASTEC 电源模块

  • 高效率,典型值为84%(在5V @ 40A时)和87%(在12V @ 18A时)。
  • 优异的负载调整率(Load Regulation)和线路调整率(Line Regulation),典型值分别为0.1%和0.02%,以及低噪声/纹波(Noise/Ripple),对于5V以下输出典型值为50mV,5V以上输出为1%。
  • 具备远程开/关(Remote On/Off)、过热保护(OTP)、过压保护(OVP)等特性。
  • 工作温度范围宽,从-20°C至100°C。
  • 安装类型为通孔,封装/外壳为模块,尺寸为4.60″ 长 x 2.40″ 宽 x 0.50″ 高(116.8mm x 61.0mm x 12.7mm)

AM80A-150L-065F33 ASTEC  应用领域:

工业自动化:该电源模块的高效率和优异的瞬态响应特性使其适用于工业自动化控制系统

Product details: AM80A-150L-065F33 ASTEC power module

AM80A-150L-065F33 is a power module produced by ASTEC, specifically a non isolated PoL (Point of Load) DC converter manufactured by Artesyn Embedded Power. It belongs to the AM80A series and has a total power capacity of 240W. This power module is designed for multiple input voltage ranges, including 24V, 48V, 150V, 300V, or 320V, and provides a single output with an output voltage of 6.5V and a maximum output current of up to 33A

Product details and parameters: AM80A-150L-065F33 ASTEC power module
High efficiency, with typical values of 84% (at 5V @ 40A) and 87% (at 12V @ 18A).
Excellent load regulation and line regulation, with typical values of 0.1% and 0.02% respectively, as well as low noise/ripple, with a typical value of 50mV for outputs below 5V and 1% for outputs above 5V.
Equipped with features such as Remote On/Off, OTP, OVP, etc.
The working temperature range is wide, from -20 ° C to 100 ° C.
The installation type is through-hole, the packaging/shell is module, and the dimensions are 4.60 “long x 2.40” wide x 0.50 “high (116.8mm x 61.0mm x 12.7mm)
AM80A-150L-065F33 ASTEC Application Fields:

Industrial Automation: The high efficiency and excellent transient response characteristics of this power module make it suitable for industrial automation control systems
