产品细节说明：5202-DFNT-MCM4 ProSoft EtherNet/IP至Modbus主/从网关
- 多协议支持：支持EtherNet/IP和Modbus协议，包括Modbus RTU和Modbus TCP，实现不同设备间的无缝通信。
- 灵活的配置：用户可以配置为Client和Server模式，以适应不同的网络架构和应用需求。
- 强大的数据传输能力：支持125字节的读写数据长度，包括对浮点数据的支持。
- 广泛的应用领域：适用于工业自动化、楼宇自动化、能源管理、交通控制、石油和天然气等多个领域。
5202-DFNT-MCM4
产品详情参数 ：5202-DFNT-MCM4 ProSoft EtherNet/IP至Modbus主/从网关
- 支持以太网/IP和Modbus协议，包括Modbus RTU和Modbus TCP。
- 提供1个RJ45以太网/IP接口和4个RS-232 Modbus接口。
- 数据传输速率为以太网/IP 10/100 Mbps，Modbus最高115200 bps。
- 电源电压24 VDC，功耗10 W。
- 工作温度范围-20℃至+60℃，防护等级IP30。
- 壁挂式安装，尺寸为Ø110 x 180 x 60 mm，重量1 kg。
5202-DFNT-MCM4 ProSoft 应用领域：
- 工业自动化：在工业自动化系统中，5202-DFNT-MCM4可以将Modbus设备连接到EtherNet/IP网络，实现数据采集、传输和控制。
- 楼宇自动化：在楼宇自动化系统中，该网关可以连接Modbus设备，如HVAC系统、照明系统等，实现智能管理和控制。
- 能源管理：在能源管理系统中，5202-DFNT-MCM4可以将智能电表、保护装置等Modbus设备连接到EtherNet/IP网络，实现能源监控和管理。
- 交通控制：在交通领域，该网关可用于连接Modbus设备到网络，实现交通信号控制、车辆调度等应用。
- 石油和天然气：在石油和天然气行业，5202-DFNT-MCM4可以连接Modbus设备到网络，实现油田和气田的监控和管理。

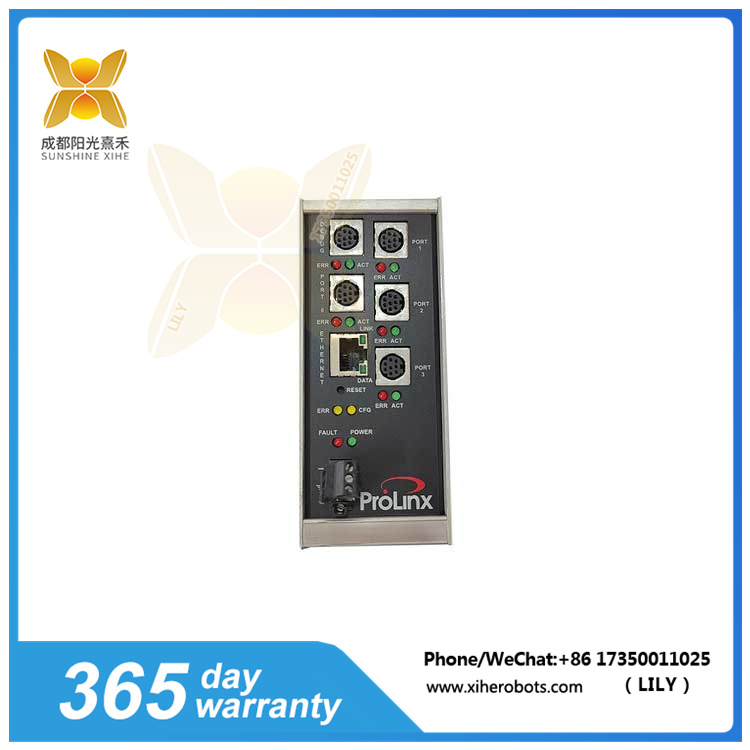

Product Details: 5202-DFNT-MCM4 ProSoft EtherNet/IP to Modbus Master/Slave Gateway
Multi protocol support: Supports EtherNet/IP and Modbus protocols, including Modbus RTU and Modbus TCP, to achieve seamless communication between different devices.
Flexible configuration: Users can configure to Client and Server modes to adapt to different network architectures and application requirements.
Powerful data transmission capability: Supports read and write data lengths of 125 bytes, including support for floating-point data.
Widely applicable fields: Suitable for multiple fields such as industrial automation, building automation, energy management, traffic control, oil and gas, etc.
Product Details and Parameters: 5202-DFNT-MCM4 ProSoft EtherNet/IP to Modbus Master/Slave Gateway
Supports Ethernet/IP and Modbus protocols, including Modbus RTU and Modbus TCP.
Provide 1 RJ45 Ethernet/IP interface and 4 RS-232 Modbus interfaces.
The data transmission rate is Ethernet/IP 10/100 Mbps, with a maximum of 115200 bps for Modbus.
The power supply voltage is 24 VDC and the power consumption is 10 W.
The working temperature range is -20 ℃ to+60 ℃, with a protection level of IP30.
Wall mounted installation, size Ø 110 x 180 x 60 mm, weight 1 kg.
5202-DFNT-MCM4 ProSoft Application Fields:
Industrial Automation: In industrial automation systems, 5202-DFNT-MCM4 can connect Modbus devices to EtherNet/IP networks for data acquisition, transmission, and control.
Building automation: In building automation systems, this gateway can connect Modbus devices such as HVAC systems, lighting systems, etc., to achieve intelligent management and control.
Energy Management: In the energy management system, 5202-DFNT-MCM4 can connect Modbus devices such as smart meters and protection devices to EtherNet/IP networks for energy monitoring and management.
Traffic Control: In the field of transportation, this gateway can be used to connect Modbus devices to the network, enabling applications such as traffic signal control and vehicle scheduling.
Oil and Gas: In the oil and gas industry, 5202-DFNT-MCM4 can connect Modbus devices to the network to achieve monitoring and management of oil and gas fields.
