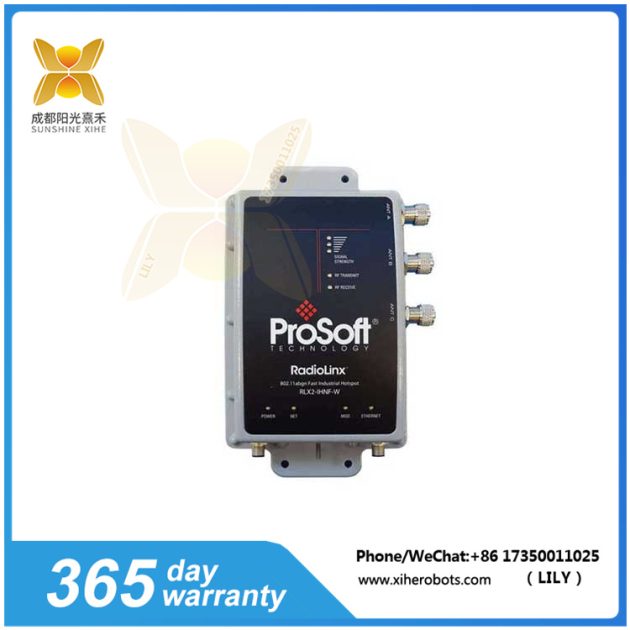

产品细节说明:RLX2-IHNF-W-E ProSoft 快速工业热点设备
- 高防护等级：具有 IP66/67 的防护等级，使其能够抵抗极端天气条件和工业环境中的尘埃。
- 宽温度范围：能够在 -40°F 至 167°F（大约 -40°C 至 75°C）的宽温度范围内稳定工作。
- 快速数据传输：支持 802.11abgn 标准，提供最高 300 Mbps 的数据传输速率，适用于需要高速数据传输的应用。
- 多种工作模式：支持接入点（Access Point）、中继器（Repeater）和客户端（Client）模式，以适应不同的网络配置需求。
RLX2-IHNF-W-E
产品详情参数:RLX2-IHNF-W-E ProSoft 快速工业热点设备
- 802.11n 技术：利用 MIMO（多输入多输出）和信道绑定技术，支持高密度数据包传输和在恶劣工业环境中的稳定通信。
- 安全性：支持 WPA2 Enterprise 级别的安全协议，包括 802.11i AES 加密和 RADIUS 认证，确保网络连接的安全性。
- 网络管理：通过 IH Browser 配置和监控软件，用户可以查看网络拓扑、分配 IP 地址、监控网络诊断和更新无线电固件。
- OPC 诊断服务器：可选的 OPC 诊断服务器适用于管理长距离无线 SCADA 网络。
RLX2-IHNF-W-E ProSoft 应用领域:
适用于工厂车间、SCADA 自动化、过程控制系统和移动工作人员的 Wi-Fi 基础设施。
Product Details: RLX2-IHNF-W-E ProSoft Rapid Industrial Hotspot Equipment
High protection level: With an IP66/67 protection level, it can resist extreme weather conditions and dust in industrial environments.
Wide temperature range: capable of stable operation within a wide temperature range of -40 ° F to 167 ° F (approximately -40 ° C to 75 ° C).
Fast data transmission: Supports the 802.11abgn standard, providing a maximum data transmission rate of 300 Mbps, suitable for applications that require high-speed data transmission.
Multiple working modes: Supports access point, repeater, and client modes to adapt to different network configuration requirements.
Product Details and Parameters: RLX2-IHNF-W-E ProSoft Rapid Industrial Hotspot Equipment
802.11n technology: Utilizing MIMO (Multiple Input Multiple Output) and channel bonding technology, it supports high-density packet transmission and stable communication in harsh industrial environments.
Security: Supports WPA2 Enterprise level security protocols, including 802.11i AES encryption and Radius authentication, to ensure the security of network connections.
Network management: Through IH Browser configuration and monitoring software, users can view network topology, assign IP addresses, monitor network diagnostics, and update wireless firmware.
OPC Diagnostic Server: The optional OPC Diagnostic Server is suitable for managing long-distance wireless SCADA networks.
RLX2-IHNF-W-E ProSoft application areas:
Wi Fi infrastructure suitable for factory workshops, SCADA automation, process control systems, and mobile workers.
