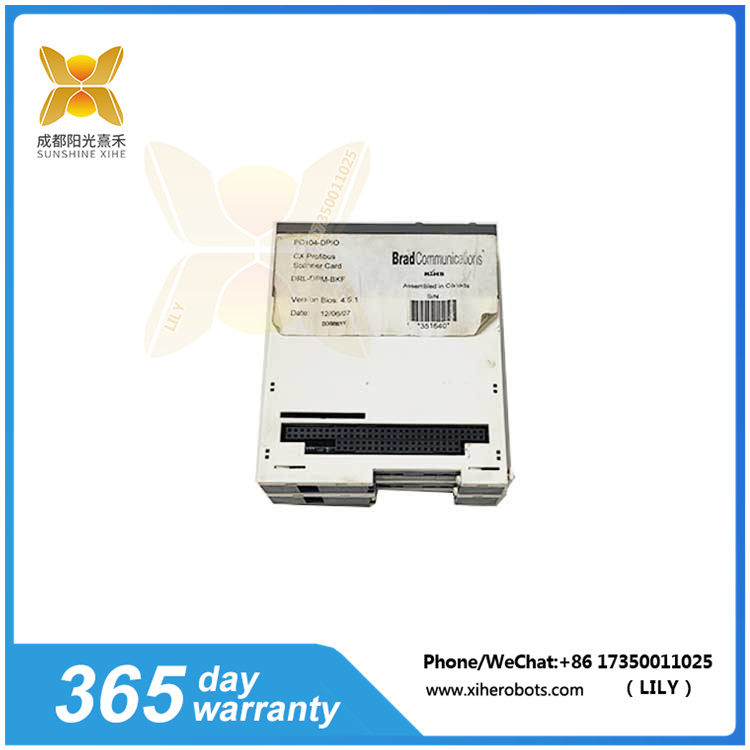

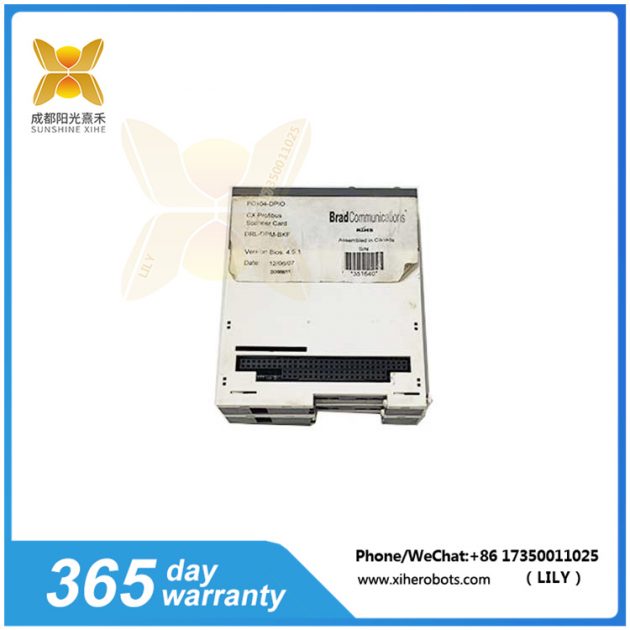

产品细节说明:PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATIONS PC/104 总线数字输入/输出模块
- 概述： 该模块是一款工业级计算机模块，用于连接紧凑型工业计算机模块。它基于 PC104 标准，提供丰富的 I/O 接口和强大的处理能力，适用于各种工业应用 。该模块具有高可靠性，能够在恶劣环境下稳定运行，并采用先进的数字信号处理技术，实现快速、准确的数字信号传输，适用于需要实时监控和控制的应用场景 。模块还易于与 PC104 总线兼容的嵌入式计算机系统集成，并支持多种 I/O 配置，可根据具体需求进行灵活配置
- 主要特点：
- 兼容 PC104 标准，丰富的 I/O 接口，包括串口、并口、以太网口和可编程 I/O 线。
- 采用工业级元件设计，具有高可靠性和宽工作温度范围。
- 支持多种操作系统，如 Windows CE 和 Linux，易于使用 。
PC104-DPIO DRL-DPM-BKF
产品详情参数:PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATIONS PC/104 总线数字输入/输出模块
- 处理器：Intel 80486SX，主频 50 MHz。
- 内存：256 KB RAM，可扩展至 2 MB。
- 存储：1 个 3.5 英寸硬盘和 1 个 CompactFlash 卡。
- I/O 接口：包括 2 个 RS-232 串口、1 个并口、1 个以太网口和 8 个可编程 I/O 线。
- 扩展：支持 PCMCIA 卡。
- 电源：+5 VDC、+12 VDC 和 -12 VDC，功耗约 10 W。
- 工作温度范围：-20°C 至 +60°C。
- 防护等级：IP40。
- 尺寸：167 mm x 104 mm x 23 mm (6.57 in x 4.09 in x 0.91 in) 。
PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATIONS 应用领域:
PC104-DPIO DRL-DPM-BKF 可用于工业控制、数据采集、测试和测量、图像处理以及 SCADA 系统构建等多种工业应用 。
Product Details: PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATION PC/104 Bus Digital Input/Output Module
Overview: This module is an industrial grade computer module used to connect compact industrial computer modules. It is based on the PC104 standard, providing rich I/O interfaces and powerful processing capabilities, suitable for various industrial applications. This module has high reliability, can operate stably in harsh environments, and adopts advanced digital signal processing technology to achieve fast and accurate digital signal transmission, suitable for application scenarios that require real-time monitoring and control. The module is also easy to integrate with embedded computer systems compatible with PC104 bus and supports multiple I/O configurations, which can be flexibly configured according to specific needs
Main features:
Compatible with PC104 standard, with rich I/O interfaces including serial port, parallel port, Ethernet port, and programmable I/O cables.
Designed with industrial grade components, it has high reliability and a wide operating temperature range.
Supports multiple operating systems, such as Windows CE and Linux, and is easy to use.
Product details and parameters: PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATION PC/104 bus digital input/output module
Processor: Intel 80486SX, with a clock speed of 50 MHz.
Memory: 256 KB RAM, expandable up to 2 MB.
Storage: 1 3.5-inch hard drive and 1 CompactFlash card.
I/O interface: including 2 RS-232 serial ports, 1 parallel port, 1 Ethernet port, and 8 programmable I/O lines.
Expansion: Supports PCMCIA cards.
Power supply:+5 VDC,+12 VDC, and -12 VDC, with a power consumption of approximately 10 W.
Working temperature range: -20 ° C to+60 ° C.
Protection level: IP40.
Dimensions: 167 mm x 104 mm x 23 mm (6.57 in x 4.09 in x 0.91 in).
PC104-DPIO DRL-DPM-BKF BRAD Communications Application Fields:
PC104-DPIO DRL-DPM-BKF can be used for various industrial applications such as industrial control, data acquisition, testing and measurement, image processing, and SCADA system construction.
