BENTLY 3500/42M 176449-02 轴振动模块 成都阳关熹禾

产品细节说明:3500/42M 176449-02 BENTLY 轴振动模块

1. 多通道监测：作为一个可组态的 4 通道监测器模块，它可以同时监测多个参数，提高测试和测量的效率。
2. 输入类型多样：能够接收电涡流传感器、速度、加速度和双探头（速度和位移）输入类型，以及进行相关的信号调节，如滤波和积分。
3. 高精度测量：模块提供高达 24 位的分辨率和低噪声水平，实现精确的模拟信号测量，具有优异的线性度和低漂移性能。
4. 灵活的输入范围：支持多种可调的输入范围，适应不同信号源的幅度要求，增强测量的灵活性和准确性。
5. 微分信号处理：能够进行微分信号处理，提取机壳振动信号，为大型燃气和蒸汽轮机的轴绝对测量提供关键信息。
6. 内置校准功能：具有内置的自动校准功能，确保测量过程中各通道的精度和可靠性，并支持标准校准程序。
7. 高速数据传输：采用 PXIe 总线接口，实现高速数据传输，确保采集的数据能够快速传输到计算机进行处理和分析。

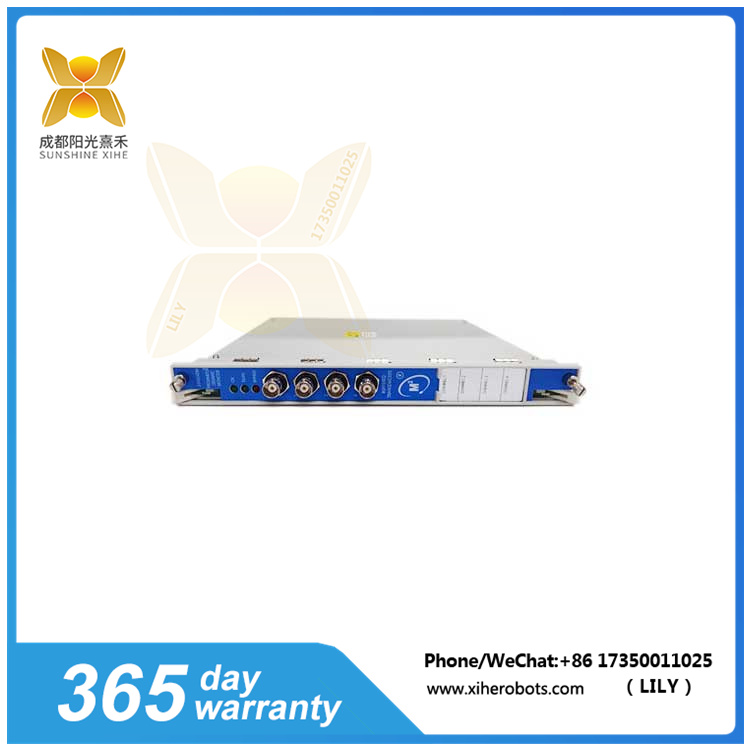

3500/42M 176449-02

产品详情参数:3500/42M 176449-02 BENTLY 轴振动模块

• 输入信号：接受 1 至 4 个近接或地震传感器信号。
• 电源消耗：典型值 7.7 瓦。
• 输入阻抗：标准 I/O，10 kΩ（Proximitor 和加速度输入）。
• 分辨率：0.3662 µA 每位，±0.25% 室温误差，±0.7% 温度范围误差。
• 更新速率：大约 100 毫秒或更少。

3500/42M 176449-02 BENTLY 应用领域:

• 能源行业：在发电厂、电厂和其他能源设施中监测发电机、涡轮机、风力涡轮等旋转设备的轴承状态。
• 石油和天然气行业：在石油钻井、炼油厂和天然气处理设施中监测泵、压缩机等旋转设备的振动水平。
• 化工行业：在化工生产过程中监测搅拌器、离心机、泵等旋转设备的振动情况。

Product Details: 3500/42M 176449-02 BENTLY Shaft Vibration Module
Multi channel monitoring: As a configurable 4-channel monitoring module, it can simultaneously monitor multiple parameters, improving the efficiency of testing and measurement.
Diverse input types: capable of receiving eddy current sensors, velocity, acceleration, and dual probe (velocity and displacement) input types, as well as performing related signal conditioning such as filtering and integration.
High precision measurement: The module provides up to 24 bit resolution and low noise level, enabling accurate analog signal measurement with excellent linearity and low drift performance.
Flexible input range: Supports multiple adjustable input ranges to meet the amplitude requirements of different signal sources, enhancing measurement flexibility and accuracy.
Differential signal processing: capable of performing differential signal processing, extracting casing vibration signals, and providing key information for shaft absolute measurement of large gas and steam turbines.
Built in calibration function: It has a built-in automatic calibration function to ensure the accuracy and reliability of each channel during the measurement process, and supports standard calibration procedures.
High speed data transmission: PXIe bus interface is used to achieve high-speed data transmission, ensuring that the collected data can be quickly transmitted to the computer for processing and analysis.
Product details and parameters: 3500/42M 176449-02 BENTLY shaft vibration module
Input signal: Accept 1 to 4 proximity or seismic sensor signals.
Power consumption: Typical value of 7.7 watts.
Input impedance: Standard I/O, 10 k Ω (Proximitor and Acceleration inputs).
Resolution: 0.3662 µ A per bit, ± 0.25% room temperature error, ± 0.7% temperature range error.
Update rate: Approximately 100 milliseconds or less.
3500/42M 176449-02 BENTLY Application Fields:
Energy industry: Monitor the bearing status of rotating equipment such as generators, turbines, and wind turbines in power plants, power plants, and other energy facilities.
Oil and gas industry: Monitor the vibration level of rotating equipment such as pumps and compressors in oil drilling, refineries, and natural gas processing facilities.
Chemical industry: Monitor the vibration of rotating equipment such as mixers, centrifuges, and pumps during the chemical production process.
