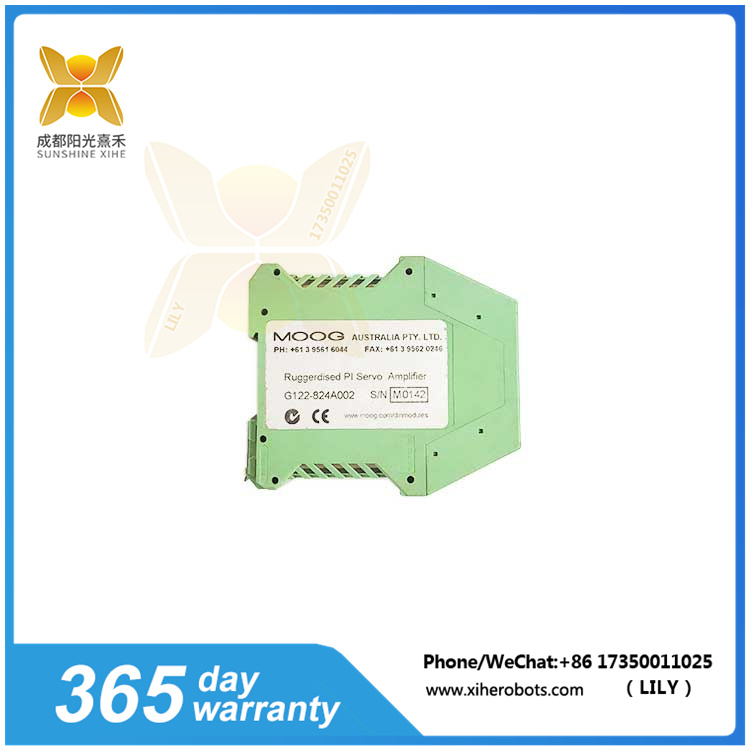

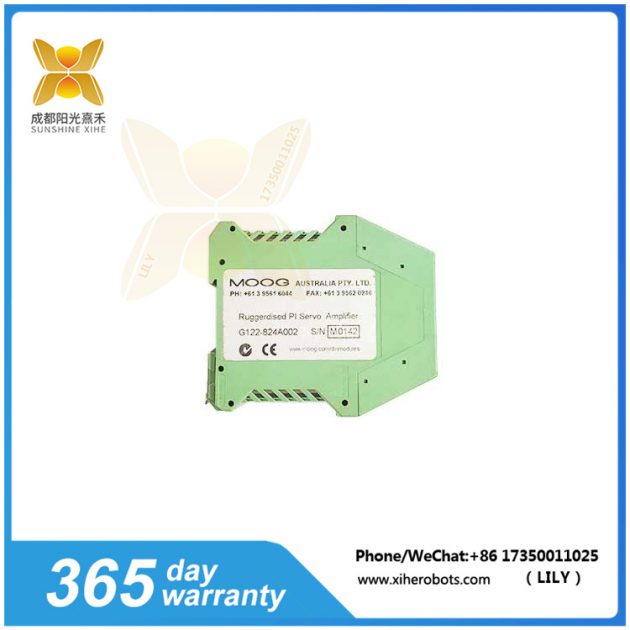

MOOG G122-824A002   伺服放大器 成都阳光熹禾

In stock
  • 输入信号:支持两路单端信号(±10V或4-20 mA)和一路差分信号(±10V)。
  • 输出信号:电流输出为0-2 A,电压输出为±10V。
  • 增益调节:比例增益可调范围为1至1000,积分增益可调范围为0至0.01 s^-1。
  • 滞后:可选择55 ms滞后。
  • 电源要求:24 VDC。
  • 工作温度范围:-40°C至70°C。
  • 外壳防护等级:IP66/NEMA 4X。
  • 尺寸:224 mm x 168 mm x 89 mm。
  • 重量:约2.7 kg。
  • 安装方式:支持DIN导轨或墙壁安装。
  • 电话/Phone:17350011025 (微信同号)
  • 邮箱/Email:1713556114@qq.com
  • QQ:1713556114

产品细节说明:G122-824A002   MOOG 伺服放大器

  • 宽输入电压范围:能够适应100-240 VAC的电压输入。
  • 连续输出电流:具有24 A的连续输出电流能力。
  • 峰值输出电流:能够提供高达48 A的峰值输出电流。
  • 可编程增益和积分时间:用户可以根据应用需求调整增益和积分时间。
  • 过流、过压和欠压保护:内置的保护功能确保系统的安全运行。
  • 高功率密度和低噪声:设计用于减少干扰,提供更清晰的信号。
  • 速度和位置环路闭环控制:提供精确的速度和位置控制。
  • 故障保护:在出现异常情况时能够保护系统不受损害。

G122-824A002

产品详情参数:G122-824A002   MOOG 伺服放大器

  • 输入信号:支持两路单端信号(±10V或4-20 mA)和一路差分信号(±10V)。
  • 输出信号:电流输出为0-2 A,电压输出为±10V。
  • 增益调节:比例增益可调范围为1至1000,积分增益可调范围为0至0.01 s^-1。
  • 滞后:可选择55 ms滞后。
  • 电源要求:24 VDC。
  • 工作温度范围:-40°C至70°C。
  • 外壳防护等级:IP66/NEMA 4X。
  • 尺寸:224 mm x 168 mm x 89 mm。
  • 重量:约2.7 kg。
  • 安装方式:支持DIN导轨或墙壁安装。

G122-824A002   MOOG 应用领域:

MOOG G122-824A002是一种高性能的伺服放大器,广泛应用于工业自动化、机器人、数控机床和其他需要精确运动控制的领域。这款伺服放大器以其高放大和功率输出能力、广泛的伺服电机兼容性、精密运动控制的先进控制算法以及坚固的结构而著称。它能够提供稳定的电流和精确的位置控制,实现高效的加工过程和生产效率。

Product details: G122-824A002 MOOG servo amplifier
Wide input voltage range: able to adapt to voltage inputs of 100-240 VAC.
Continuous output current: With a continuous output current capability of 24 A.
Peak output current: capable of providing a peak output current of up to 48 A.
Programmable gain and integration time: Users can adjust the gain and integration time according to application requirements.
Overcurrent, overvoltage, and undervoltage protection: The built-in protection function ensures the safe operation of the system.
High power density and low noise: designed to reduce interference and provide clearer signals.
Speed and position closed-loop control: providing precise speed and position control.
Fault protection: It can protect the system from damage in case of abnormal situations.
Product details and parameters: G122-824A002 MOOG servo amplifier
Input signal: Supports two single ended signals (± 10V or 4-20 mA) and one differential signal (± 10V).
Output signal: Current output is 0-2 A, voltage output is ± 10V.
Gain adjustment: The adjustable range of proportional gain is 1 to 1000, and the adjustable range of integral gain is 0 to 0.01 s ^ -1.
Lag: 55 ms lag can be selected.
Power requirement: 24 VDC.
Working temperature range: -40 ° C to 70 ° C.
Shell protection level: IP66/NEMA 4X.
Dimensions: 224 mm x 168 mm x 89 mm.
Weight: Approximately 2.7 kg.
Installation method: Supports DIN rail or wall mounting.
G122-824A002 MOOG application areas:

MOOG G122-824A002 is a high-performance servo amplifier widely used in industrial automation, robotics, CNC machine tools, and other fields that require precise motion control. This servo amplifier is renowned for its high amplification and power output capabilities, extensive compatibility with servo motors, advanced control algorithms for precision motion control, and robust structure. It can provide stable current and precise position control, achieving efficient machining processes and production efficiency.
